Danfoss HRB Valve User Guide
Instructions

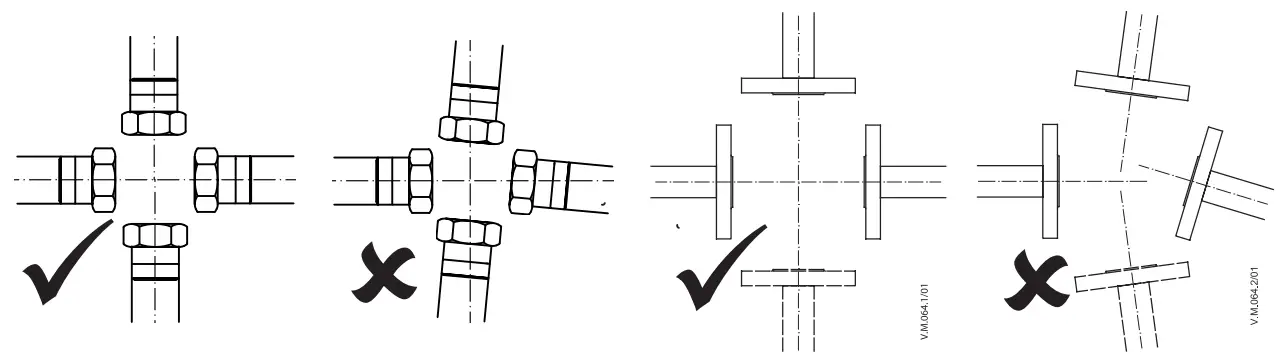

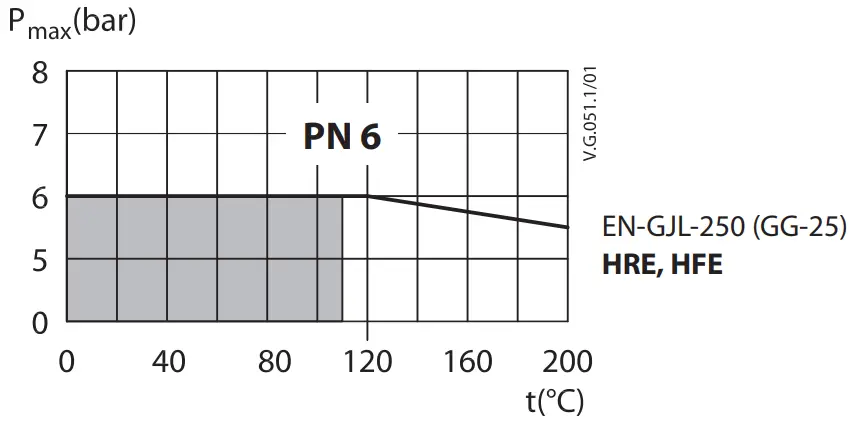

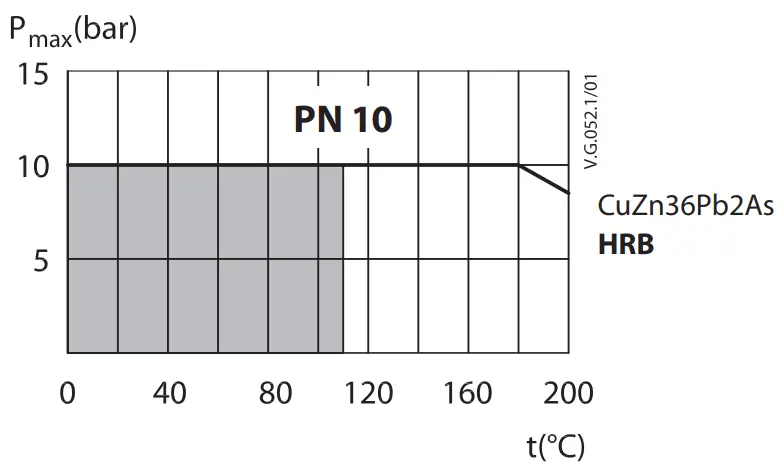

HRB, HRE

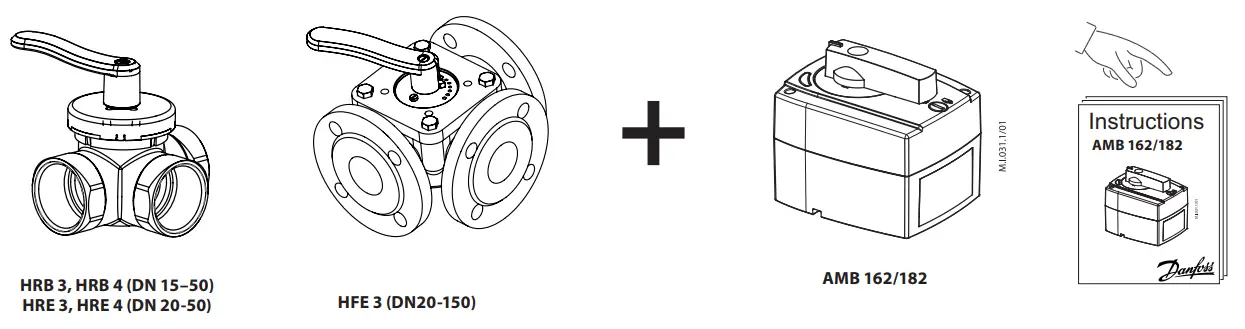

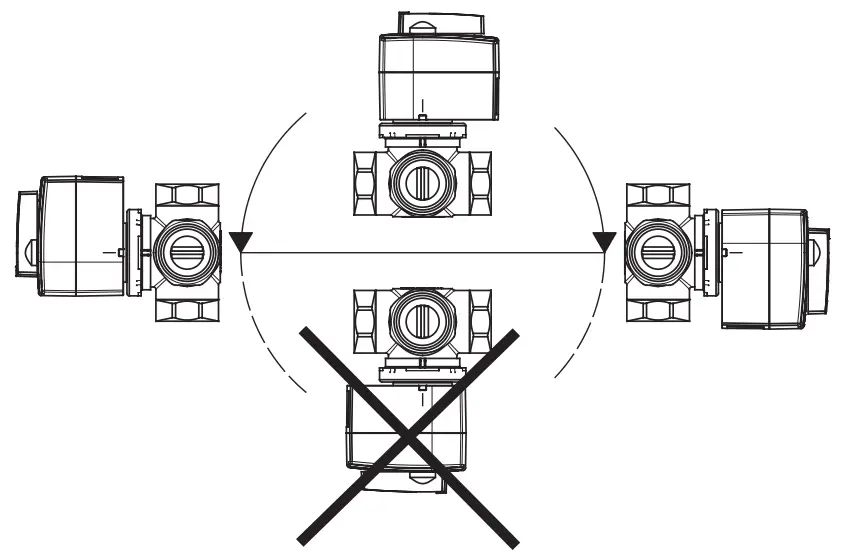

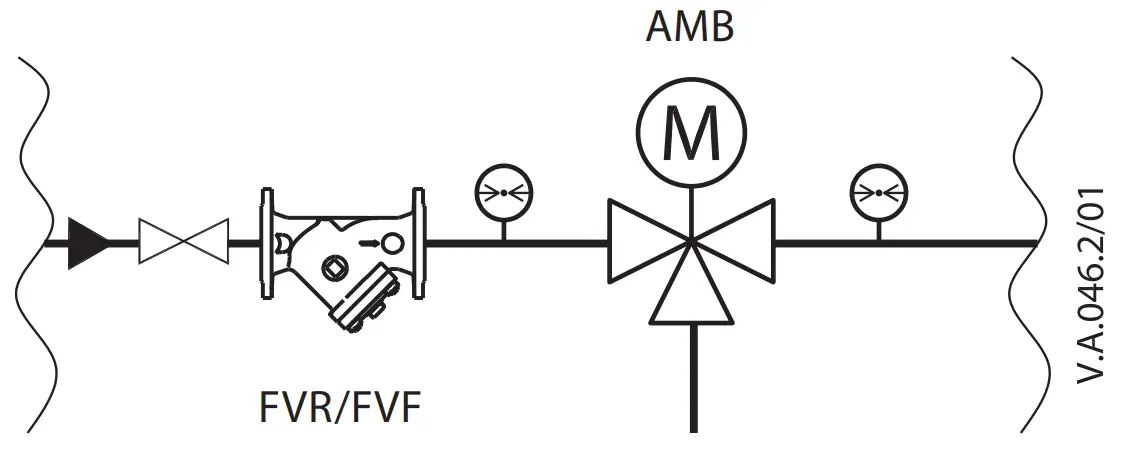

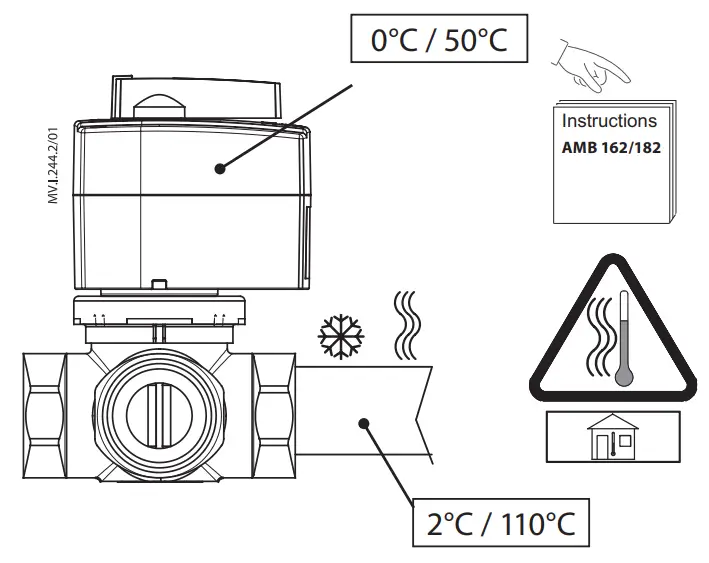

HRB, HRE + AMB 162/182

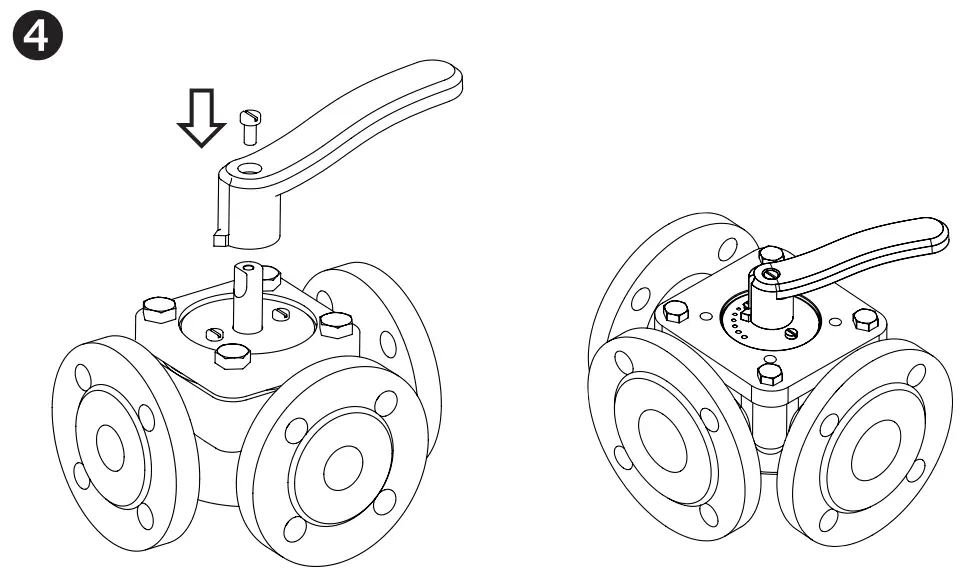

HFE
HFE + AMB 162/182

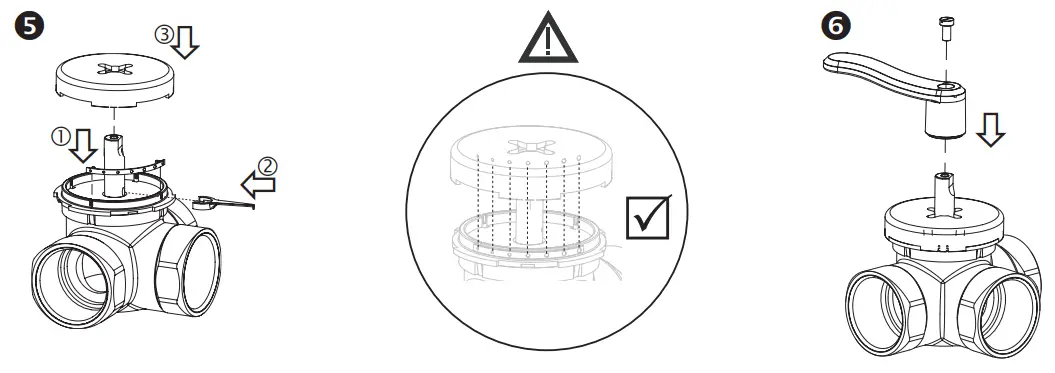

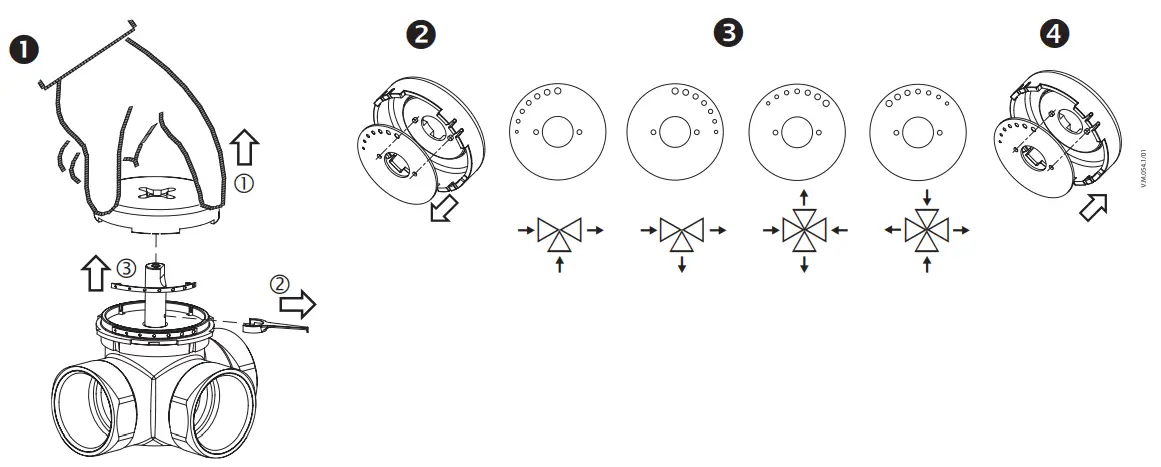

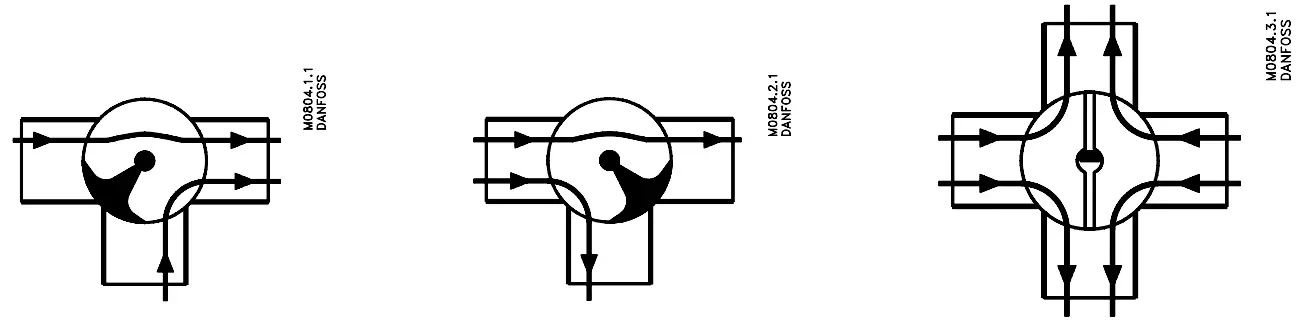

HRB 3, HRE 3
HRB 4, HRE 4
HRB 3, HRB 4

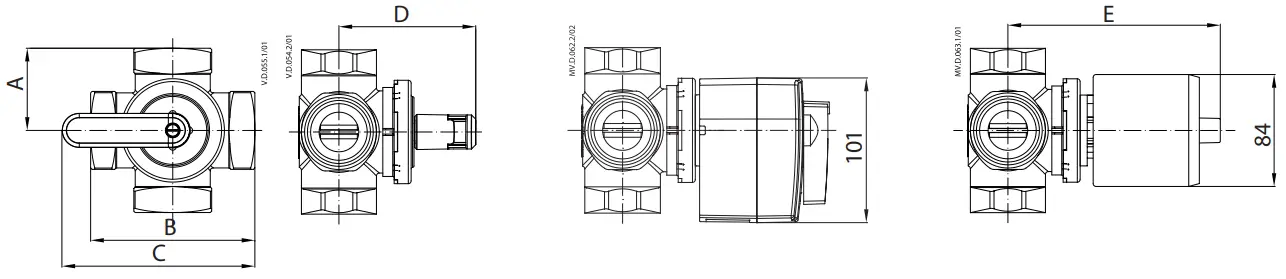

| DN | A | B | C | D | E | Connection | Actuator |
| mm | |||||||
| 15 | 36 | 72 | 114 | 88 | 143 | Rp 1/2” | AMB 162 AMB 182 |
| 20 | 36 | 72 | 114 | 88 | 143 | Rp 3/4″ | |
| 25 | 41 | 82 | 119 | 92 | 147 | Rp 1″ | |
| 32 | 47 | 94 | 125 | 97 | 152 | Rp 1 1/4″ | |
| 40 | 58 | 116 | 136 | 97 | 152 | Rp 1 1/2″ | |
| 50 | 62.5 | 125 | 140.5 | 103 | 158 | Rp 2″ | |
HRE 3, HRE 4
| DN | A | B | C | D | E | Connection | Actuator |
| mm | |||||||
| 20 | 52.5 | 105 | 130.5 | 88 | 140 | Rp 3/4″ | AMB 162 AMB 182 |
| 25 | 54 | 108 | 132 | 92 | 144 | Rp 1″ | |
| 32 | 57.5 | 115 | 135.5 | 102 | 154 | Rp 1 1/4″ | |
| 40 | 60 | 120 | 138 | 102 | 154 | Rp 1 1/2″ | |
| 50 | 78 | 156 | 156 | 108 | 160 | Rp 2″ | |

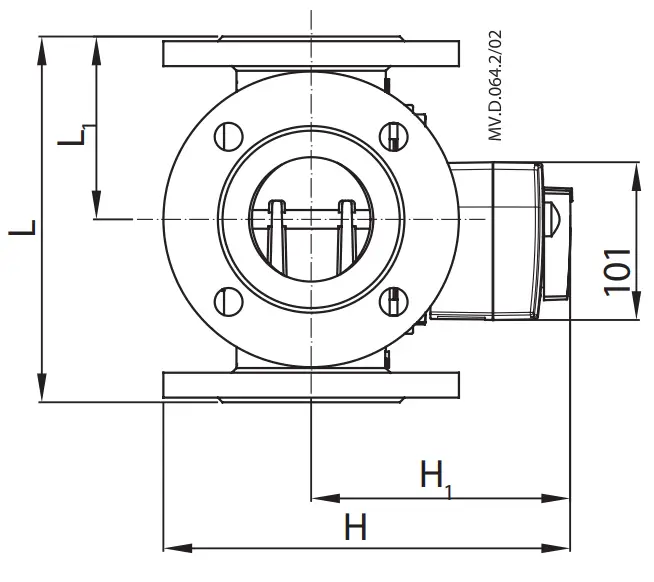

HFE 3
HFE 3

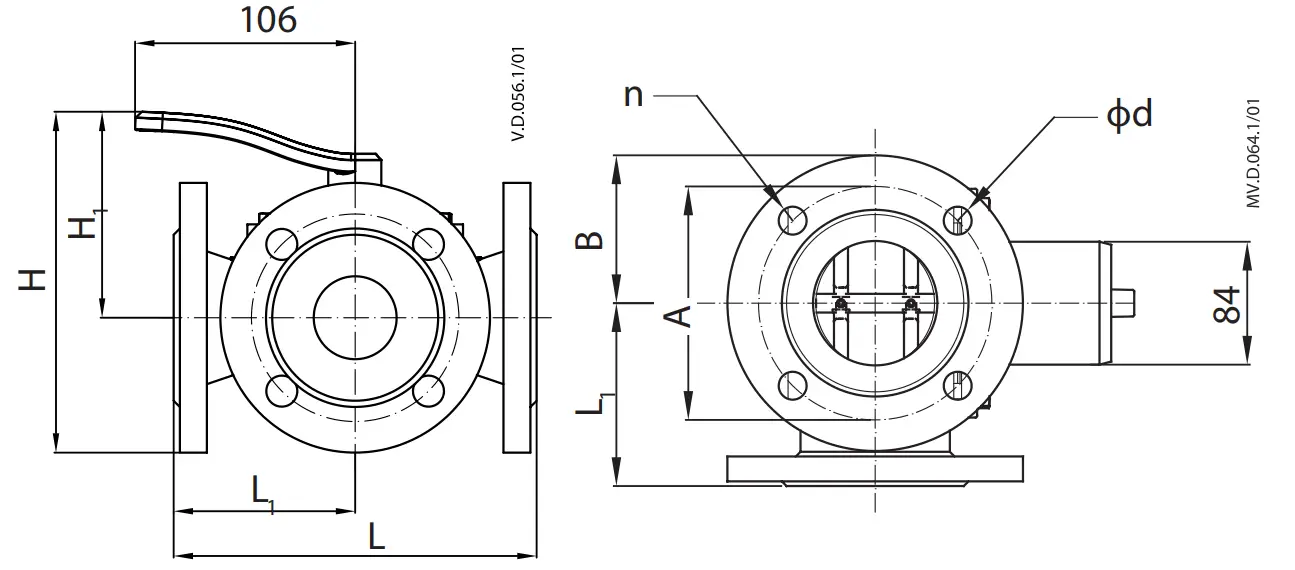

| DN | H | H1 | L | L1 | B | DC | фd | n | Actuator |
| mm | |||||||||
| 20 | 131 | 140 | 140 | 70 | 45 | 65 | 11,5 | 4 | AMB 162 AMB 182 |
| 25 | 136 | 140 | 150 | 75 | 50 | 75 | 11,5 | 4 | |
| 32 | 152 | 146 | 160 | 80 | 60 | 90 | 15 | 4 | |
| 40 | 157 | 146 | 175 | 88 | 65 | 100 | 15 | 4 | |
| 50 | 171 | 155 | 195 | 98 | 70 | 110 | 15 | 4 | |
| 65 | 181 | 155 | 200 | 100 | 80 | 130 | 15 | 4 | AMB 182 |
| 80 | 208 | 167 | 235 | 118 | 95 | 150 | 18 | 4 | |
| 100 | 228 | 177 | 265 | 133 | 105 | 170 | 18 | 4 | |
| 125 | 253 | 187 | 300 | 150 | 120 | 200 | 18 | 8 | |
| 150 | 271 | 192 | 350 | 175 | 133 | 225 | 18 | 8 | |
