Operating Guide
ASV-D DN 15-50

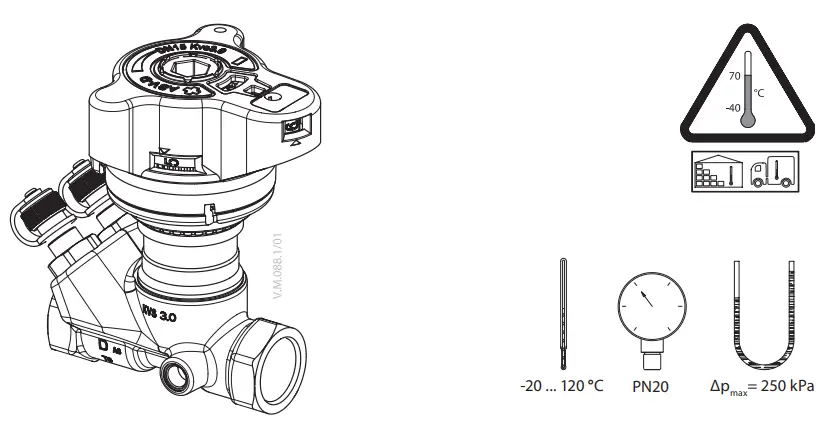

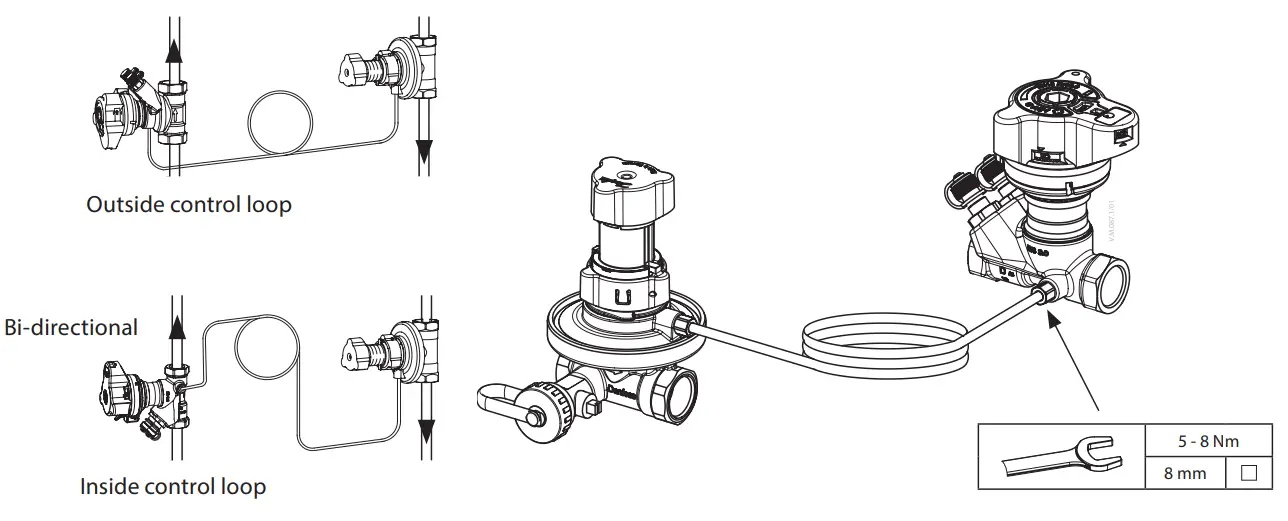

Installation

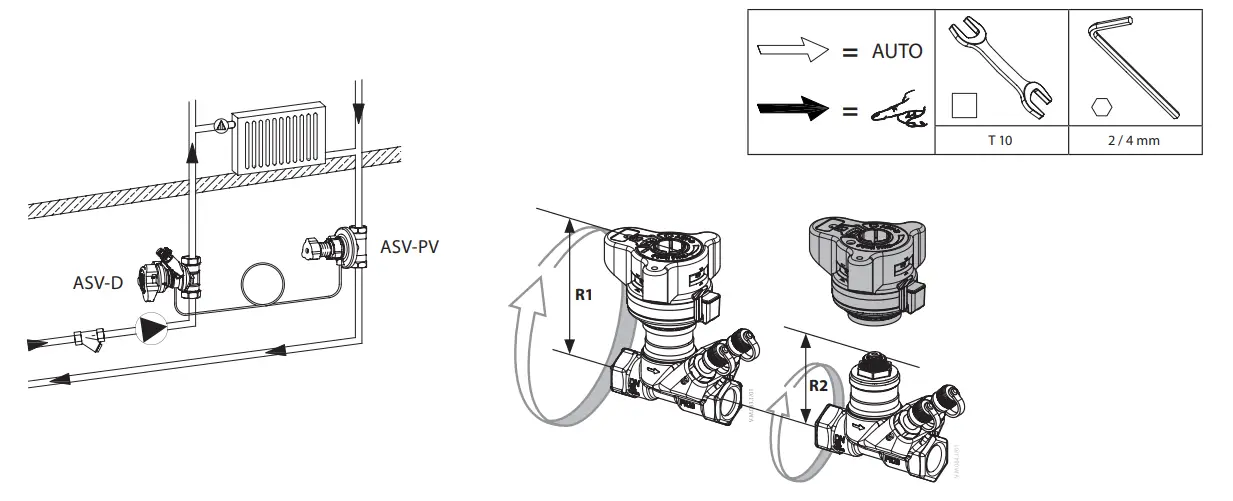

| DN | R1/R2 (mm) | Int. thread |
| 15 | 92/57 | Rp 1/2 |
| 20 | 95/60 | Rp 3/4 |
| 25 | 98/63 | Rp 1 |
| 32 | 121/86 | Rp 11/4 |
| 40 | 125/90 | Rp 11/2 |
| 50 | 129/94 | Rp 2 |
Installation direction

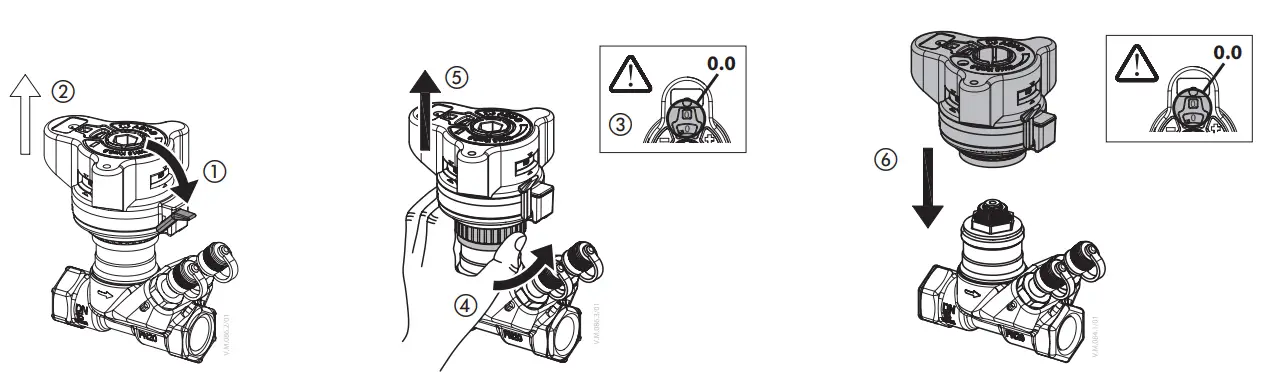

Remove handle

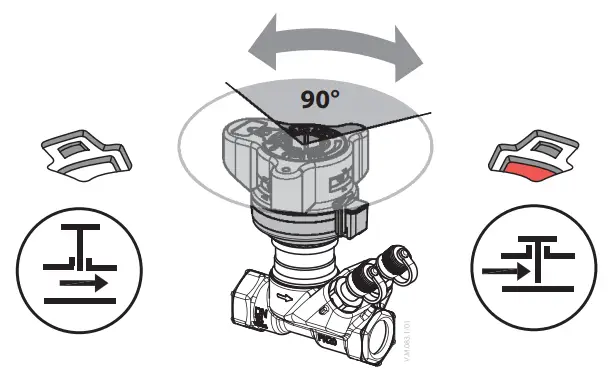

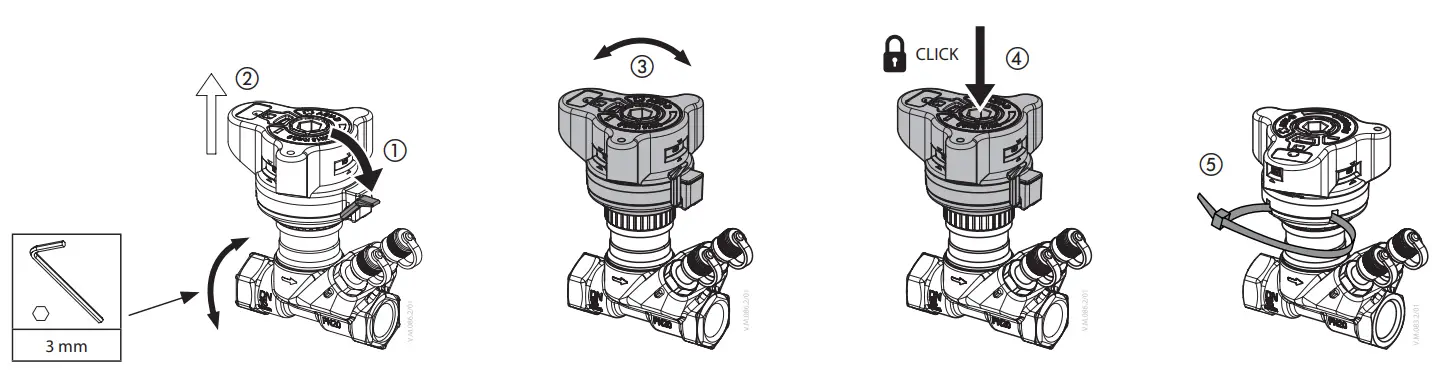

Setting

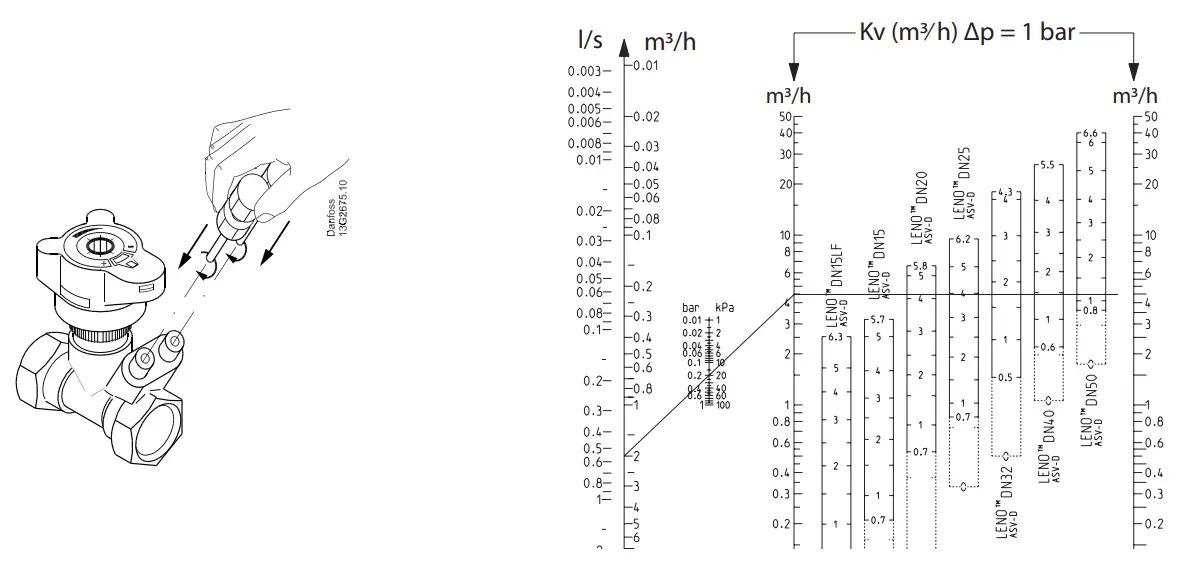

Measuring
