MATRIX ORBITAL HTT50 TFT Display
Revision History
| Revision | Date | Description | Author |

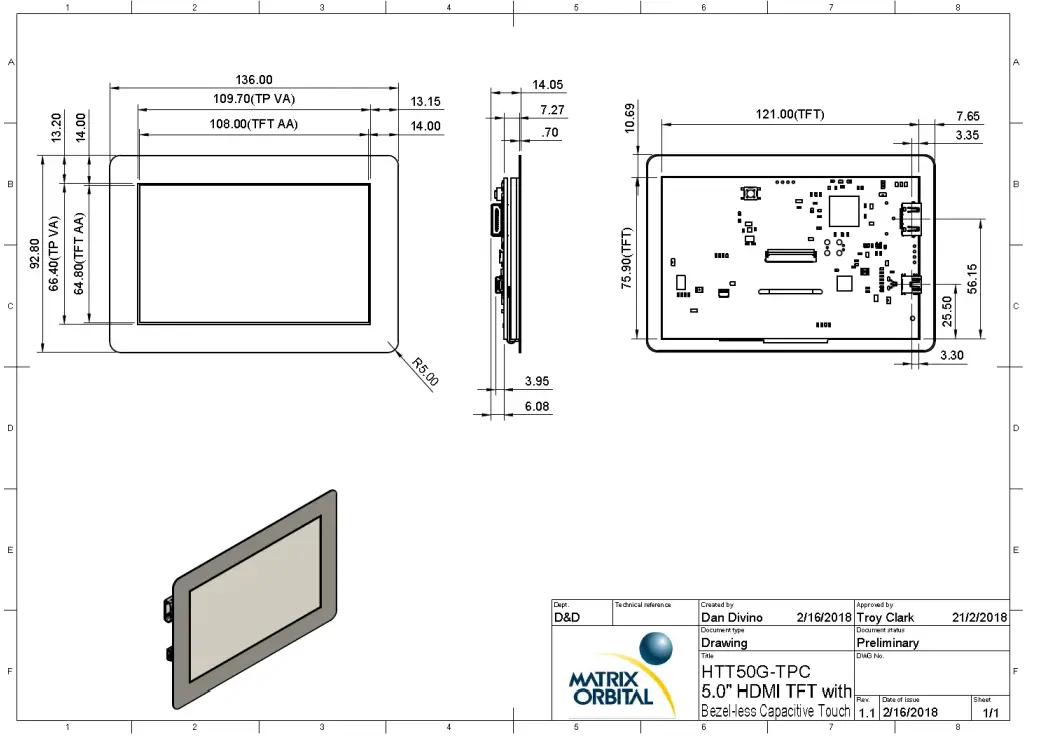

| 1.1 | February 2, 2018 | Added -TPC variant drawing | Divino |
HTT50 Technical Specifications

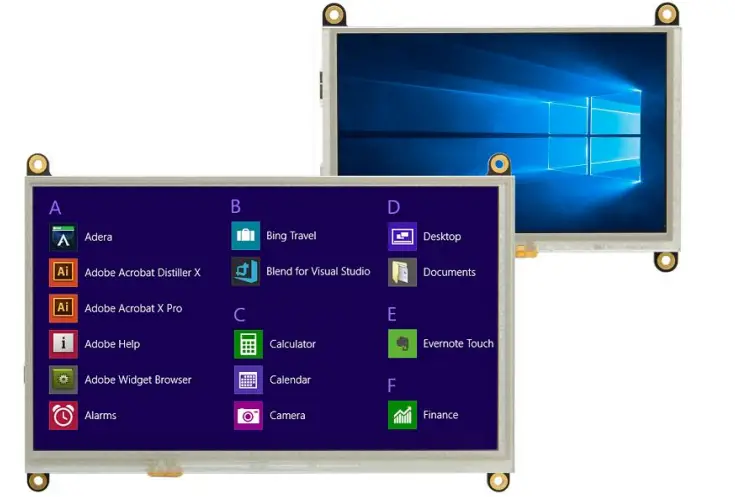

The HTT50 is a 5.0” TFT display with an HDMI interface. The 800×480 resolution offers crisp images, and video feedback, with 24-bit Full colour capabilities. The HTT can be configured with resistive, capacitive, or non-touch panels, making this display suitable for any application.

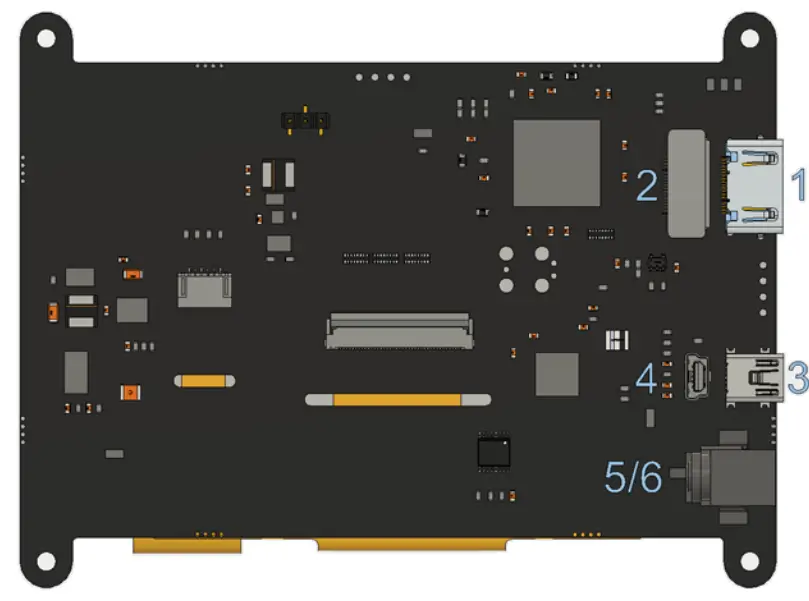

Available Headers
Table 1: HTT50A Headers and Mates
| # | Header | Standard Mate | Population |
| 1 | HDMI Port, Horizontal, Type A Standard | Type A Standard HDMI Cable | -H5 |
| 2 | HDMI Port, Vertical, Type A Standard | Type A Standard HDMI Cable | -H6 |
| 3 | Mini USB, Horizontal: Touch & Power | Mini-B USB Cable | -H5 |
| 4 | Mini USB, Vertical: Touch & Power | Mini-B USB Cable | -H6 |
| 5 | Barrel Jack: 2.1mm Center Positive | Power Adaptor | Optional |
| 6 | External Power, 2-1445057-2 | Micro MATE-N-LOCK 1445022-2 | -VPT model |

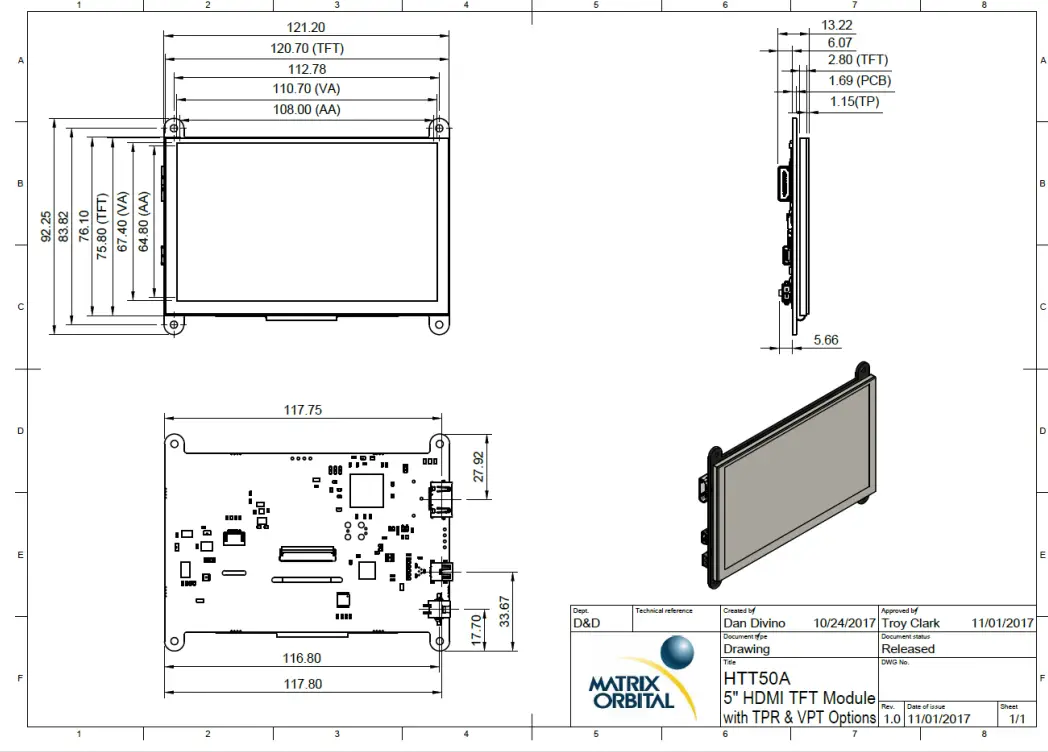

Dimensional Drawings
Characteristics
Optical
| Module Size | 121.20 x 92.25 x 12.07 | mm |
| Viewing Area | 110.70 x 67.40 | mm |
| Active Area | 108.00 x 64.80 | mm |
| Pixel Pattern | 800 x 480 x 24bit RGB | |
| Pixel Pitch | 0.135 x 0.135 | mm |
| Luminance | 380 | cd/m2 |
| Viewing Angle | 70° Left, Right, Up 50° Down | |
| Contrast Ratio | 500:1 | |
| Backlight Half-Life | 20,000 hours | |
Power
| Parameter | Min | Typ | Max | Unit | Remarks |
| Logic | – | 275 | – | mA | Backlight Off |
| Backlight | 0 | – | 225 | mA | Off, Mid, Max |
| Parameter | Min | Typ | Max | Unit | Remarks |
| Supply Voltage | 4.75 | 5.0 | 5.25 | V | Standard Voltage (V5) |
| 5.0 | 12.0 | 35.0 | V | Wide Voltage (VPT) |
Environmental
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Operating Relative Humidity* | 90% (T < 60°C) |
Note: No condensation at any temperature
Options
| HTT | 50 | A | –TPR | –BLM | –B0 | –H5 | –CH | –V5 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| # | Designator | Options |
| 1 | Product Type | HTT: Graphic TFT Display |
| 2 | Display Size | 50: 5.0” |
| 3 | Screen Type | A: A Type G: G-Type |
| 4 | Touch | -TPN: No touch panel -TPR: Resistive touch panel -TPC: Capacitive touch panel -CTB: Bezel-less capacitive touch panel |
| 5 | Backlight | -BLM: 300 Nit < Brightness < 600 Nit -BLH: 600 Nit < Brightness < 1000 Nit -BLD: Brightness > 1000 Nit |
| 6 | Bezel | -B0: None |
| 7 | Headers | -H5: Horizontal Connectors -H6: Vertical Connectors |
| 8 | Protocol | -CH: HDMI interface |
| 9 | Voltage | -V5: 5.0V Input Voltage -VPT: Regulated 5V – 35V Input Voltage |
Power Options
| Option | Voltage Input |
| V5 | USB Header |
| VPT | Barrel Jack/External Power Header |
Recommended Accessories
HDMI Cable
- Part Number:
- HDMI3FT or HDMI6FT
- Description:
- 3ft (1m) or 6ft (2m) HDMI Cable
USB Cable
- Part Number:
- EXTMUSB3FT
- Description:
- 3ft (1m) Mini-B USB Cable
Power Adaptor
- Part Number:
- PWR-ACDC-5V2A
- Description:
- 9ft (2.7m) AC to DC power adapter with 2.1mm center positive barrel jack.
- Input Voltage: 100-240V AC
- Output Voltage: 5V DC @ 2A
- AC Plugs Included: North American (NEMA), Europlug (Type C), UK (Type G), Australia/China/New Zealand/Argentina (Type I)
