MATRIX ORBITAL HTT70 7.0 Inch TFT Display with HDMI Interface
For all variants of the HTT70
Hardware Manual Revision 1.1
Revision History
| Revision | Date | Description | Author |

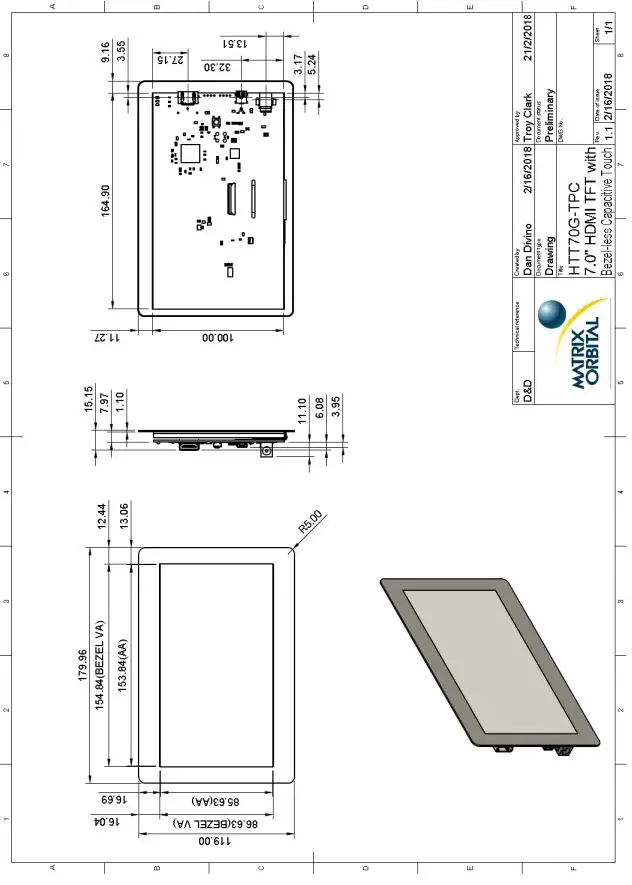

| 1.1 | February 22, 2018 | Added -TPC variant drawing | Divino |
HTT70 Technical Specifications

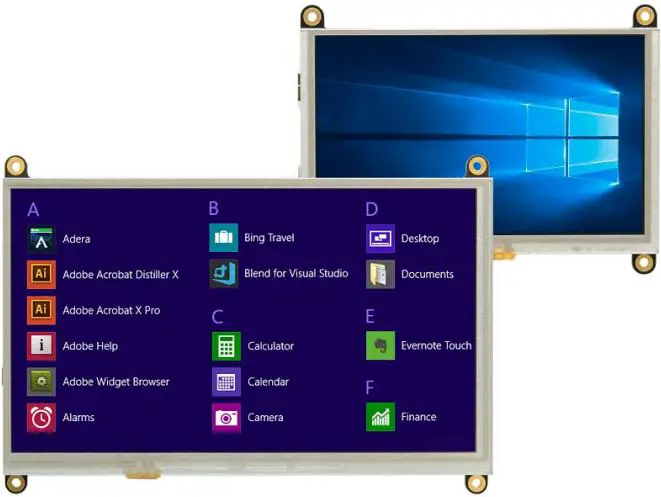

The HTT70 is a 7.0” TFT display with an HDMI interface. The 800×480 resolution offers crisp images, and video feedback, with 24-bit Full colour capabilities. The HTT can be configured with resistive, capacitive, or non-touch panels, making this display suitable for any application.
Available Headers

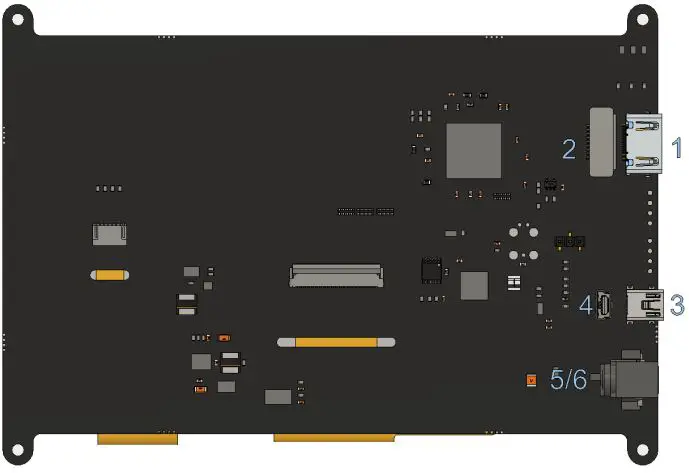

Figure 1: HTT70A Headers
Table 1: HTT70A Headers and Mates
| # | Header | Standard Mate | Population |
| 1 | HDMI Port, Horizontal, Type A Standard | Type A Standard HDMI Cable | -H5 |
| 2 | HDMI Port, Vertical, Type A Standard | Type A Standard HDMI Cable | -H6 |
| 3 | Mini USB, Horizontal: Touch & Power | Mini-B USB Cable | -H5 |
| 4 | Mini USB, Vertical: Touch & Power | Mini-B USB Cable | -H6 |
| 5 | Barrel Jack: 2.1mm Center Positive | Power Adaptor | -H6 |
| 6 | External Power, 2-1445057-2 | Micro MATE-N-LOCK 1445022-2 | -VPT model |

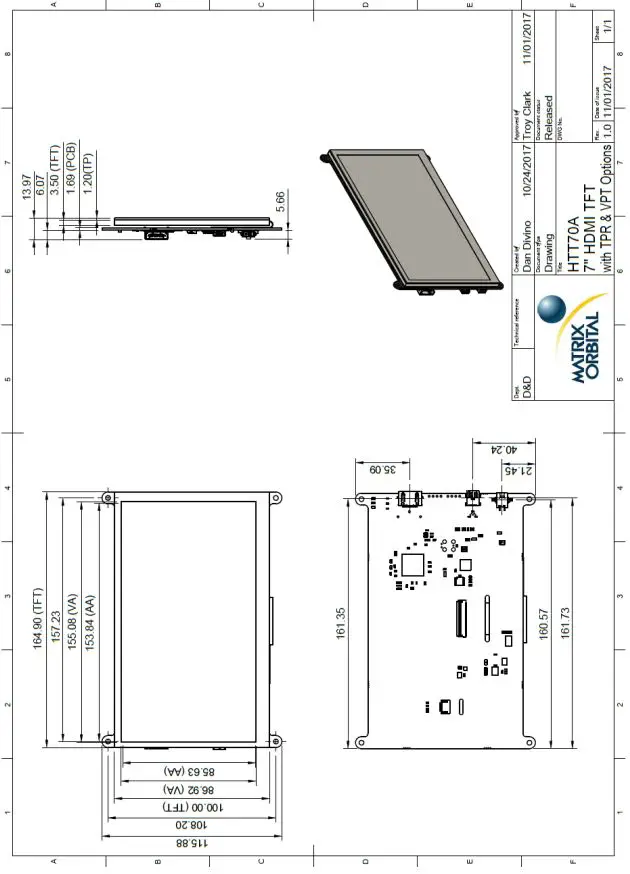

Dimensional Drawings
Characteristics
CharacteristicsOptical
Table 2: HTT70 Optical Characteristics
| Module Size | 164.90 x 115.88 x 12.77 | mm |
| Viewing Area | 157.00 x 89.10 | mm |
| Active Area | 153.84 x 85.63 | mm |
| Pixel Pattern | 800 x 480 x 24bit RGB | |
| Pixel Pitch Luminance | 0.1923 x 0.1784 520 | mm |
| cd/m2 | ||
| Viewing Angle | 70° Left, Right, Up 60° Down | |
| Contrast Ratio | 500:1 | |
| Backlight Half-Life | 20,000 hours | |
Power
Table 3: HTT70 Typical Power Characteristics
| Parameter | Min | Typ | Max | Unit | Remarks |
| Logic | – | 375 | – | mA | Backlight Off |
| Backlight | 0 | – | 465 | mA | Off, Mid, Max |
Table 4: HTT70 Maximum Power Characteristics
| Parameter | Min | Typ | Max | Unit | Remarks |
| Supply Voltage | 4.75 | 5.0 | 5.25 | V | Standard Voltage (V5) |
| 5.0 | 12.0 | 35.0 | V | Wide Voltage (VPT) |
Environmental
Table 5: HTT70 Environmental Characteristics
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Operating Relative Humidity* | 90% (T < 60°C) |
*Note: No condensation at any temperature
Options
Table 6: Part Numbering Scheme
| HTT | 70 | A | -TPR | -BLM | -B0 | -H5 | -CH | -V5 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
Table 7: Display Options
| # | Designator | Options |
| 1 | Product Type | HTT: Graphic TFT Display |
| 2 | Display Size | 70: 7.0″ |
| 3 | Screen Type | A: A Type G: G Type |
| 4 | Touch | -TPN: No touch panel -TPR: Resistive touch panel -TPC: Capacitive touch panel -CTB: Bezel-less capacitive touch panel |
| 5 | Backlight | -BLM: 300 Nit < Brightness < 600 Nit -BLH: 600 Nit < Brightness < 1000 Nit -BLD: Brightness > 1000 Nit |
| 6 | Bezel | -B0: None |
| 7 | Headers | -H5: Horizontal Connectors -H6: Vertical Connectors |
| 8 | Protocol | -CH: HDMI interface |
| 9 | Voltage | -V5: 5.0V Input Voltage -VPT: Regulated 5V – 35V Input Voltage |
Power Options
Table 8: Powering Options
| Option | Voltage Input |
| V5 | USB Header |
| VPT | Barrel Jack/External Power Header |
Recommended Accessories
HDMI Cable
Part Number:
HDMI3FT or HDMI6FT
Description:
3ft (1m) or 6ft (2m) HDMI Cable
USB Cable
Part Number:
EXTMUSB3FT
Description:
3ft (1m) Mini-B USB Cable
Power Adaptor
Part Number:
PWR-ACDC-5V2A
Description:
9ft (2.7m) AC to DC power adapter with 2.1mm center positive barrel jack.
Input Voltage: 100-240V AC
Output Voltage: 5V DC @ 2A
AC Plugs Included: North American (NEMA), Europlug (Type C), UK (Type G), Australia/China/New Zealand/Argentina (Type I)
