Tstudy TD-801 Dot Matrix Digital Pen
Dot-matrix digital pen
TD801

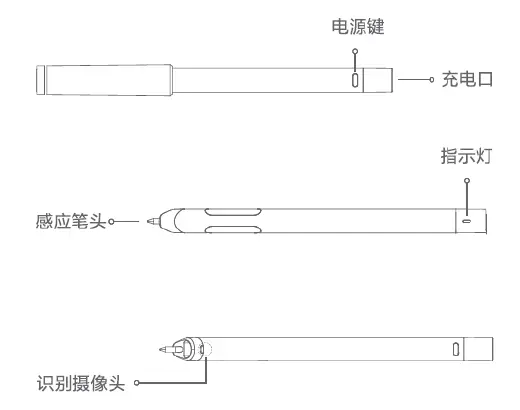

Press the Dot matrix pen power button or press the induction pen tip, the pointer end indicator lights up, and the Dot matrix pen enters the power on state. If the indicator light does not go on or the yellow light flashes, please charge the D ot matrix pen first.
After the battery is fully charged (about 2 hours), it will be turned on for use.
Specification
| Weight | 24.5g | Dimension | 154.2*11.2*11.2 （mm） |
| Input | 3.7V / 250mAH by battery | Standby Time | 50days |
| Charging Time | <2Hours | Working Time | >6 Hours |
| Wireless | BT 4.2 | Transmission | 15meters |
| distance | |||
| Dimension of Pen Refill | 67.2mm*2.3mm | System | Windows7 and above |
Indicator state
| Display | State |
| constantly light | Waiting for BT connecting or finishing charging |
| constantly blue | Connecting |
| flash yellow | Low power wanning |
| constantly yellow | Charging |
| constantly red | abnormal state |
| constantly red | Memory full |
FCC NOTICE
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
