User Guide

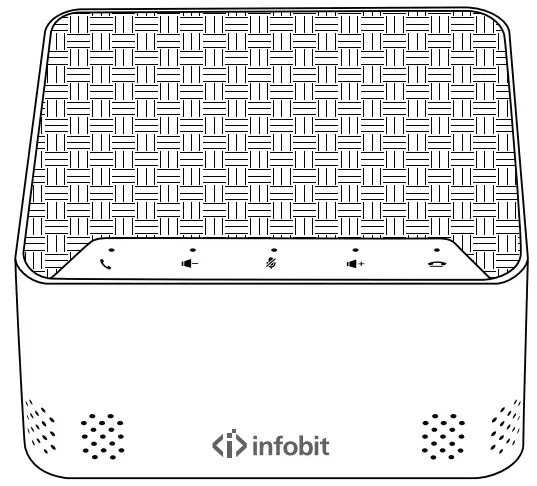

Conference Speakerphone

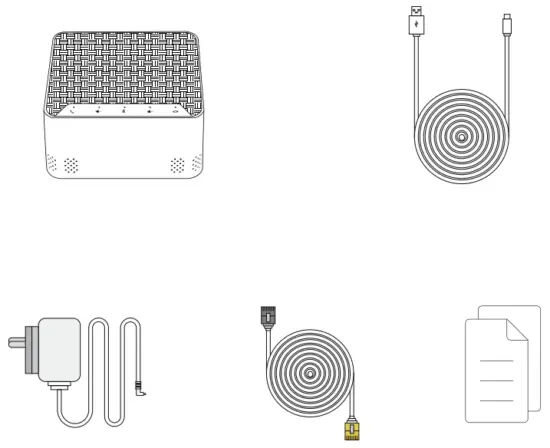

Package Contents
*The type of power plug varies by region.

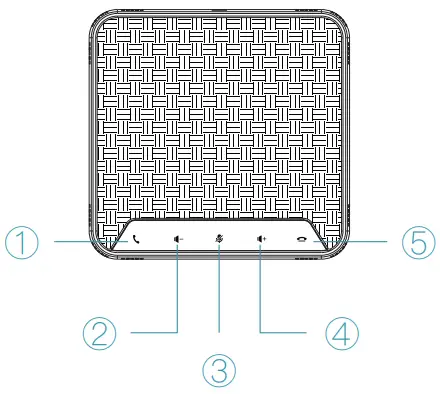

Speakerphone Overview
①Answer Call Microphone
②Volume Down
③Mute
*The Answer call button and End/Reject call button are meeting platforms dependent.

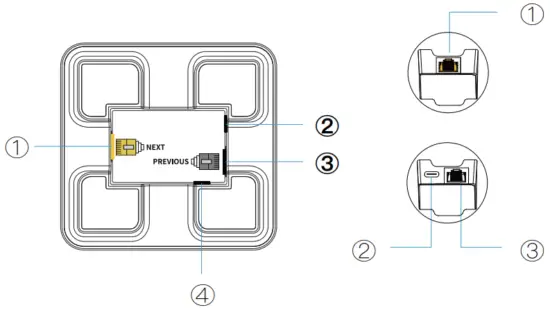

Bottom View
①LAN Output Port (NEXT)
②USB Type-C Port
③LAN Input Port (PREVIOUS)
④DC Power Input Jack

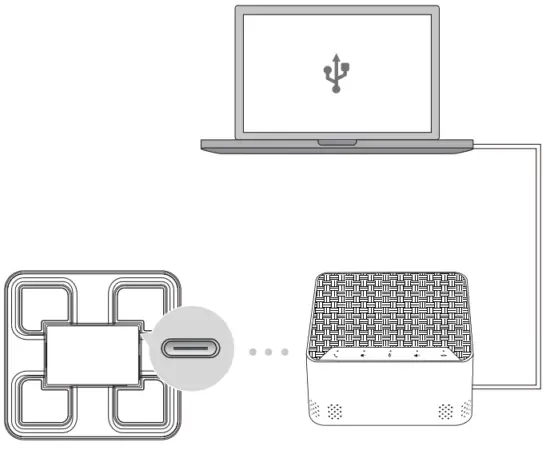

Single Device Use

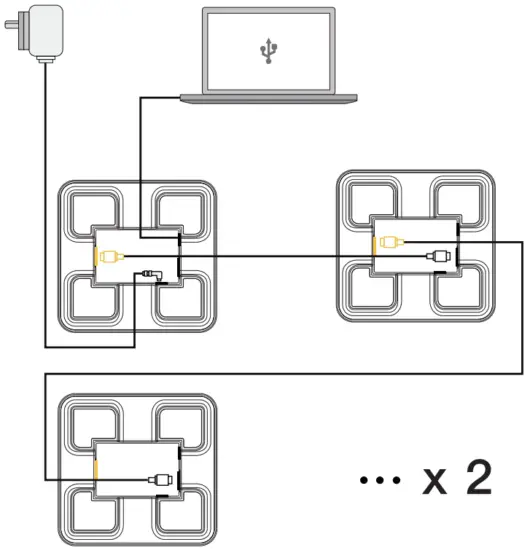

Daisy Chain Mode
Warning
- In cascading mode,please use the provided cable to charge the device.
- Unauthorized dismantlement and strong impact may damage the device.
- Keep the device away from high-temperature environments, heat sources, strong magnetic field, or electric fields.
- Please be aware constant high-volume sounds can be harmful to human hearing.
Specification
| Dimensions | 120mm(L)*120mm(W)*64mm(H) |
| External Power Supply | DC 48V/0.6A or USB 5V/0.5A |
| Speaker Effective Frequency Range | 217Hz-20kHz |
| Rated Output | 4Ω/3W |
| Connection Mode | USB2.0 Type-C |
| Microphone Type | 8-element Directional Microphone Array |
