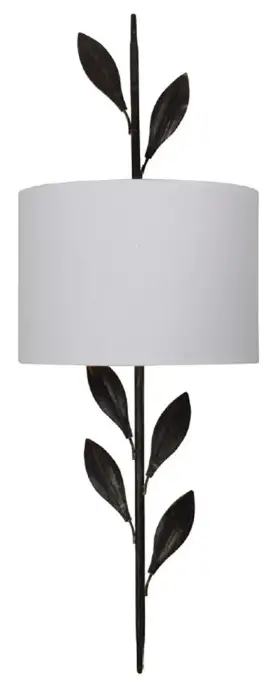

CRYSTORAMA 501-EB Two Light Wall Mount
Product Information
- Model: #501-EB

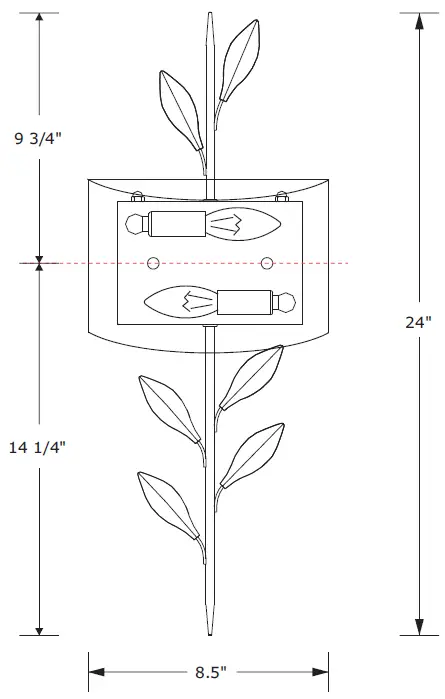

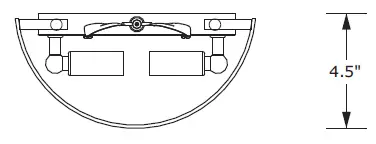

- Dimensions: 9 3/4″ x 14 1/4″ x 8.5″
- Recommended Bulb: 2 Candelabra Base Bulbs with 40 Watts, Max 60 Watts (LED bulbs recommended for extended use)
- Fixture Rating: Dry Rated
- Parts Included: (1) Mounting Hardware, (1) White Cloth Shade, (4) Hex Nut, (4) Ball Nuts #XRE501EBBANUT B
Product Usage Instructions
- Before installing, ensure that all parts and components are present.
- Attach the backplate onto the outlet box using the provided ball nuts.
- Install the recommended bulbs (not included).
- Attach the shade onto the backplate using the provided ball nuts.
WARNING:
- Electrical Danger
- Turn Power Off
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 2 -Candelabra Base Bulb 40 Watts Recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DRY RATED

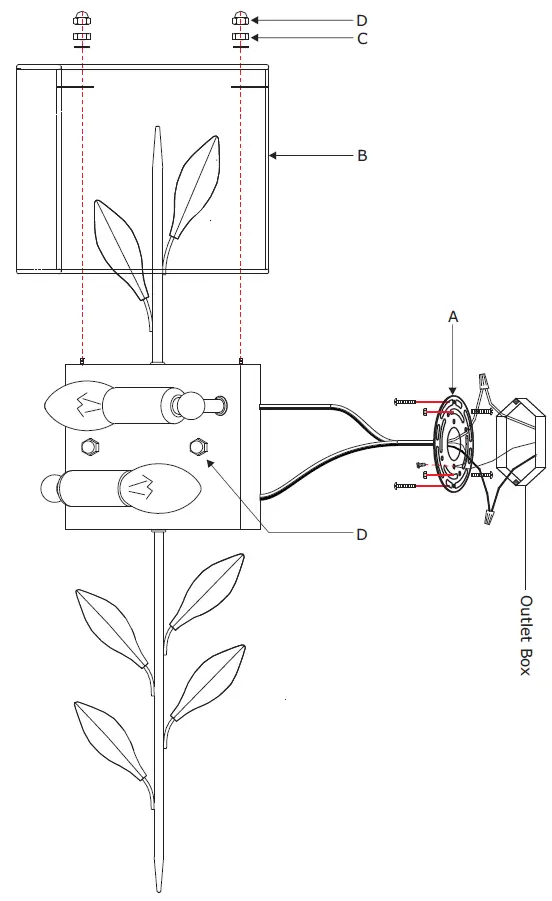

How to install
- Do a complete inventory of all parts and components before you start installing.
- Install the backplate onto the outlet box and secure it with the ball nuts.
- Insert recommended bulb (not included).
- Attach the shade onto the backplate and secure with ball nuts.
PART NUMBER
- A. (1) – Mounting Hardware
- B. (1) – White Cloth Shade
- C. (4) – Hex Nut
- D. (4) – Ball Nuts #XRE501EBBANUT
WARNING:
This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.
