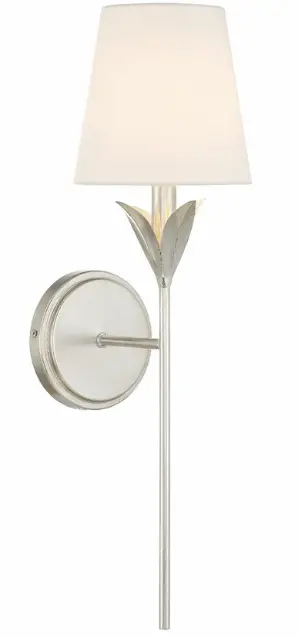

CRYSTORAMA 531-GA Broche One Light Wall Mount
Product Information
- Product Model Number: 531-GA
- Brand: Crystorama
- Bulb Type: Candelabra Base Bulb
- Recommended Bulb Wattage: 40 Watts
- Maximum Bulb Wattage: 60 Watts
- Damp Rating: Yes
- Parts Included:
- Mounting Hardware
- Backplate (W4.9, H0.9) #XRE531GABKP4.9IN
- Candle Sleeve (W0.87,H3.9) #XRE531GACDL0.87IN
- White Fabric Shade #XRE531SHA6IN
- Screws (2)
Product Usage Instructions
- Install the mounting plate onto the outlet box.
- Place the backplate over the mounting plate and secure with the screws.
- Place the candle sleeve over the socket and slide the fabric shade over the candle sleeve.
- Install the bulb onto the socket.
- Use a Candelabra Base Bulb with recommended wattage of 40 Watts. The maximum wattage allowed is 60 Watts.
- If you plan to use this fixture for extended periods, use LED bulbs.
- This fixture is damp-rated, so it can be used in areas with moisture.
WARNING:
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
You will need 1 – Candelabra Base Bulb 40 Watts Recommended 60 Watts Max.
USE LED BULBS FOR EXTENDED USE THIS FIXTURE IS DAMP RATED

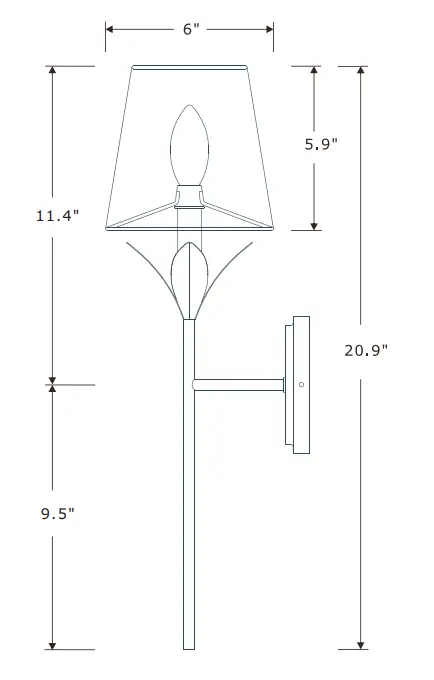

DIMENSION
How to Install
- Install the mounting plate onto the outlet box.
- Place the backplate over the mounting plate and secure with the screws.
- Place the candle sleeve over the socket and slide the fabric shade over the candle sleeve.
- Install the bulb onto the socket.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.
PART NUMBER
MODEL # 531-GA
- A. (1) – Mounting Hardware
- B. (1) – Backplate(W4.9″, H0.9″) #XRE531GABKP4.9IN
- C. (1) – Candle Sleeve(W0.87″,H3.9*) #XRE531GACDLO.87IN
- D. (1) – White Fabric Shade #XRE531SHAGIN
- E. (2) – Screws
Crystorama Lighting
