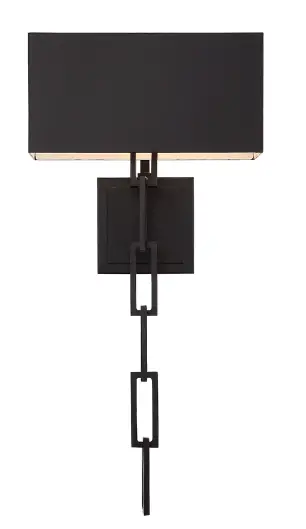

CRYSTORAMA 8682-MK-WH Two Light Wall Mount
Product Information
Model: #8682-MK-WH

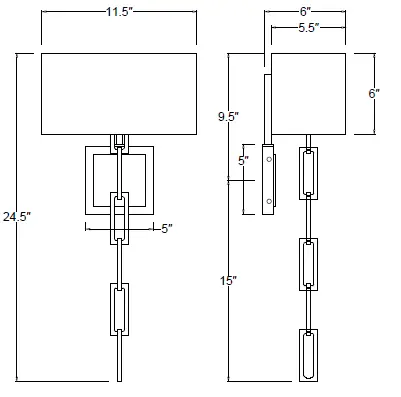

Dimensions
- Mounting Hardware: 1 piece
- Mounting Plate: 2 pieces
- Wire Nut: 2 pieces
- Anchor Screws: 4 pieces
- Screws: unspecified quantity
- Back Plate: 5x5x0.9 inches
- Socket: 2 pieces
- Metal Shade: 11.5×5.5×6 inches
- Chain: 20.7 inches long, 8.0mm thick
Electrical Requirements
- All electrical components must be installed by a licensed electrician.
- Installation should be done in accordance with the National
Electric Code and appropriate local electrical codes.
Bulb Requirement
- 2 Candelabra Bulbs
- Recommended Wattage: 40 Watts
- Maximum Wattage: 60 Watts
Warning
This product contains Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.P65Warnings.ca.gov

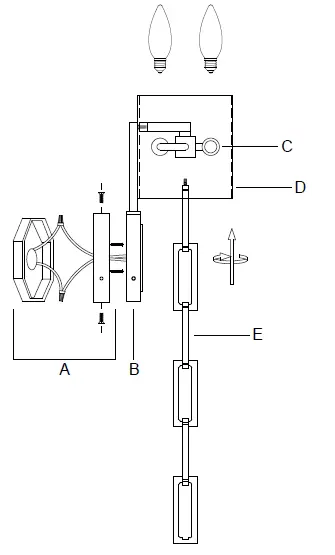

Part Number
- A. Mounting Hardware
- (1) Mounting Plate
- (2) Wire Nut
- (2)Anchor Screws
- (4)Screws
- B.(1)Back plate;5″x5″x0.9″h;XMO8682MKBKP5IN C.(2)Socket
- D.(1)Metal Shade;11.5″x5.5″x6″h;XMO8682MKSHA6IN
- E.(1)Chain;20.7″Lx8.0mmT;XMO8682MKCHA8.0MM
Product Usage Instructions
- Determine the position on the wall where the fixture will be affixed.
- Mark two points on the wall with the same distance as the holes on the back plate.
- Drill two holes in the wall at the marked points and insert the anchors into the holes.
- Attach the mounting plate onto the wall using the anchor screws.
- Attach the back plate onto the mounting plate.
- Install the chain to the bottom of the junction box.
- Install the recommended bulbs (2 candelabra bulbs, not included).
