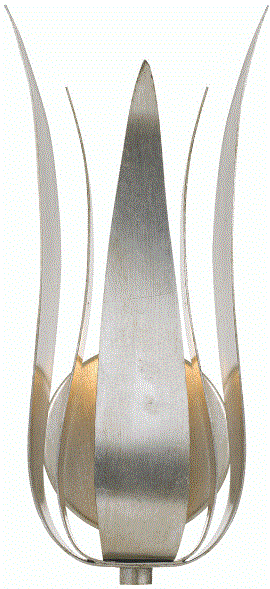

CRYSTORAMA 511-MT Broche One Light Wall Mount
Product Information
The model #511-MT is a three-leafed wall sconce with a damp rating, suitable for indoor use. The sconce requires one candelabra base bulb, with a recommended wattage of 40 watts and a maximum wattage of 60 watts. LED bulbs are recommended for extended use. The sconce comes with a backplate, mounting hardware, and three leaves of varying sizes, along with two finials.
Product Usage Instructions
- Before beginning installation, ensure that you have all the parts and components by doing a complete inventory.
- Remove all three leaves from the sconce before attaching it to the outlet box.
- Attach the backplate to the outlet box using the provided mounting hardware.
- Insert the recommended bulb into the socket (bulb not included).
- Place the small leaf, middle leaf, and large leaf in that order over the nipple on the socket.
- Secure the leaves using the hex nut and one of the provided finials.
- The leaves can be adjusted by bending them slightly to achieve the desired look.

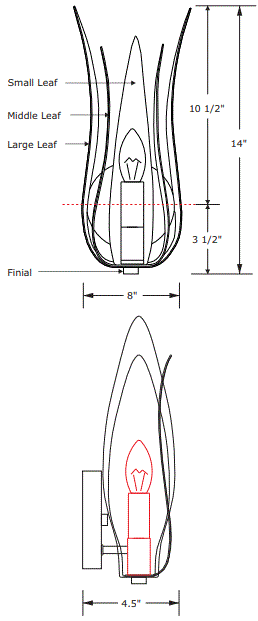

DIMENSION
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate
How to install
- Do a complete inventory of all parts and components before you start installing.
- Please remove all three leaves before installing the fixture onto the outlet box.
- Install the backplate onto the outlet box.
- Insert recommended bulb (not included).
- Place the small leaf, middle leaf and large leaf in that order, over the nipple on the socket and secure them with the hex nut and finial.
(Please note that the leaves can be adjusted by bending them slightly.)
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.

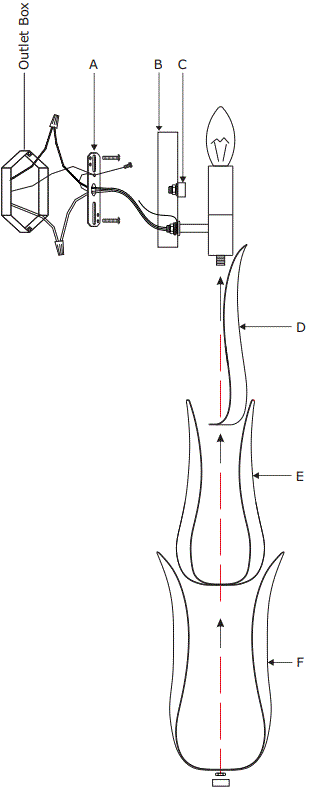

PART NUMBER MODEL #511-MT
- A. (1) – Mounting Hardware
- B. (1) – Backplate(D4.72”,H0.78”) #XRE511MTBKP4.72IN
- C. (2) – Finial #XRE511MTFIN
- D. (1) – Small Leaf
- E. (1) – Middle Leaf
- F. (1) – Large Leaf
