CRYSTORAMA GAM71001AG Gamma 1 Light Wall Mount
Product Information
- Model: GAM71001AG
- Brand: Crystorama
- Website: www.crystorama.com
Part Numbers:
- A. (1) Wire Connector
- B. (1) Mounting Plate
- C. (2) Mounting Screw
- D. (2) Screw
- E. (2) Backplate – W4 3/4, H 3/4
- F. (1) Fixture Body
- G. (1) Pleated Shade – XSN71001AGSHA6.5IN
This product is designed to provide lighting and has been in the market for sixty years. The fixture is dry-rated and requires a candelabra base bulb.
WARNING: Electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm. For more information, visit www.p65warnings.ca.gov.
Product Usage Instructions
- Turn off the power before starting the installation process.
- Place the fixture parts on a soft cloth-covered platform before installation.
- Install the mounting plate onto the outlet box.
- Place the backplate over the mounting plate and secure it with the screws.
- Place the pleated shade over the fixture body.
- Install the candelabra base bulb. Recommended wattage is 40 Watts, with a maximum of 60 Watts. It is recommended to use LED bulbs for extended use.
Note: The specific dimensions of the parts can be found in the part numbers section.
WARNING:
ASSEMBLY INSTRUCTION MODEL #GAM71001AG
All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and the appropriate local electrical codes
You will need 1– Candelabra Base Bulb 40 Watts recommended 60 Watts Max. USE LED BULBS FOR EXTENDED USE
The fixture is Dry rated

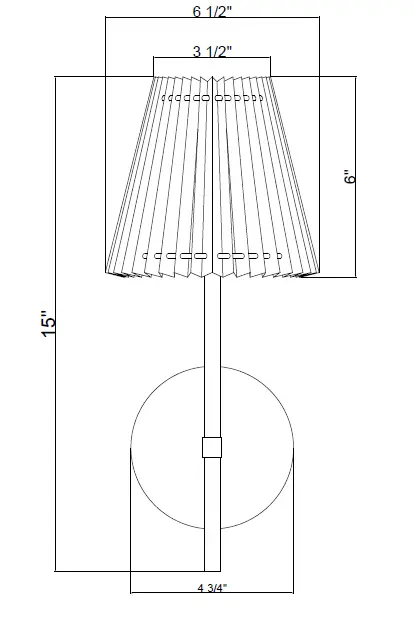

DIMENSION

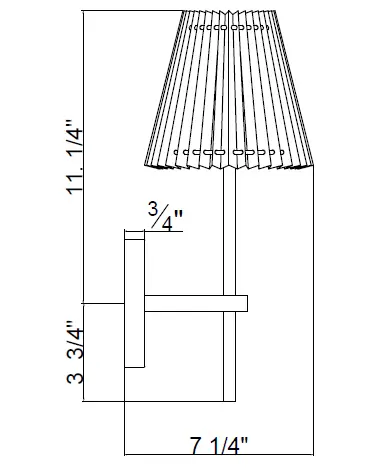

SIDE VIEW

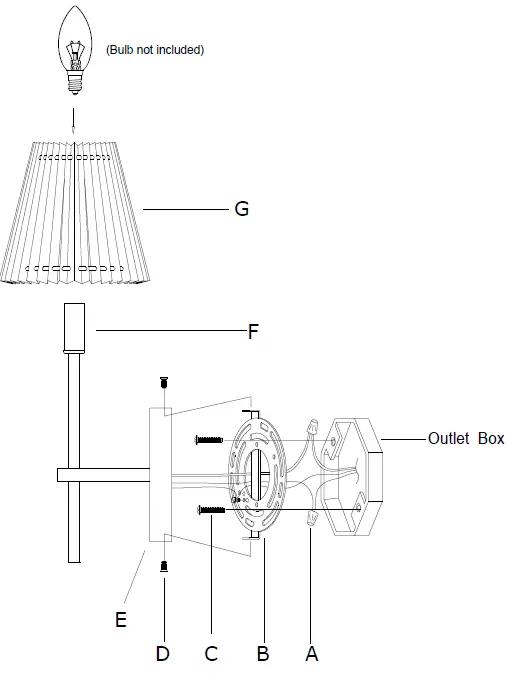

HOW TO INSTALL
Place the fixture parts on a soft cloth-covered platform before installation of fixture.
- Install the mounting plate onto the outlet box.
- Place the backplate over the mounting plate and secure with the screws.
- Place the pleated shade over the fixture body.
WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer and/or birth defects or reproductive harm.For more information go to www.p65warnings.ca.gov
Part Number
- A. (1)-Wire Connector
- B. (1)-Mounting Plate
- C. (2)-Mounting Screw
- D. (2)-Screw
- E. (2)-Backplate ; W4 3/4″, H 3/4″- XSN71001AGBKP4.75IN
- F. (1)-Fixture body
- G. (1)-Pleated Shade-XSN71001AGSHA6.5IN
Crystorama Lighting
p65warnings.ca.gov
