WHPS BZ DS Hot Water Storage Tanks
Installation Guide

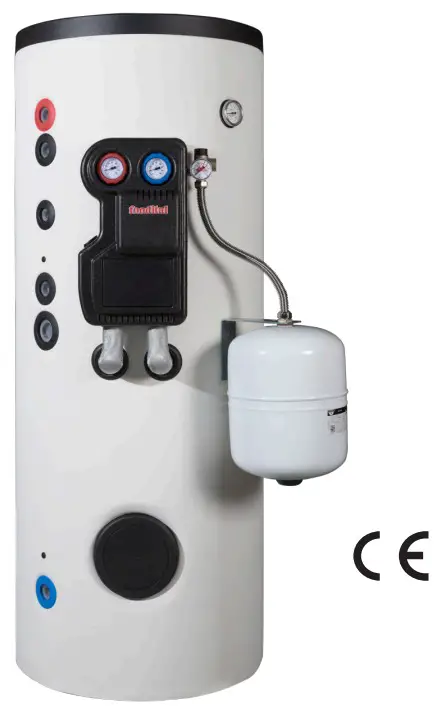

WHPS BZ DS Hot Water Storage Tanks

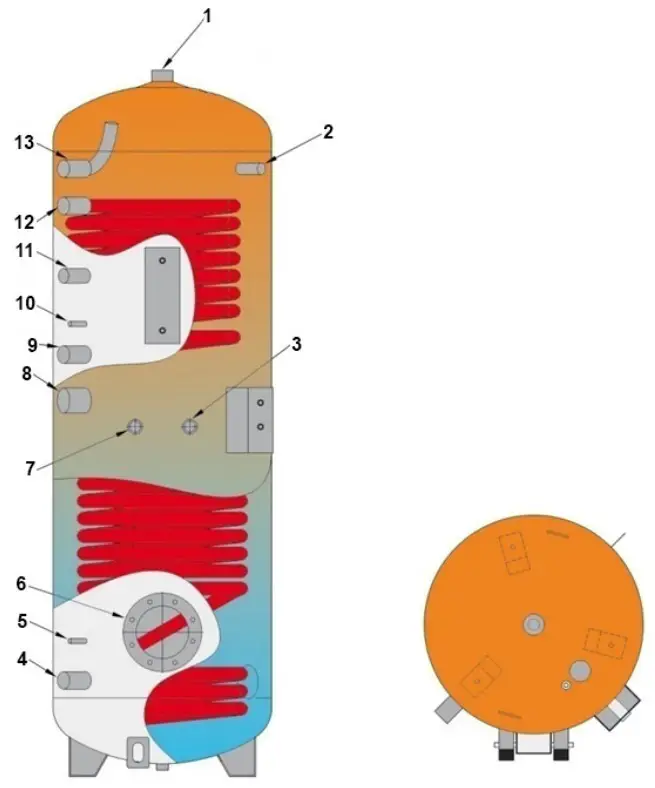

| N° | CONNECTOR TYPE | VALUE |
| 1 | Anode | 1″1/4 |
| 2 | Thermometer – Feeler | 1/2″ |
| 3 | Solar energy outlet | 1″ |
| 4 | Cold water inlet | 1″ |
| 5 | Solar feeler | Feelerweel 0 10 mm |
| 6 | Inspection flange-Electric heater | 0 180 / 0 120 |
| 7 | Solar energy inlet | 1″ |
| 8 | Electric heater | 1″1/2 |
| 9 | Alternative energy oulet | 1″ |
| 10 | Feeler | Feelerweel 0 10 mm |
| 11 | Re-circulation | 3/4″ |
| 12 | Alternative energy inlet | 1″ |
| 13 | Domestic hot water inlet | 1″ |
INSTALLATION INSTRUCTIONS
What follows is determinant for the validity of warranty.
- The installation must:
• Be executed by a qualified installer.
• Be provided, where necessary, with a water-reducing pressure in entrance.
• Be provided with a safety valve set according to what is reported on the “technical dates” label applied to the boiler.
• Be provided with an expansion tank proportioned to the boiler’s dimensions (you are advise to let the circulation be made by a thermo technician). - Before starting it you are invited to check the clamping of all the screws of the flange.
- The temperature of the content of the boiler must always be under 90°C.
- Each year an internal cleaning must be executed.
- In order to avoid corrosion the anodes must be inspected after each 12 months; however, where the water is particularly aggressive the inspections must be reduced to each 6 months; if the anode section is less than 22 mm, it must be replaced, if covered with limestone is to be cleaned.
- The Lonelier Index, measured at the operating temperature, must range from “0” to “+0,4”, hardness within 10°F and 25°F.
DIMENSIONING OF THE EXPANSION TANK
In equipment’s with sanitary re-circulation rings the volume of the water in the pipes is to be taken into account.
| Type | Min. size exp. vessel | Max. size exp. vessel |
| 200 | 12 | 18 |
| 300 | 18 | 25 |
| MAXIMAL WORKING-PRESSURE | 10 bar |
| MAXIMAL WORKING PRESSURE HEAT EXCHANGER | 10 bar |
The tanks are produced according to the basic EEC Directives 97/23/CE (P.E.D.) for the pressure equipments, as in the art. 3.3; they are free from “CE” mark.
Example of connection:

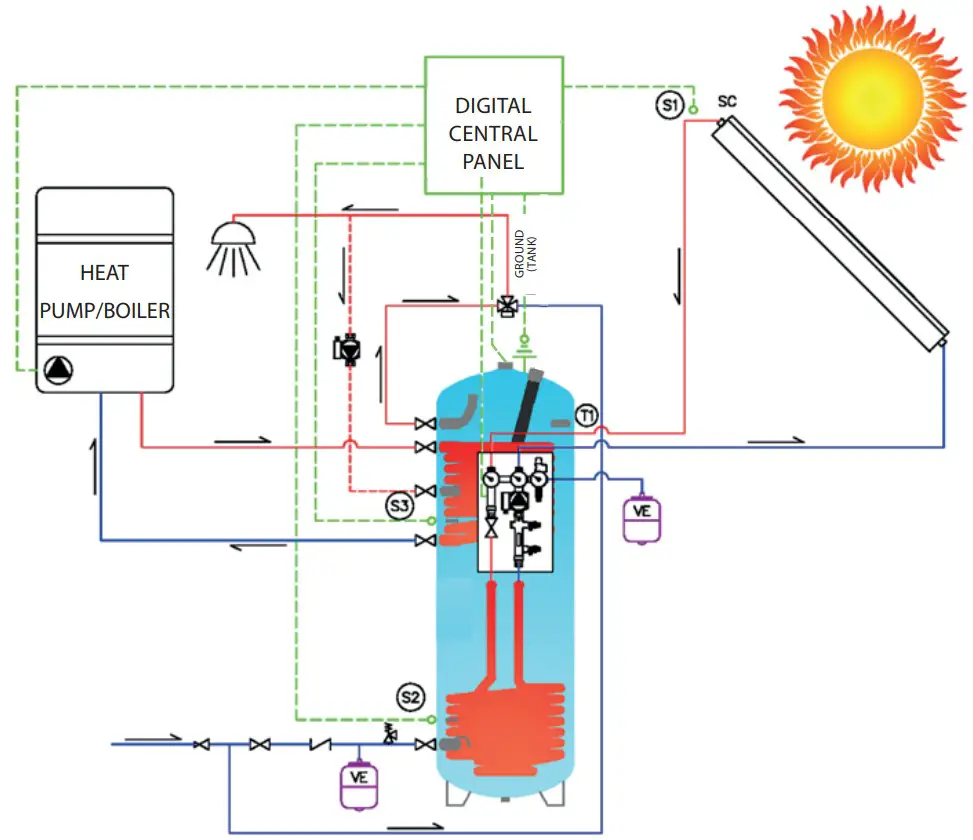

Plant schema with heat pump/boiler with integration of solar panel.
ATTENTION: The hydraulic schemas are indicative. The design must be realized by a qualified professional.
The construction’s company guarantees his own products which are supplied with identification code. Claims for faults must happen in 8 days in writing or trough the guarantee-card, with the approval by our point of sale. In case of contestations, after our examination of the defect and their causes, the guarantee consists in the repairing by loco or in the substitution of the product, free of freight-charge, upon restitution of the item with manufacturing defect. The installation costs are excluded, except specific agreements.
The guarantee is subjected to the following conditions:
- Claims must happen before the manufacture to complement or assignment to a third party.
- Installation of water-heating must be made from qualified firm/installer, furthermore the plant has to be equipped with safety valve and suitable expansion-vessel.
- Water-heaters by Smalless or Salver are subjected to use and maintenance as normally required, temperature and pressure working must be strictly observed, examination and replacement of magnesium anode (best every 6 months), Lonelier water index, measured at the operating temperature, between 0 and +0,4; hardness within 10°F and 25°F.
From the guarantee are excluded damages due through:
- Faulty montage, making ready for use out of specification or improper use of water-heater.
- Defects caused from no force majeure (impact in case of montage or in building site or by conveyance).
- Intake of parcels, that are rest of material of montage, or damages caused from no controlled and no closed gaskets.
- The contestations don’t entitle deduction of purchase price or a part of it or for compensation with other requires.
We exercise the right to reject requires of guarantees if buyer doesn’t respect the obligation of current payments.
Further requires of compensation, in special way for directs and indirect damages to people or things, can’t be acknowledged.
APPENDIX: ELECTRONIC ANODE

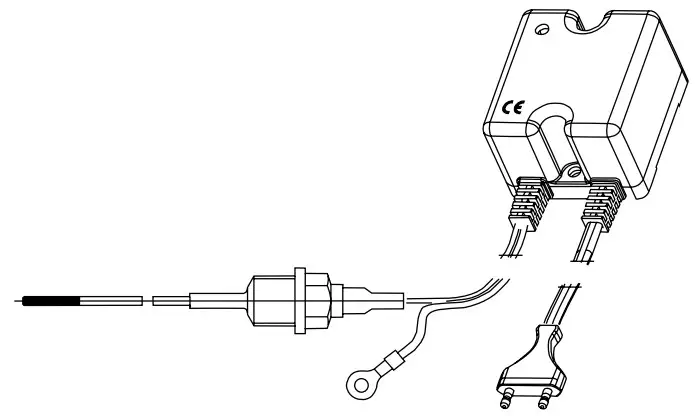

ELEC TRONIC ANODE: connection scheme
DIRECTIVE PARAMETERS 2009/125/CE, 2010/30/UE – EN 12897
| SIZE (INSUL.) | CAPACITY (L) | NON SOLAR VOLUME (L) | STANDING LOSS (W) | SPECIFIC LOSS (W/K) | ENERGY CLASS |
| 200 | 196 | 80 | 51 | 1,12 | B |
| 300 | 273 | 110 | 63 | 1,39 | B |
GUARANTEE COUPON
THE TANK HAS BEEN CHECKED THROUGH PRESSURE TEST THAT MEANS 1,5 MORE THAN THE OPERATING PRESSURE
| DATE | SIGNATURE OPERATOR |
STAMP AND SIGNATURE OF INSTALLER
For any request of information or for any complaint please enclose copy of this coupon
