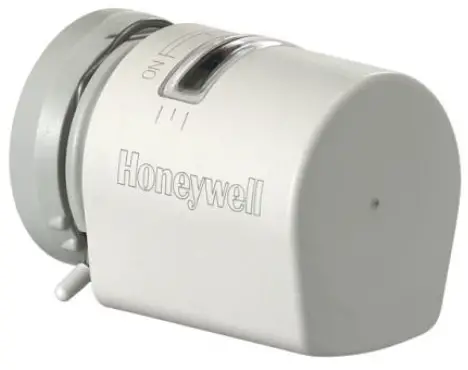

Honeywell M4100K1515 Termisk Motor
INSTALLATION INSTRUCTIONS
M4100E1510 (Version AC)
M4100K1515 (Version DC)

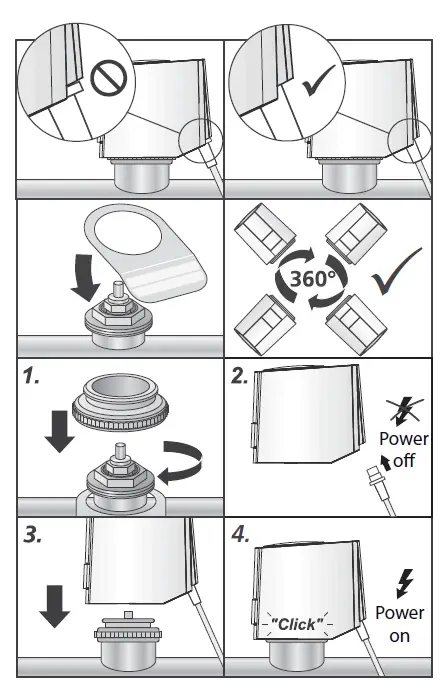

Montage
Assembly

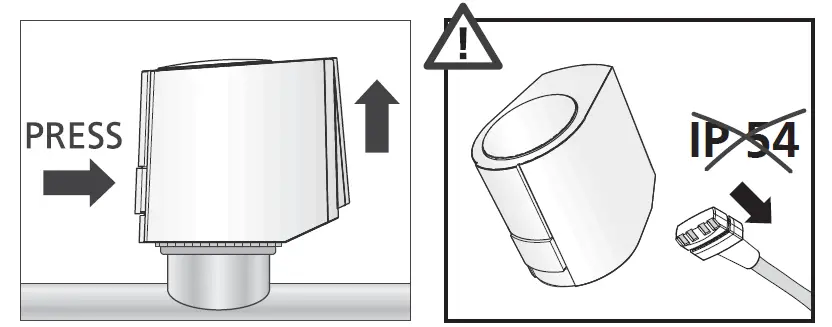

Disassembly

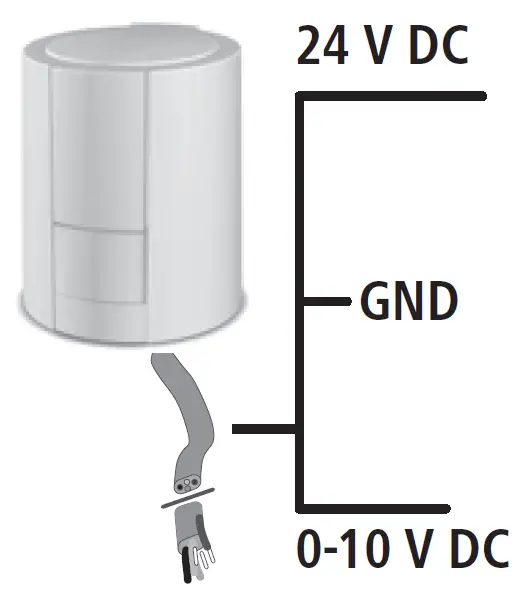

Connection
To protect against overloading, fusing appropriate to the given cable cross-section must be installed.
Supply voltage: Safety transformer (for AC variant) according to EN 61558-2-6 or switching power supply (for DC variant) according to EN 61558-2-16.
Version AC
M4100E1510
Version DC
M4100K1515
Optional First-Open
Normally Closed

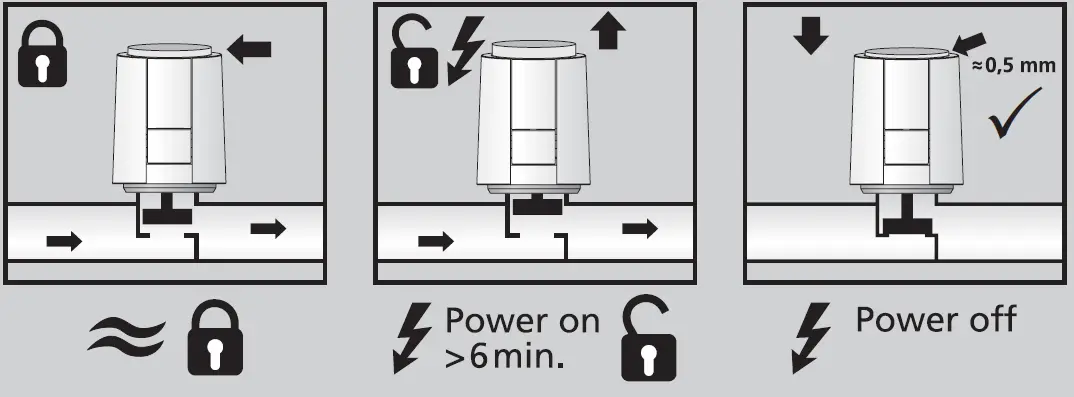

Adaption check

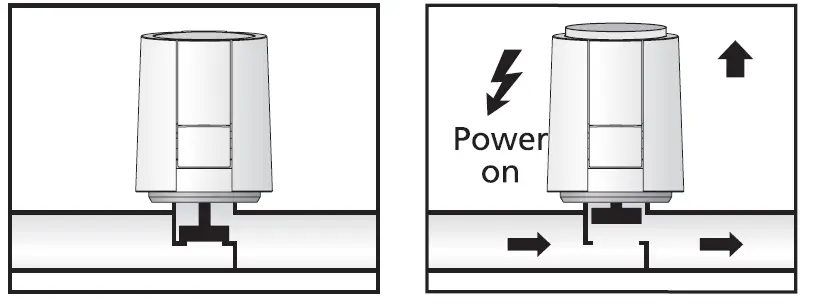

Function mode

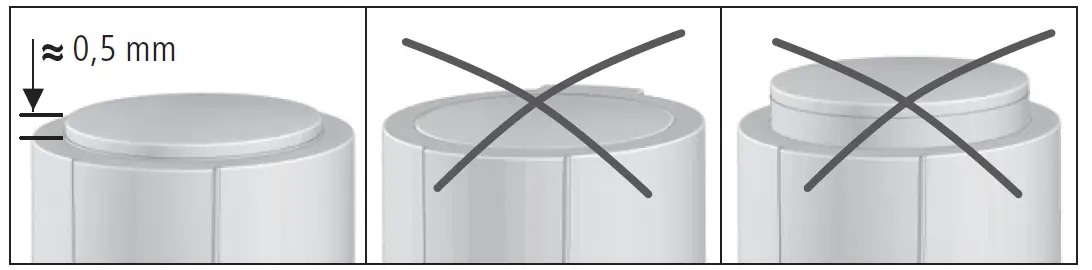

Closing point verification
Dynamical, if the valve is positioned at the closing point.

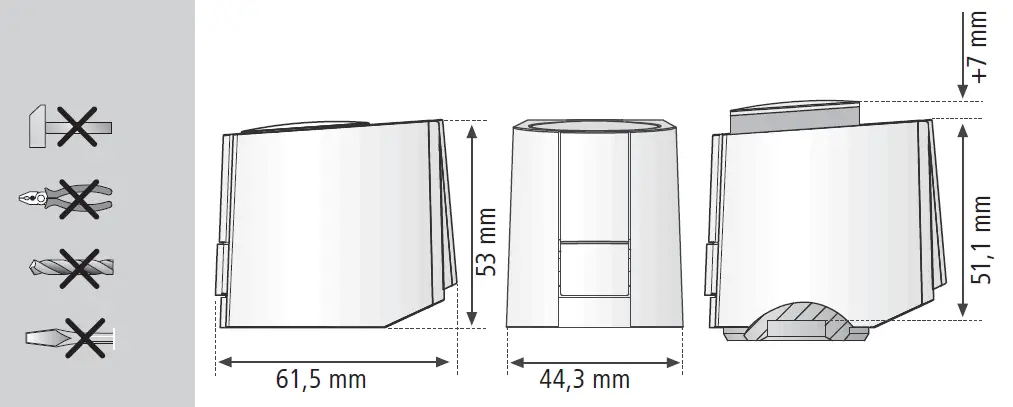

Technical Specifications
- Operating power: 1 W
- Max. inrush current: < 320 mA for max. 2 min
- Control voltage: 0 – 10 V
- Actuating force: 100 N +10 %
- Degree of protection: IP 54
- Ambient temperature: 0 … +60 °C
- Storage temperature: -25 … +60°C
