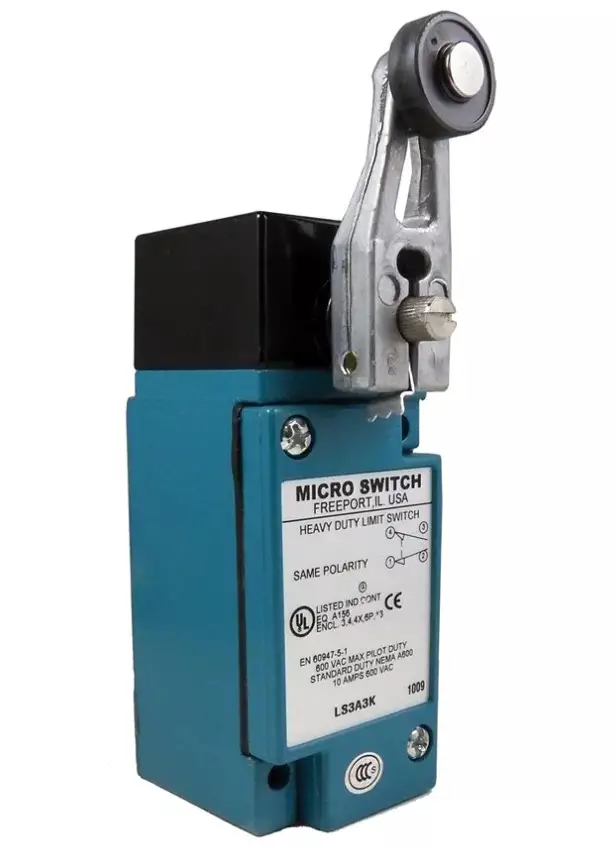

Honeywell 924ce Series 924ce55 Micro Switch Instruction Manual (+ PDF)

Consult with local safety agencies and their requirements when designing a machine-control link, interface, and all control elements that affect
Strictly adhere to all installation

Failure to comply with these instructions could result in death or serious injury.

MOUNT, WIRE AND SEAL SWITCH

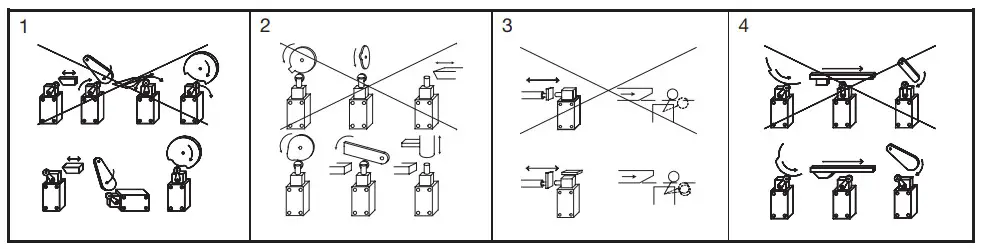

Refer to Figures 1-4 on Page 3 for proper application of limit switches.
Mount switch using two M5 or #10 screws. Torque screws to 5-6 N m (45-53 in lb).
Wire standard units according to wiring diagram shown on switch cover nameplate.
Secure cable approximately 6 mm (0.25 in) from the point where the cable exits the switch housing in order to prevent ndue stress to cable sealing.

MICRO SWITCH MINIATURE ENCLOSED LIMIT SWITCH 24CE/924CE SERIES

Designation and Utilization Category		Rated Operational Current Ie (A) at Rated Operational Voltage Ue (V)		VA Rating
		120 V	240 V	Make	Break
AC15	B300	3 A	1,5 A	3600	360
DC13	R300	0,22 A	0,1 A	28	28
Rated Thermal Current (Ith)		10 A
Rated Impulse Withstand (Uimp)		2500 Vdc
Maximum Fuse Rating		10 A quick acting
Sealing		IP66/IP67 on 24CE; NEMA 1, 3, 4, 12, 13 on 924CE
Operating Temperature Range		24 CE: 0 °C to 70 °C [32 °F to 160 °F]; 924CE: 0 °C to 105 °C [32 °F to 221 °F]
Complies with:		• Low Voltage Directive • EN 60947-5-1
MCTF (Mechanical Life): >1,000,000 cycles with single-sided confidence limit of 100 % MCTF (Electrical Life): > 25,000 cycles with single-sided confidence limit of 75 % Highest SIL Capability: SIL3 (HFT:1), IEC 61508-2 Proof Test Interval: 1 Year

ANGULAR TRAVEL (°)	RECORRIDO ANGULAR (°)	WINKELWEG (°)
COURSE ANGULAIRE (°)	CORSA ANGOLARE (°)	PERCURSO ANGULAR (°)

CAT	FP	OP1	OP2	PO1	MOF @ 38,1 mm [1.5 in]
24CE16-Y	0,0	30,0	–	50	7,85 N [1.77 lb]
924CE16-Y	0,0	26,0	–	50	7,85 N [1.77 lb]
24CE16-S	0,0	26,0	51 ±7	50	7,85 N [1.77 lb]
924CE16-S	0,0	26,0	51 ±7	50	7,85 N [1.77 lb]
24CE16-T	0,0	55 ±6	48,0	65	7,85 N [1.77 lb]
924CE16-T	0,0	55 ±6	48,0	65	7,85 N [1.77 lb]

VERTICAL TRAVEL (MM)	RECORRIDO VERTICAL (MM)	VERTIKALER LAUFWEG (MM)
COURSE VERTICALE (MM)	CORSA VERTICALE (MM)	PERCURSO VERTICAL (MM)

CAT	FP	OP1	OP2	PO1	MOF @ 38,1 mm [1.5 in]
24CE1-Y	17,1	14,9	–	13,1	22,5 N [5.06 lb]
924CE1-Y	17,1	14,9	–	13,1	22,5 N [5.06 lb]
24CE1-S	17,1	14,9	12,9	13,1	22,5 N [5.06 lb]
924CE1-S	17,1	14,9	12,9	13,1	22,5 N [5.06 lb]
24CE1-T	17,1	12,4	13,1	11,5	22,5 N [5.06 lb]
924CE1-T	17,1	12,4	13,1	11,5	22,5 N [5.06 lb]
24CE2-Y	29,9	27,7	–	25,9	22,5 N [5.06 lb]
924CE2-Y	29,9	27,7	–	25,9	22,5 N [5.06 lb]
24CE2-Sw	29,9	27,7	25,7	25,9	22,5 N [5.06 lb]
924CE2-S	29,9	27,7	25,7	25,9	22,5 N [5.06 lb]
24CE2-T	29,9	25,2	25,9	24,3	22,5 N [5.06 lb]
924CE2-T	29,9	25,2	25,9	24,3	22,5 N [5.06 lb]
24CE3-Y	29,9	27,7	–	25,9	22,5 N [5.06 lb]
924CE3-Y	29,9	27,7	–	25,9	22,5 N [5.06 lb]
24CE3-S	29,9	27,7	25,7	25,9	22,5 N [5.06 lb]
924CE3-S	29,9	27,7	25,7	25,9	22,5 N [5.06 lb]
24CE3-T	29,9	25,2	25,9	24,3	22,5 N [5.06 lb]
924CE3-T	29,9	25,2	25,9	24,3	22,5 N [5.06 lb]
24CE18-Y	23,9	21,7	–	19,9	22,5 N [5.06 lb]
924CE18-Y	23,9	21,7	–	19,9	22,5 N [5.06 lb]
24CE18-S	23,9	21,7	19,7	19,9	22,5 N [5.06 lb]
924CE18-S	23,9	21,7	19,7	19,9	22,5 N [5.06 lb]
24CE18-T	23,9	19,2	19,9	18,3	22,5 N [5.06 lb]
924CE18-T	23,9	19,2	19,9	18,3	22,5 N [5.06 lb]
24CE28-Y	43,9	41,7	–	39,9	22,5 N [5.06 lb]
924CE28-Y	43,9	41,7	–	39,9	22,5 N [5.06 lb]
24CE28-S	43,9	41,7	39,7	39,9	22,5 N [5.06 lb]
924CE28-S	43,9	41,7	39,7	39,9	22,5 N [5.06 lb]
24CE28-T	43,9	39,2	39,9	38,3	22,5 N [5.06 lb]
924CE28-T	43,9	39,2	39,9	38,3	22,5 N [5.06 lb]
24CE29-Y	43,9	41,7	–	39,9	22,5 N [5.06 lb]
924CE29-Y	43,9	41,7	–	39,9	22,5 N [5.06 lb]
24CE29-S	43,9	41,7	39,7	39,9	22,5 N [5.06 lb]
924CE29-S	43,9	41,7	39,7	39,9	22,5 N [5.06 lb]
24CE29-T	43,9	39,2	39,9	38,3	22,5 N [5.06 lb]
924CE29-T	43,9	39,2	39,9	38,3	22,5 N [5.06 lb]
24CE31-Y	35,7	33,5	–	31,7	25,5 N [5.74 lb]
924CE31-Y	35,7	33,5	–	31,7	25,5 N [5.74 lb]
24CE31-S	35,7	33,5	31,5	31,7	25,5 N [5.74 lb]
924CE31-S	35,7	33,5	31,5	31,7	25,5 N [5.74 lb]
24CE31-T	35,7	31,0	31,7	30,1	25,5 N [5.74 lb]
924CE31-T	35,7	31,0	31,7	30,1	25,5 N [5.74 lb]
24CE55-Y	35,7	33,5	–	31,7	25,5 N [5.74 lb]
924CE55-Y	35,7	33,5	–	31,7	25,5 N [5.74 lb]
24CE55-S	35,7	33,5	31,5	31,7	25,5 N [5.74 lb]
924CE55-S	35,7	33,5	31,5	31,7	25,5 N [5.74 lb]
24CE55-T	35,7	31,0	31,7	30,1	25,5 N [5.74 lb]
924CE55-T	35,7	31,0	31,7	30,1	25,5 N [5.74 lb]
24CE66-Y	32,0	29,8	–	28	25,5 N [5.74 lb]

24CE66-S	32,0	29,8	27,8	28	25,5 N [5.74 lb]
24CE66-T	32,0	27,3	28,0	26,4	25,5 N [5.74 lb]

MICRO SWITCH MINIATURE ENCLOSED LIMIT SWITCH 24CE/924CE SERIES

imensions in mm/inches

WARRANTY/REMEDY

Honeywell warrants goods of its manufacture as being free of defec- tive materials and faulty workmanship. Contact your local sales office for warranty information. If warranted goods are returned to Honeywell during the period of coverage, Honeywell will repair or replace without charge those items it finds defective. The foregoing is Buyer’s sole remedy and is in lieu of all other warranties, expressed or implied, including those of merchantability and fitness for a particular purpose.
Specifications may change without notice. The information we sup- ply is believed to be accurate and reliable as of this printing. However, we assume no responsibility for its use.
While we provide application assistance personally, through our literature and the Honeywell web site, it is up to the customer to deter- mine the suitability of the product in the application.

FOR MORE INFORMATION

Honeywell Safety and Productivity Solutions services its customers through a worldwide network of sales offices and distributors. For application assistance, current specifications, pricing or the nearest
Authorized Distributor,
