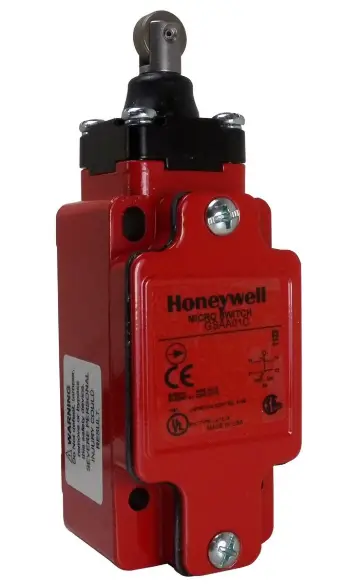

Honeywell GSS Series GSAA01A1B General Purpose Safety Switches
Installation Instructions for the Global Safety Limit Switch (GSS Series)
WARNING
IMPROPER INSTALLATION
- Consult with local safety agencies and their requirements when designing a machine-control link, interface, and all control elements that affect safety.
- Strictly adhere to all installation instructions.
Failure to comply with these instructions could result in death or serious injury.
MOUNT, WIRE AND SEAL SWITCH
WARNING
IMPROPER OPERATION
- Ensure switch actuator achieves sufficient travel for positive opening of normally closed (NC) contacts to occur.
Failure to comply with these instructions could result in death or serious injury.
- Refer to:
- Page 3 for adjustments.

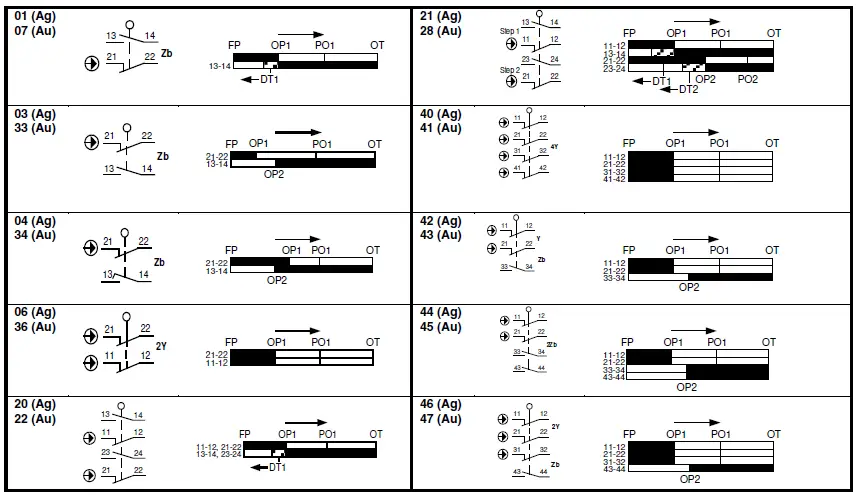

- Page 4 for EN 50041 wiring configurations for each switch code.(Ag=silver contacts, Au=gold-plated contacts)
- Pages 5 and 6 for specific travel distances for each switch code, and specifications.

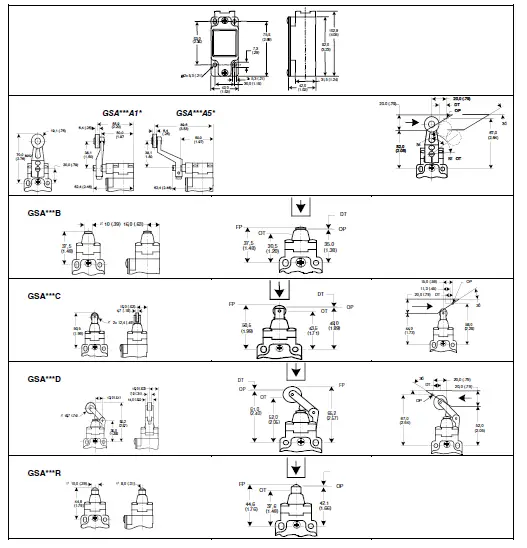

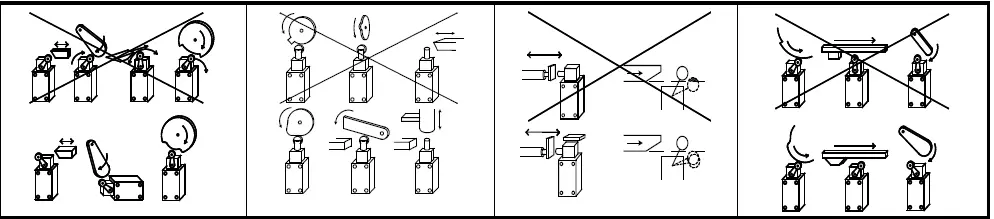

- Page 7 proper application of limit switches, and switch mounting dimensions.
- Perform adjustments (if desired):

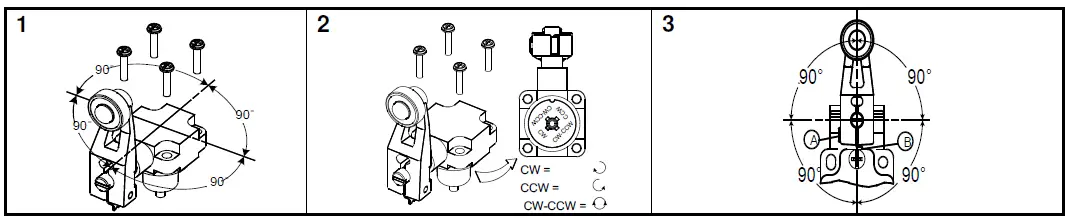

- Head orientation (Figure 1).
- Actuation direction (Figure 2).
- Side rotary switches with 90° positive drive levers (catalog listings ending in A1A, A1B, A5A, A5B) (Figure 3):
- Ensure flats of switch shaft engage groove in actuator lever.
- Tighten locking screw (A) until tab (B) no longer moves.
- Mount switch using four M5 or #10 screws. Torque screws to 4,9 Nm to 5,9 Nm [43 in-lb to 52 in-lb].
- Remove screws on cover plate.
- Connect stranded wire (0,75 mm2 to 2,5 mm2, 18-14 AWG) or solid wire (0,75 mm2 to 1,5 mm2, 18-16 AWG) to connector terminals (use 90 °C wire when ambient temperature is over 75 °C). Torque switch terminal screws to 0,8 Nm to 1,0 Nm [7 in-lb to 9 in-lb].
- Seal conduit opening according to instructions in PK 80112.
- Reassemble cover plate, and torque cover screws to 0,5 Nm [4.4 in-lb].
| Contact Closed | |||
 | |||
| Contact Open | |||
 | |||
| Differential Travel | |||
 | |||
| CAT | Catalog Listing | ||
| FP | Free Position | ||
| OP1 | Operating Position 1 | ||
| OP2 | Operating Position 2 | ||
| PO1 | Positive Opening 1 to IEC 947-5-1 | ||
| PO2 | Positive Opening 2 to IEC 947-5-1 | ||
| DT1 | Differential Travel 1 | ||
| DT2 | Differential Travel 2 | ||
| OT | Over Travel | ||
| MOF | Maximum Operating Force | ||
| MDF | Maximum Disconnect Force | ||
| ANGULAR TRAVEL (°) | CARRERA ANGULAR (°) | WINKELWEG (°) | ||||||||||||
| COURSE ANGULAIRE (°) | CORSA ANGOLARE (°) | PERCURSO ANGULAR (°) | ||||||||||||
| Ag | CAT Au | FP | OP1 | OP2 | PO1 | PO2 | DT1 | DT2 | OT | MOF | MDF | |||
| GSA*01A* | GSA*07A* | 0 | 26 | – | 55 | – | 12 | – | 85 | 0,33 N m [2.9 in lb] | 0,385 N m [3.4 in lb] | |||
| GSA*03A* GSA*42A* GSA*44A* GSA*46A* | GSA*33A* GSA*43A* GSA*45A* GSA*47A* | 0 | 26 | 38 | 38 | – | – | – | 85 | 0,33 N m [2.9 in lb] | 0,385 N m [3.4 in lb] | |||
| GSA*04A* | GSA*34A* | 0 | 38 | 26 | 50 | – | – | – | 85 | 0,33 N m [2.9 in lb] | 0,385 N m [3.4 in lb] | |||
| GSA*06A* GSA*40A* | GSA*36A* GSA*41A* | 0 | 26 | – | 38 | – | – | – | 85 | 0,33 N m [2.9 in lb] | 0,385 N m [3.4 in lb] | |||
| GSA*20A* | GSA*22A* | 0 | 26 | – | 55 | – | 12 | – | 85 | 0,33 N m [2.9 in lb] | 0,400 N m [3.5 in lb] | |||
| GSA*21A* | GSA*28A* | 0 | 27 | 42 | 55 | 70 | 7 | 6 | 85 | 0,33 N m [2.9 in lb] | – | |||
| CAM TRAVEL (mm) | CARRERA DE LA LEVA (mm) | NOCKENLAUFWEG (mm) | |||||||||||||
| COURSE DE CAME (mm) | CORSA CAMMA (mm) | PERCURSO DO CAME (mm) | |||||||||||||
| Ag | CAT Au | FP | OP1 | OP2 | PO1 | PO2 | DT1 | DT2 | OT | MOF | MDF | ||||
| GSA*01A* | GSA*07A* | -3,6 | 20 | – | 56 | – | 12 | – | – | 9,7 N (2.2 lb) | 11,4 N [2.6 lb] | ||||
| GSA*03A* GSA*42A* GSA*44A* GSA*46A* | GSA*33A* GSA*43A* GSA*45A* GSA*47A* | -3,6 | 20 | 32 | 32 | – | – | – | – | 9,7 N [2.2 lb] | 11,4 N [2.6 lb] | ||||
| GSA*04A* | GSA*34A* | -3,6 | 32 | 20 | 45 | – | – | – | – | 9,7 N [2.2 lb] | 11,4 N [2.6 lb] | ||||
| GSA*06A* GSA*40A* | GSA*36A* GSA*41A* | -3,6 | 20 | – | 32 | – | – | – | – | 9,7 N [2.2 lb] | 11,4 N [2.6 lb] | ||||
| GSA*20A* | GSA*22A* | -3,6 | 20 | – | 56 | – | 12 | – | – | 9,7 N [2.2 lb] | 11,8 N [2.7 lb] | ||||
| GSA*21A* | GSA*28A* | -3,6 | 20 | 38,5 | 56 | 74,5 | 7 | 8,5 | – | 9,7 N [2.2 lb] | — | ||||
| GSA*01C | GSA*07C | 11,3 | 15 | – | 18,3 | – | 1,8 | – | – | 9,3 N [2.1 lb] | 15,6 N [3.5 lb] | ||||
| GSA*03C GSA*42C GSA*44C GSA*46C | GSA*33C GSA*43C GSA*45C GSA*47C | 11,3 | 15 | 16,8 | 18,3 | – | – | – | – | 9,3 N [2.1 lb] | 15,6 N [3.5 lb] | ||||
| GSA*04C | GSA*34C | 11,3 | 16,8 | 15 | 20,3 | – | – | – | – | 9,3 N [2.1 lb] | 15,6 N [3.5 lb] | ||||
| GSA*06C GSA*40C | GSA*36C GSA*41C | 11,3 | 15 | – | 18,3 | – | – | – | – | 9,3 N [2.1 lb] | 15,6 N [3.5 lb] | ||||
| GSA*20C | GSA*22C | 11,3 | 15 | – | 18,3 | – | 1,8 | – | – | 9,3 N [2.1 lb] | 21,4 N [4.8 lb] | ||||
| GSA*21C | GSA*28C | 11,3 | 15 | 16,9 | 18,3 | 20,3 | 1,4 | 1,4 | – | 9,3 N [2.1 lb] | 15,6 N [3.5 lb] | ||||
| GSA*01D | GSA*07D | 9,1 | 20 | – | 29,1 | – | 4,1 | – | – | 5,5 N [1.2 lb] | 7,0 N [1.6 lb] | ||||
| GSA*03D GSA*42D GSA*44D GSA*46D | GSA*33D GSA*43D GSA*45D GSA*47D | 9,1 | 20 | 24,1 | 29,1 | – | – | – | – | 5,5 N [1.2 lb] | 7,0 N [1.6 lb] | ||||
| GSA*04D | GSA*34D | 9,1 | 24,1 | 20 | 33,2 | – | – | – | – | 5,5 N [1.2 lb] | 7,0 N [1.6 lb] | ||||
| GSA*06D GSA*40D | GSA*36D GSA*41D | 9,1 | 20 | – | 29,1 | – | – | – | – | 5,5 N [1.2 lb] | 7,0 N [1.6 lb] | ||||
| GSA*20D | GSA*22D | 9,1 | 20 | – | 29,1 | – | 4,1 | – | – | 5,5 N [1.2 lb] | 9,6 N [2.2 lb] | ||||
| GSA*21D | GSA*28D | 9,1 | 20 | 25,5 | 29,1 | 31,1 | 3,7 | 3,7 | – | 5,5 N [1.2 lb] | 7,0 N [1.6 lb] | ||||
PIN TRAVEL [mm] CARRERA DEL RODILLO[mm] STIFTLAUFWEG [mm]
COURSE DE BROCHE [mm] CORSA PERNO [mm] PERCURSO DO PINO [mm]
| Ag | CAT Au | FP | OP1 | OP2 | PO1 | PO2 | DT1 | DT2 | OT | MOF | MDF |
| GSA*01B | GSA*07B | 37,5 | 35 | – | 33 | – | 0,9 | – | 30,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*03B GSA*42B GSA*44B GSA*46B | GSA*33B GSA*43B GSA*45B GSA*47B | 37,5 | 35 | 34 | 33 | – | – | – | 30,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*04B | GSA*34B | 37,5 | 34 | 35 | 32 | – | – | – | 30,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*06B GSA*40B | GSA*36B GSA*41B | 37,5 | 35 | – | 33 | – | – | – | 30,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*20B | GSA*22B | 37,5 | 35 | – | 33 | – | 0,9 | – | 30,5 | 16 N [3.6 lb] | 37 N [8.2 lb] |
| GSA*21B | GSA*28B | 37,5 | 35 | 33,8 | 33 | 31,8 | 0,8 | 0,8 | 30,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*01C | GSA*07C | 50,5 | 48 | – | 46 | – | 0,9 | – | 43,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*03C GSA*42C GSA*44C GSA*46C | GSA*33C GSA*43C GSA*45C GSA*47C | 50,5 | 48 | 47 | 46 | – | – | – | 43,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*04C | GSA*34C | 50,5 | 47 | 48 | 45 | – | – | – | 43,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*06C GSA*40C | GSA*36C GSA*41C | 50,5 | 48 | – | 46 | – | – | – | 43,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*20C | GSA*22C | 50,5 | 48 | – | 46 | – | 0,9 | – | 43,5 | 16 N [3.6 lb] | 37 N [8.2 lb] |
| GSA*21C | GSA*28C | 50,5 | 48 | 46,8 | 46 | 44,8 | 0,8 | 0,8 | 43,5 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*01D | GSA*07D | 65,2 | 61 | – | 56,9 | – | 1,7 | – | 52 | 9,5 N [2.1 lb] | 12 N [2.7 lb] |
| GSA*03D GSA*42D GSA*44D GSA*46D | GSA*33D GSA*43D GSA*45D GSA*47D | 65,2 | 61 | 59,1 | 56,9 | – | – | – | 52 | 9,5 N [2.1 lb] | 12 N [2.7 lb] |
| GSA*04D | GSA*34D | 65,2 | 59,1 | 61 | 55 | – | – | – | 52 | 9,5 N [2.1 lb] | 12 N [2.7 lb] |
| GSA*06D GSA*40D | GSA*36D GSA*41D | 65,2 | 61 | – | 56,9 | – | – | – | 52 | 9,5 N [2.1 lb] | 12 N [2.7 lb] |
| GSA*20D | GSA*22D | 65,2 | 61 | – | 56,9 | – | 1,7 | – | 52 | 9,5 N [2.1 lb] | 16,4 N [3.7 lb] |
| GSA*21D | GSA*28D | 65,2 | 61 | 58,6 | 58 | 57,4 | 1,6 | 1,6 | 52 | 9,5 N [2.1 lb] | 12 N [2.7 lb] |
| GSA*01R | GSA*07R | 44,6 | 42,1 | – | 40,1 | – | 0,9 | – | 37,6 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*03R GSA*42R GSA*44R GSA*46R | GSA*33R GSA*43R GSA*45R GSA*47R | 44,6 | 42,1 | 41,1 | 40,1 | – | – | – | 37,6 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*04R | GSA*34R | 44,6 | 41,1 | 42,1 | 39,1 | – | – | – | 37,6 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*06R GSA*40R | GSA*36R GSA*41R | 44,6 | 42,1 | – | 40,1 | – | – | – | 37,6 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| GSA*20R | GSA*22R | 44,6 | 42,1 | – | 40,1 | – | 0,9 | – | 37,6 | 16 N [3.6 lb] | 37 N [8.2 lb] |
| GSA*21R | GSA*28R | 44,6 | 42,1 | 40,9 | 40,1 | 38,9 | 0,8 | 0,8 | 37,6 | 16 N [3.6 lb] | 27 N [6.0 lb] |
| Designation and Utilization Category | Rated Operational Current Ie [A] at Rated Operational Voltage Ue [V] | VA Rating | |||||||
| 120 V | 240 V | 380 V | 480 V | 500 V | 600 V | Make | Break | ||
| AC15 | A600 | 6 A | 3 A | 1,9 A | 1,5 A | 1,4 A | 1,2 A | 7200 | 720 |
| AC15 | A300 | 6 A | 3 A | – | – | – | – | 7200 | 720 |
| DC13 | Q300 | 0,55 A | 0,27 A | – | – | – | – | 69 | 69 |
| Rated Thermal Current [Ith] 10 A | |||||||||
| Gold-plated Contacts 1 V, 10 mA min.; 50 V, 100 mA max. | |||||||||
| Rated Impulse Withstand [Uimp] 2500 V | |||||||||
| Rated Insulation Voltage [Ui] 300 V, 500 V, 600 V Maximum Fuse Rating 10 A quick acting | |||||||||
| Sealing IP66/67; Enclosure Type 1, 4, 12, 13 | |||||||||
| Operating Temperature Range -25 °C to 85 °C [-13 °F to 185 °F] Storage Temperature Range -40 °C to 85 °C [-40 °F to 185 °F] MCTF [Mechanical Life] >1,000,000 cycles with single-sided confidence limit of 100 % MCTF [Electrical Life] >25,000 cycles with single-sided confidence limit of 100 % Highest SIL Capability: SIL3 (HFT:1), IEC 61508-2: 2010 Proof Test Interval: 1 Year | |||||||||
