C7110C1001/D1009
Wall Modules
Instruction Manual
C7110C1001 Wall Modules

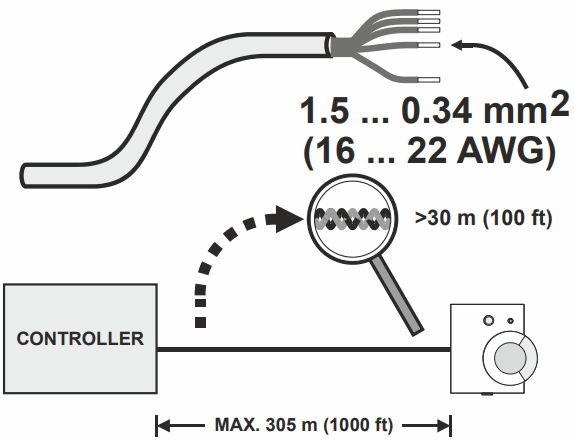

| A. CAUTION WARNING Risk of electric shock or equipment damage! ► Do not touch any live parts. ► Disconnect power supply before making connections. ► Do not reconnect power until installation is complete. ► Observe precautions for handling electrostatic sensitive devices.  | B. WIRING |

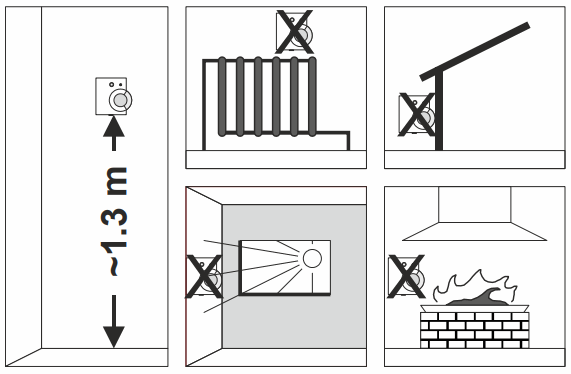

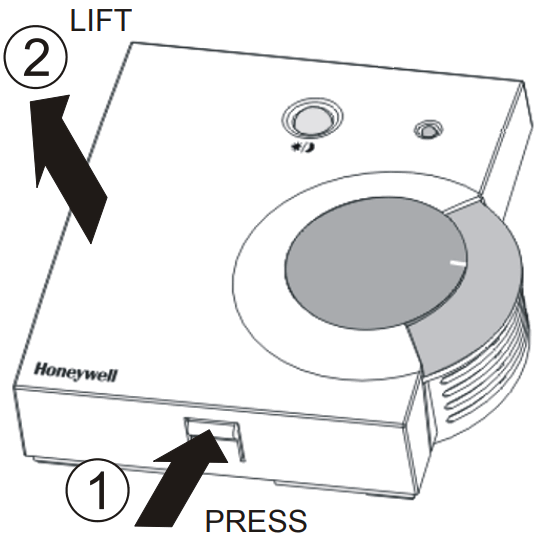

C. REMOVING COVER | D. INSTALLATION POSITION |

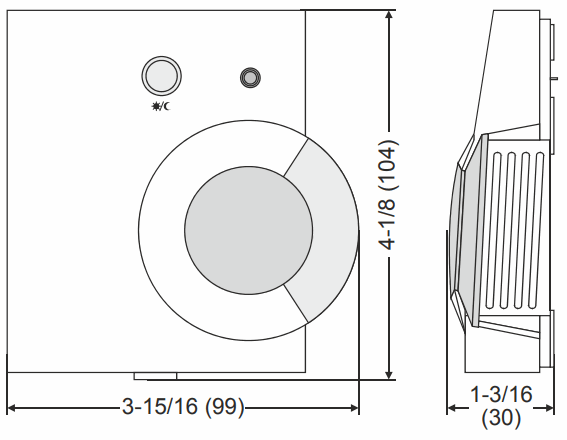

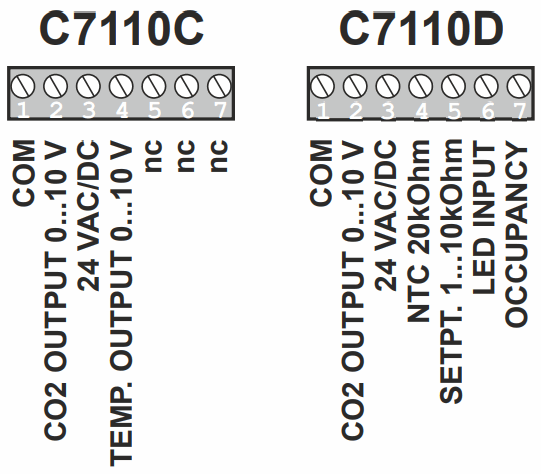

E. DIMENSIONS | F. WIRING TERMINALS |

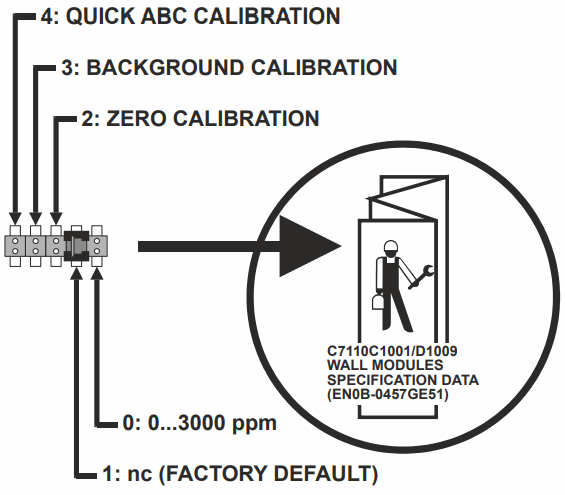

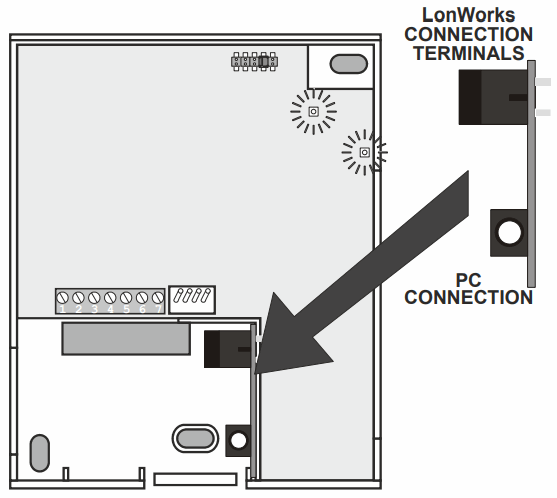

G. CONFIGURATION JUMPER | H. T7460-LONJACK (OPTIONAL) |
