Honeywell TR80 Wall Module Instruction Manual
INSTALLATION
⚠ CAUTION
Read these instructions carefully. Failure to follow them could damage the product or cause a hazardous condition. Installer must be trained, experienced service technician.
WEEE Directive 2012/2019/EC Waste Electrical and Electronic Equipment directive.
At the end of the product life dispose of the packaging and product in a corresponding recycling center. Do not dispose of the unit with the usual domestic refuse. Do not burn the product.

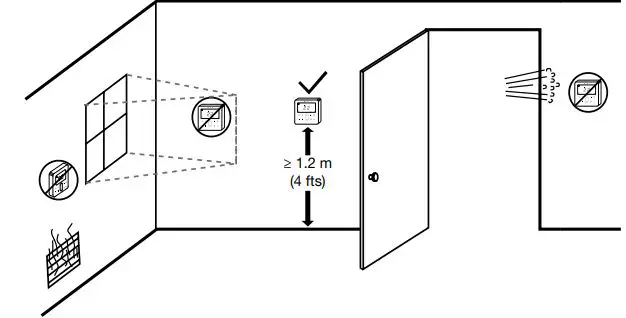

MOUNTING

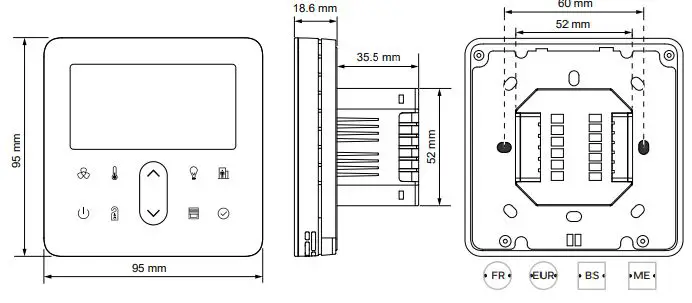

DIMENSIONS

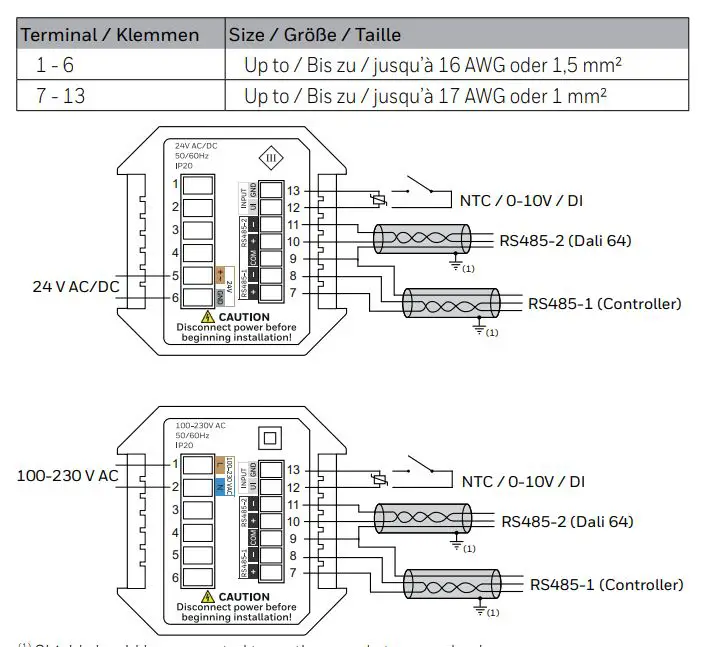

WIRING TERMINALS
⚠ CAUTION
Electrical Shock or Equipment Damage Hazard. Can shock individuals or short equipment circuitry. Disconnect power supply before Installation. All wiring must comply with local electrical codes and ordinances or as per below wiring connections.
(1) Shield should be connected to earth ground at one end only.

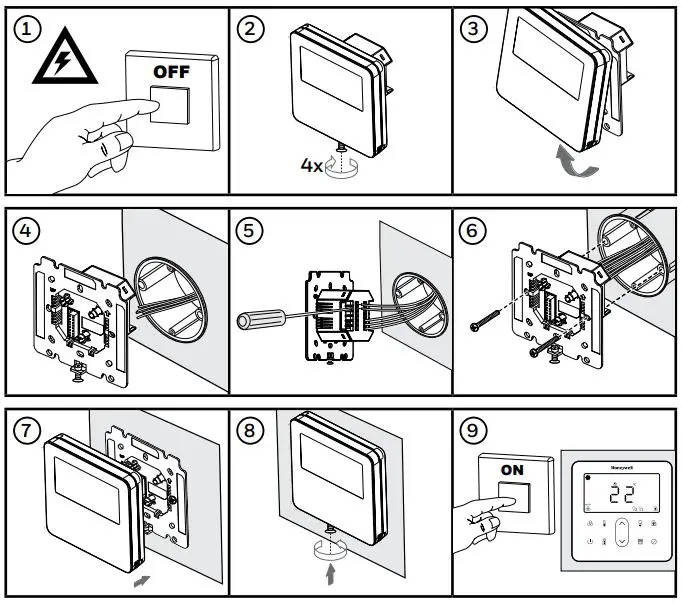

INSTALLATION INSTRUCTION
Mounting Instructions
UK Importer Address
Honeywell Building Technologies
Building 5 Carlton Park
King Edward Avenue
Narborough, Leicester LE19 3EQ.
EU Importer Address
Honeywell GmbH
Strahlenberger Str. 110-112
63067 Offenbach am Main
Germany
® U.S. Registered Trademark Copyright© 2021 Honeywell Inc. ®All Rights Reserved.
Honeywell - The Future Is What We Make It
TR80 MODBUS WALL MODULES
