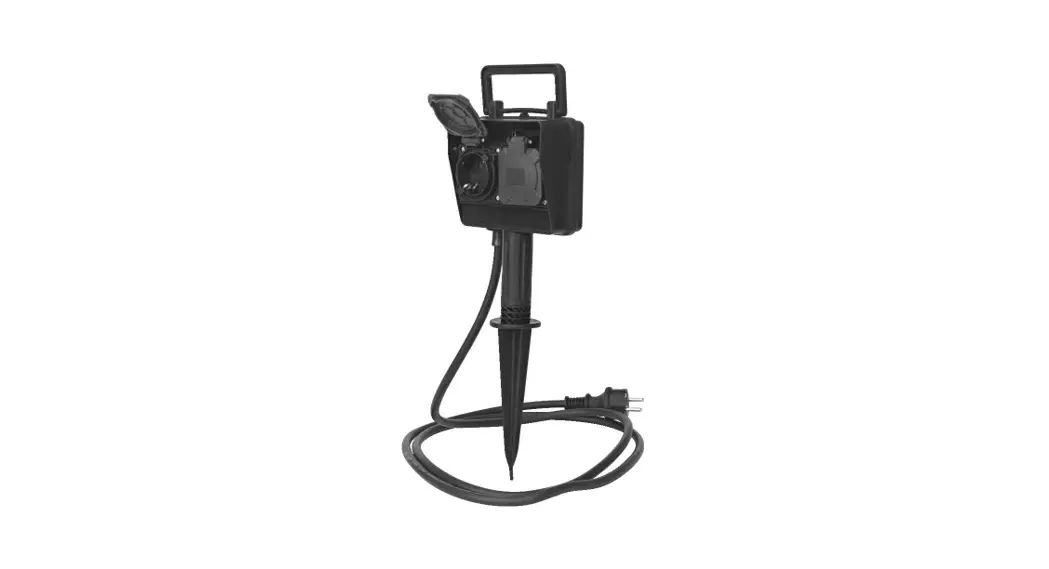

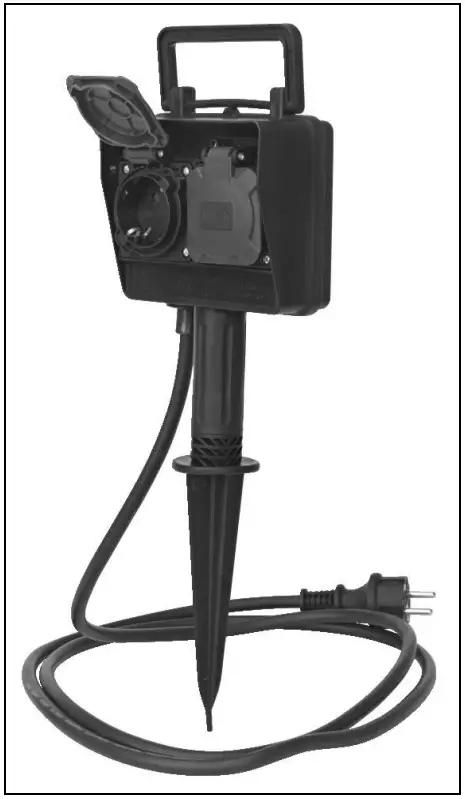

401131 Multiway Socket with Spike
Instruction Manual
Operating Instructions for Multiway Socket with Spike
Operating instructions (Translation of the original instructions)
Care for the environment!
Recycle discarded products in accordance with local regulations.
Jula reserves the right to make changes.
For the latest version of operating instructions, see www.jula.com
Jula AB, Box 363, SE-532 24 SKARA
© Jula AB
SAFETY INSTRUCTIONS
Read the Operating Instructions carefully before use!
- Disconnect the power supply with the fuse or circuit breaker before performing the electrical installation. All installation work must be performed by a qualified electrician.
- Can be used outdoors Press the earth spike into the ground so that it is stable, but not longer than the depth stop (fig. 1).
- When used outdoors the product must be connected to the mains supply via a residual current device with a tripping current of 5 30 mA.
- The product must not be placed in hollows where water can accumulate and penetrate.
- Only clean the product with a damp cloth.
- Regularly check the power cord for damage. If the power cord is damaged it must be replaced by a qualified electrician.
TECHNICAL DATA
| Rated voltage | 250 VAC, 50 Hz, 16 A |
| Max. temperature | —10 to 40 °C |
| Protection rating | IP44 |
USE
Setting up When used outdoors the product must be connected to the mains supply via a residual current device with a tripping current of 5 30 mA. Press the earth spike into the ground so that it is stable but not longer than the depth stop.

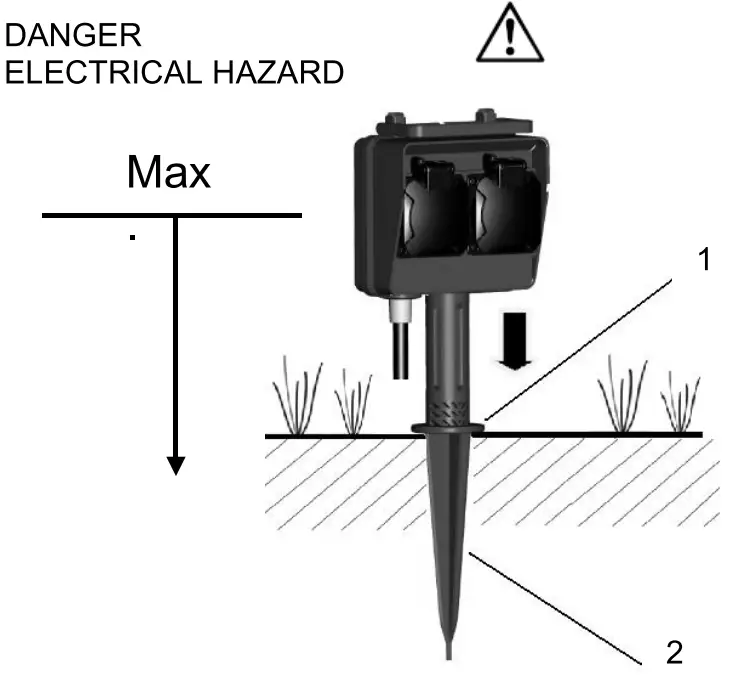

- Press the earth spike (2) into the ground down to the depth stop (1).
- Make sure the product is stable.
Jula – products for home and garden
