QUICK REFERENCE GUIDE > RF605QDUVX2
Freestanding Quad Door
Refrigerator Freezer, 90.5cm,
538L, Ice & Water

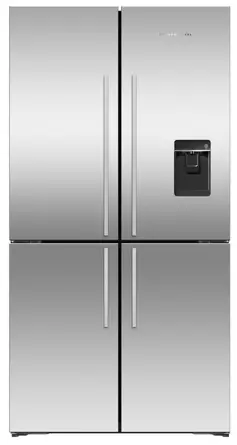

RF605QDUVX2 90.5cm 538L Freestanding Quad Door Refrigerator Freezer
Series 7 | Contemporary
Stainless Steel | French hingeFeaturing three separate compartments, including an independent Variable Temperature Zone, for unbelievably flexible storage.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Variable Temperature Zone lets you change a compartment to Fridge, Chill, Soft Freeze, or Freezer for optimal storage
- The spacious bottom freezer with easy-slide internal drawers to separate storage
- Door water dispenser and internal ice maker

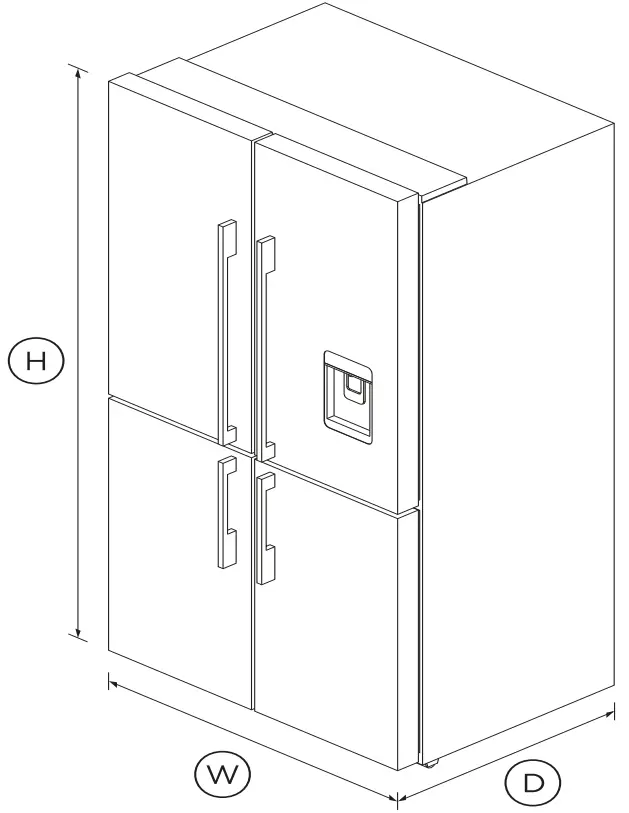

DIMENSIONS
| Height | 1790mm |
| Width | 905mm |
| Depth | 688mm |
FEATURES & BENEFITS
VARIABLE TEMPERATURE ZONE
When it comes to optimal food preservation, one temperature does not fit all. Variable Temperature Zones give you full control over the way you care for food. At the touch of a button, easily convert the lower right compartment to Freezer, Soft Freeze, Chill, or Fridge mode, to best suit different types of food. Adjust zones for maximum everyday convenience, or change modes to provide additional chilling capacity for special occasions.
CHILL MODE
Keep ready-to-eat food fresher for longer with Chill Mode (-1.5 to 0°C). Chill Mode is a perfect solution for everyday life. It keeps meats, poultry, and fish as cool as possible, retaining vital freshness, and helps food retain its condition for around three times longer than Fridge Mode. It’s also great for entertaining. Set a zone to Chill Mode to quickly bring beverages down to serving temperature.
SOFT FREEZE MODE
Soft freeze (-10 to -6°C) is perfect for food that will be consumed soon – but not right away. Set a zone to Soft Freeze Mode and enjoy optimal food storage and everyday convenience. Soft frozen food requires only a quick thaw rather than a full defrost. It is the ideal setting for easy portioning, such as cut loaves of bread, soups, and even cured meats, or for serving straight from the compartment.
ACTIVESMART™ FOOTCARE
ActiveSmart™ Foodcare learns how you live. It is a technology that understands how you use your fridge and adjusts the temperature, airflow, and humidity inside to help keep food fresher for longer.
BEAUTY OF CHOICE
With the choice of stylish stainless steel or elegant black, you can choose the finish that complements your kitchen design best.
DESIGN QUALITY
Our refrigerators are designed and built using robust, quality materials, with stainless steel exteriors and solid glass for the interior shelving.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off when you need to free up freezer space, or during busy times, use the boost feature to increase ice production.
SPECIFICATIONS
| Accessories | |
| Replacement water filter | 847200 |
| Capacity | |
| Volume | 538L |
| Volume freezer | 98L |
| Volume refrigerator | 341L |
| Volume variable temperature | 99L |
| Consumption | |
| Energy rating | 3.5 star |
| Energy usage | 460kWh/year |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | • |
| Adjustable glass shelves | 4 |
| Cantilevered glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front leveling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Gallon door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Water Filter | Part number 847200 |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Full extension clear bins | 3 |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Frost free | • |
| Humidity control system | • |
| Internal replaceable water filter | • |
| Inverter controlled compressor | • |
| R600a refrigerant | • |
| Sabbath mode | • |
| Variable temperature | • |
| Variable temperature zones | 2 |
| Power requirements | |
| Rated current | 1.8A |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 688mm |
| Height | 1790mm |
| Height to top of the cabinet | 1775mm |
| Height to top of the door | 1790mm |
| Width | 905mm |
Warranty
| Parts and labor | 2 years |
| Sealed system parts only | 5 years |
| SKU | 26092 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently vailable. ? Fisher & Paykel Appliances Ltd 2020
