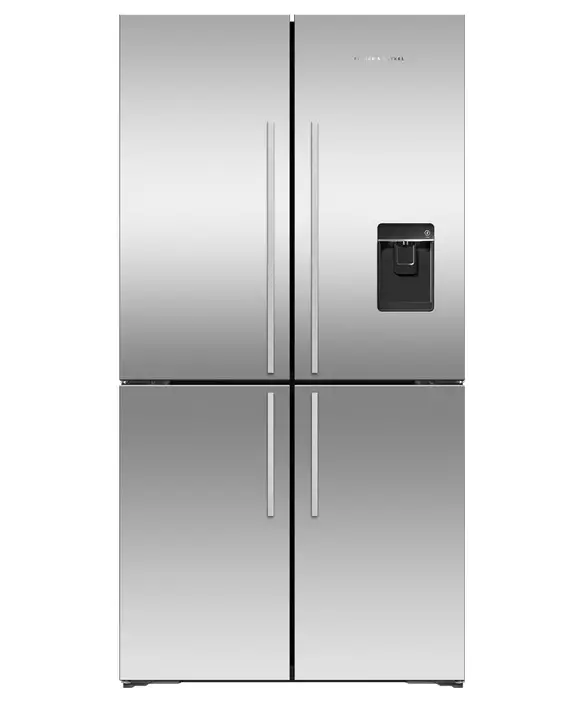

RF605QDUVX1 90.5cm Freestanding Quad Door Refrigerator Freezer
User Guide
Featuring three separate compartments, including an independent Variable Temperature Zone, for unbelievably flexible storage.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Variable Temperature Zone lets you change a compartment to Fridge, Chill, Soft Freeze, or Freezer for optimal storage.
- The spacious bottom freezer with easy-slide internal drawers to separate storage
- Door water dispenser and internal ice maker

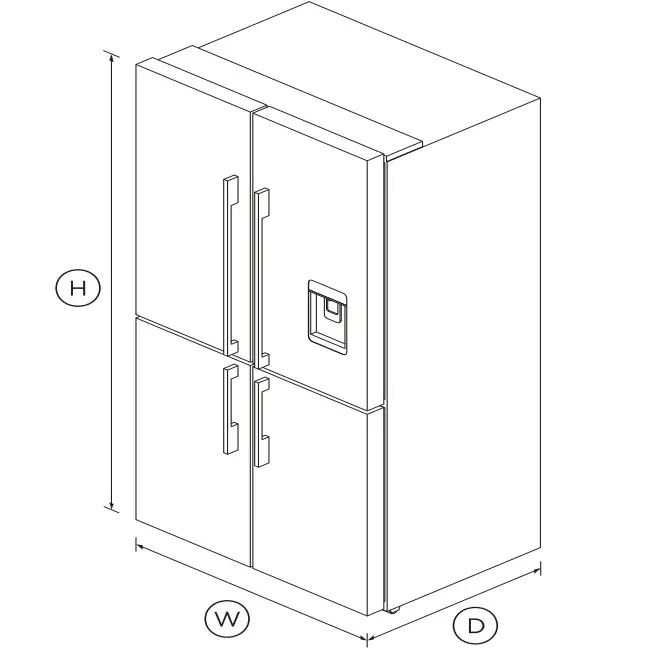

DIMENSIONS
| Height | 1790mm |
| Width | 905mm |
| Depth | 688mm |
SPECIFICATIONS
| Capacity | |
| Total net volume | 538L |
| Volume freezer | 98.5L |
| Volume refrigerator | 341L |
| Volume variable temperature | 98.5L |
| Consumption | |
| Energy rating | F |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 4 |
| Cantilevered glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Spill proof removable bins | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Water Filter | Part number 847200 |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Full extension clear bins | 3 |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Frost free | • |
| Frost free freezer | • |
| Humidity control system | • |
| Internal replaceable water filter | • |
| Inverter controlled compressor | • |
| Noise emissions | 40dBA |
| Noise emissions class | C |
| R600a refrigerant | • |
| Sabbath mode | • |
| Variable temperature | • |
| Variable temperature zones | 2 |
| Power requirements | |
| Amperage | 1.8A |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 688mm |
| Height | 1790mm |
| Height to top of the cabinet | 1775mm |
| Height to top of the door | 1790mm |
| Width | 905mm |
| Warranty | |
| Parts and labor | 5 years |
| Sealed system parts only | 5 years |
| SKU | 26555 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020.
