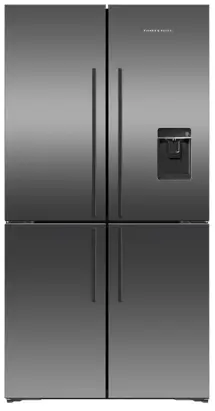

RF605QDUVB2 Freestanding Quad Door Refrigerator Freezer 90.5 cm 538 L Ice and Water
User Guide
Series 7 | Contemporary
Black Stainless Steel | French hinge
RF605QDUVB2 Freestanding Quad Door Refrigerator Freezer 90.5 cm 538 L Ice and Water
With brilliant LED lighting and three independent compartments including a Variable Temperature Zone, for truly flexible storage.
- Active Smart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Door water dispenser and internal ice maker with boost function
- Variable Temperature Zone lets you change a compartment to Fridge, Chill, Soft Freeze or Freezer for optimal storage

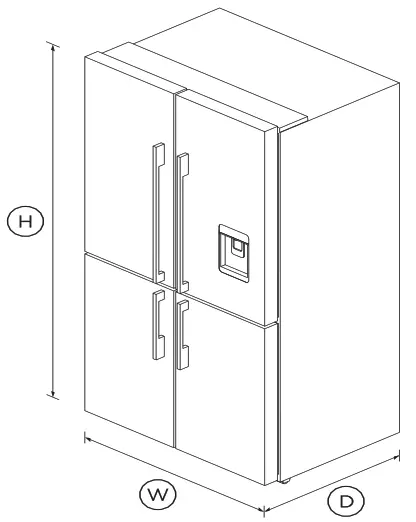

DIMENSIONS
| Height | 1790 mm |
| Width | 905 mm |
| Depth | 688 mm |
FEATURES & BENEFITS
Flexible storage
Three large, independent compartments provide ample storage space. Easily adjustable cantilevered shelving in the refrigerator and full extension bins in the freezer provide maximum storage flexibility. A Variable Temperature Zone in the lower right compartment provides true freezer temperature of -18°C.
Active Smart™ Food care
Active Smart™ Food care learns how you live. It is technology which understands how you use your fridge and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
Ultra slim water dispenser
The slimline water dispenser is easy to use. The angled water delivery means that almost any size or shape of vessel can be filled. The slimline design maximizes storage space inside the door.
Ice maker
The internal ice maker delivers fresh ice to a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times boost ice production by up to 30%
Design quality
Our refrigerators are built using quality materials. We use real stainless steel, and solid glass for the interior shelving.
Thoughtfully designed bins feature smooth, fully extendable telescopic runners for full access to storage space.
Beauty of choice
With the choice of stylish stainless steel or elegant black, you can choose the finish that complements your kitchen design best.
SPECIFICATIONS
| Accessories (sold separately) | |
| Replacement water filter | 847200 |
| Capacity | |
| Total gross capacity | 605 L |
| Volume | 538 L |
| Volume freezer | 98 L |
| Volume refrigerator | 341 L |
| Volume variable temperature | 99 L |
| Consumption | |
| Energy rating | 3.5 stars |
| Energy usage | 460 kWh/year |
| Freezer features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Full extension clear bins | 3 |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Performance | |
| Active Smart™ Food care | • |
| Frost free | • |
| Humidity control system | • |
| Internal replaceable water filter | • |
| Inverter controlled compressor | • |
| R600a refrigerant | • |
| Sabbath mode | • |
| Variable temperature | • |
| Power Requirements | |
| Rated current | 1.8 A |
| Supply voltage | 220 – 240V |
| Product dimensions | |
| Depth | 688 mm |
| Depth (excluding handles) | 688 mm |
| Height | 1790 mm |
| Height to top of cabinet | 1775 mm |
| Height to top of door | 1790 mm |
| Minimum air clearance – at rear | 30 mm |
| Minimum air clearance – each | 20 mm |
| Minimum air clearance – on top | 20 mm |
| Width | 905 mm |
| Refrigerator features | |
| Adjustable door shelves | 6 |
| Adjustable glass cantilevered | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| Gallon door shelves | 2 |
| LED lighting | • |
| Rear rollers | • |
| Smart Touch control panel | • |
| Split level cantilevered shelves | 2 |
| Stack able bottle holders | 4 |
| Ultra slim water dispenser | • |
| Warranty | |
| Sealed system parts only | 5 years |
| SKU | 26094 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
