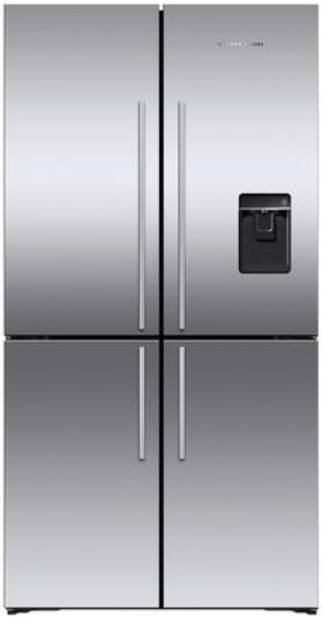

FISHER PAYKEL RF203QDUVX1 Freestanding Quad Door Refrigerator Freezer, 36 Inch, 18.9 cu ft, Ice & Water User Guide
Introduction
With brilliant LED lighting and three independent compartments including a Variable Temperature Zone, for truly flexible storage.
- Active Smart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
- Door water dispenser and internal ice maker with boost function
- Variable Temperature Zone lets you change a compartment to Fridge, Chill, Soft Freeze or Freezer for optimal storage.
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods
DIMENSIONS
| Height | 70 1/2″ |
| Width | 35 5/8″ |
| Depth | 27 1/16″ |
FEATURES & BENEFITS
VARIABLE TEMPERATURE ZONE
At the touch of a button, easily convert the lower right compartment to suit different food types, giving you storage flexibility for everyday needs as well as special occasions.
Choose from Freezer, Soft Freeze, Chill and Fridge modes.
FLEXIBLE STORAGE
Three large, independent compartments provide ample storage space. Easily adjustable cantilevered shelving in the refrigerator
and full extension bins in the freezer provides maximum storage flexibility. A Variable Temperature Zone in the lower right
compartment provides a true freezer temperature of -0.4°F.
ACTIVESMART™ FOODCARE
Active Smart™ Food care learns how you live. It is technology which understands how you use your fridge and adjusts
temperature, airflow and humidity inside to help keep food fresher for longer.
ULTRA SLIM WATER DISPENSER
The slimline water dispenser is easy to use. The angled water delivery means that almost any size or shape of vessel can be
filled. The slimline design maximizes storage space inside the door.
ICE MAKER
The internal ice maker delivers fresh ice to a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times boost ice production by up to 30%.
DESIGN QUALITY
Our refrigerators are built using quality materials. We use real stainless steel, and solid glass for the interior shelving.
Thoughtfully designed bins feature smooth, fully extendable telescopic runners for full access to storage space.
EASY ONE-TOUCH CONTROL PANEL
Control panels for the refrigerator and freezer are conveniently located inside the their respective compartments, allowing you
to view and modify the features and options to suit any occasion.
The Variable Temperature Zone control is on the top of the compartment door so you can easily select your desired food
mode or adjust manually.
SPECIFICATIONS
| Accessories | |
| Replacement water filter | 847200 |
| Capacity | |
| Total gross capacity | 19cu ft |
| Volume freezer | 3.45cu ft |
| Volume refrigerator | 12.1cu ft |
| Volume variable temperature | 3.45cu ft |
| Features | |
| Adjustable door shelves | 6 |
| Cantilevered glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front levelling feet | • |
| Fruit and vegetable bins | 2 |
| Full extension runners | • |
| LED lighting | • |
| Rear rollers | • |
| Smart Touch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Wi-Fi connectivity | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Full extension clear bins | 3 |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Performance | |
| Active Smart™ Food care | • |
| Frost free freezer | • |
| Humidity control system | • |
| Internal replaceable water filter | • |
| Inverter controlled compressor | • |
| R600a refrigerant | • |
| Sabbath mode | • |
| Variable temperature | • |
| Product dimensions | |
| Depth | 27 1/16″ |
| Height | 70 1/2″ |
| Minimum air clearance – at rear | 1 3/16″ |
| Minimum air clearance – each | 1 3/16″ |
| Minimum air clearance – on top | 1 3/16″ |
| Width | 35 5/8″ |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 26554 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
