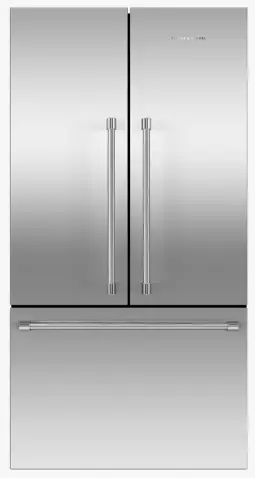

RF201ACJSX1_N Freestanding French Door Refrigerator Freezer, 36 Inch, 20.1 cu ft, Ice
User Guide
RF201ACJSX1_N Freestanding French Door Refrigerator Freezer, 36 Inch, 20.1 cu ft, Ice
Series 7 | Professional
Stainless Steel | French hinge
Styled like a refrigerator found in a professional kitchen, with serious storage capacity and stylish stainless steel finish.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Internal ice maker with boost for busy times
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods

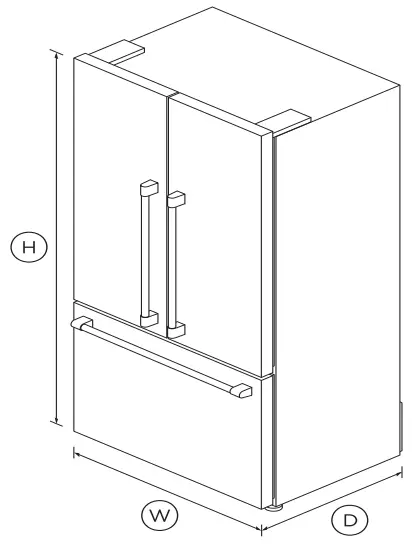

DIMENSIONS
| Height | 70 15/32″ |
| Width | 35 7/16″ |
| Depth | 27 3/8″ |
FEATURES & BENEFITS
ACTIVESMART™ FOODCARE
ActiveSmart™ Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
DESIGN QUALITY
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators, hidden hinges and solid glass for shelving.
CLEVER ENERGY
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean. Our flexible shelving also gives you more storage options.
HUMIDITY CONTROL
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
EASY CLEANING
Spill-safe secure glass shelves easily capture any drips or leaks.
SPECIFICATIONS
| Accessories | |
| Matching Replacement Water | FWC3 |
| Capacity | |
| Total gross capacity | 20.1cu ft |
| Volume freezer | 5.5cu ft |
| Volume refrigerator | 14.6cu ft |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 532kWh/year |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 2 |
| Covered door shelves | 2 |
| Deli storage bins | 2 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Stackable bottle holders | 4 |
| Water Filter | 836848 |
| Wi-Fi connectivity | • |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 27 3/8″ |
| Height | 70 15/32″ |
| Width | 35 7/16″ |
| Warranty | |
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
| SKU | 26304 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
