RF201ACUSX1_N 36 Inch Freestanding French
Door Refrigerator Freezer 20.1 cu ft Ice & Water
User Guide
RF201ACUSX1_N 36 Inch Freestanding French Door Refrigerator Freezer 20.1 cu ft Ice & Water
QUICK REFERENCE GUIDE > RF201ACUSX1_N
Freestanding French Door Refrigerator Freezer, 36″, 20.1 cu ft, Ice & Water
Series 7 | Professional Stainless
Steel | French hingeStyled like a refrigerator found in a professional kitchen, with serious storage capacity and stylish stainless steel finish.
- ActiveSmartTM technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Door water dispenser and internal ice maker
- Spacious bottom freezer with full extension drawer gives easy access to frozen goods

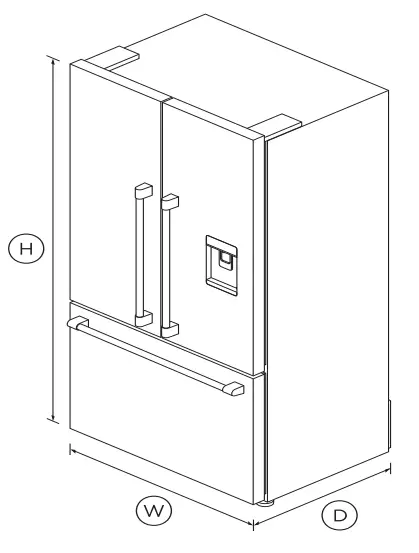

DIMENSIONS
| Height | 70 3/4″ |
| Width | 35 7/16″ |
| Depth | 27 3/8″ |
FEATURES & BENEFITS
ActiveSmartTM Foodcare
ActiveSmartTM Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators, hidden hinges and solid glass for shelving.
Clever energy
Your refrigerator adapts to daily use by cooling and defrosting only when needed. This means your refrigerator uses the energy it needs without compromising on food care.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
Humidity control
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
Easy cleaning
Spill-safe secure glass shelves easily capture any drips or leaks.
SPECIFICATIONS
| Accessories | |
| Contemporary round handle | 25377 |
| Matching Replacement Water | FWC3 |
| Capacity | |
| Total gross capacity | 20.1cu ft |
| Volume freezer | 5.5cu ft |
| Volume refrigerator | 14.6cu ft |
| Consumption | |
| Energy rating | Energy star |
| Energy usage | 532kWh/year |
| Features | |
| Adjustable door shelves | 6 |
| Adjustable glass shelves | 3 |
| Covered door shelves | 2 |
| Deli storage bins | 2 |
| Door alarm | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| SmartTouch control panel | • |
| Soft close doors | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Water Filter | 836848 |
| Freezer Features | |
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
| LED lighting | • |
| Performance | |
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Sabbath mode | • |
| Power requirements | |
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
| Product dimensions | |
| Depth | 27 3/8″ |
| Height | 70 3/4″ |
| Width | 35 7/16″ |
| Warranty | |
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 26305 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
A PEACE OF MIND SALE
24 Hours 7 Days a Week
Customer Support
T 1.888.936.7872
Wwww.fisherpaykel.com
Date: 14.07.2022 > 2
