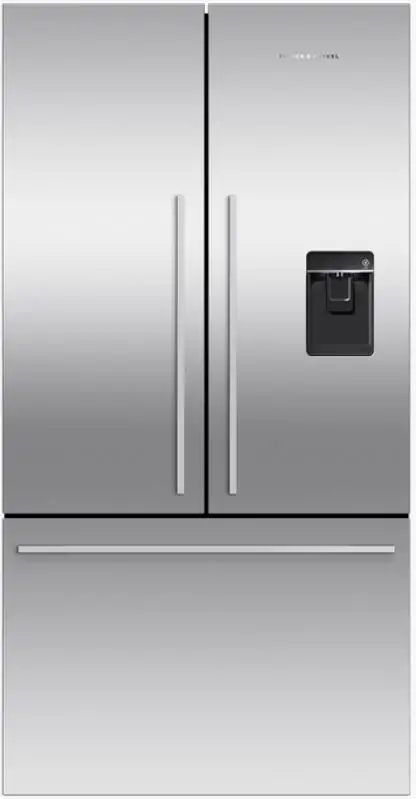

FISHER PAYKEL RF610ADUX5 Freestanding French Door Refrigerator Freezer 90cm 569L Ice and Water

FISHER PAYKEL RF610ADUX5 Freestanding French Door Refrigerator Freezer 90cm 569L Ice and Water

Series 7 | Contemporary
Stainless Steel | French hinge

You’ll have plenty of flexible storage space in this striking, large capacity French Door refrigerator freezer.

  • ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature.
  • Spacious bottom freezer with full extension drawer gives easy access to frozen goods.
  • Door water dispenser and internal ice maker

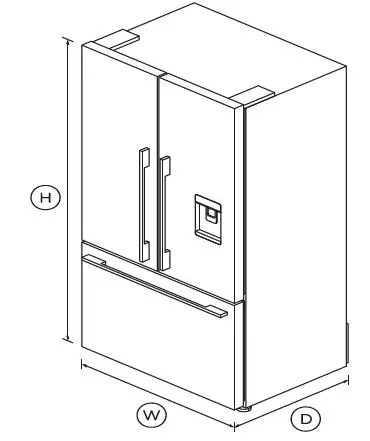

DIMENSIONS

Height1790mm
Width900mm
Depth695mm

FISHER PAYKEL RF610ADUX5 Freestanding French Door Refrigerator Freezer 90cm 569L Ice and Water-1

FEATURES & BENEFITS

ACTIVESMART™ FOODCARE
ActiveSmart™ Foodcare learns how you live. It’s technology that understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.

HUMIDITY CONTROL
Your fruit and veges need different environments. The humidity control slides in each storage bin create a microclimate that helps keep food fresher for longer.

ICE MAKER
Fresh ice is always available for you in a dedicated freezer bin.
Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.

DESIGN QUALITY
Our fridges are designed and built using quality materials. We use real stainless steel on our fridges and solid glass for shelving.

SIMPLE STORAGE
This refrigerator is designed to make it simple for you to store, access and remove food. Storage bins give you full access inside when they’re pulled open and can be easily removed to clean.
Our flexible shelving also gives you more storage options.

WATER ON TAP
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.

COMPLEMENTARY DESIGN
With their premium handle styling and stainless steel finish, our fridges are designed to match the rest of Fisher & Paykel’s kitchen appliance family.

SPECIFICATIONS

Accessories

Replacement water filter847200

Capacity

Volume569L
Volume freezer152L
Volume refrigerator417L

Consumption

Energy rating3.5 star
Energy usage453kWh/year

Features

Adjustable door shelves6
Adjustable glass shelves2
Cantilevered Shelves2
Covered door shelves2
Door alarm
Fruit and vegetable bins2
LED lighting
SmartTouch control panel
Stackable bottle holders4
Ultra slim water dispenser

Freezer Features

Automatic ice maker
Bottle chill
Door alarm
Fast freeze
Ice Boost
Ice bin and scoop
LED lighting
Large plastic bins
Small plastic bins

Performance

  • ActiveSmart™ Foodcare •
  • Adaptive defrost •
  • Frost free freezer •
  • Humidity control system •
  • Inverter controlled compressor •
  • R600a refrigerant •
  • Sabbath mode •

Product dimensions

Depth695mm
Height1790mm
Height to top of cabinet1790mm
Width900mm

Warranty

Parts and labour2 years
Sealed system parts only5 years
SKU26501

This page’s product dimensions and specifications apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change anytime. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
