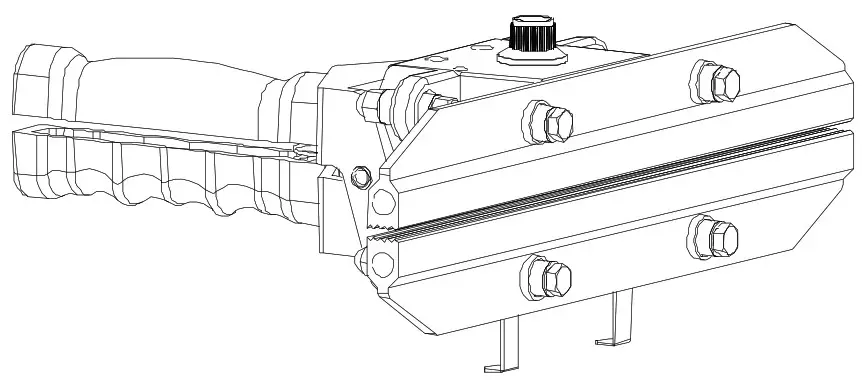

MANUAL FOR PORTABLE HEATING SEALER
FKR-200 300 400
- Read this manual carefully prior to use.
- Technology is subject to change without further notice.
SPECIFICATION.
- Power: A single phase current(AC)220V.50/60Hz
- ower consumption : 300W/400W/500W
- Sealing width : 10mm
- Sealing length : 200/300/400mm
- Temperature control : 0 150 (By bimetal)
- Heating type : Series type
- Preheatingg : ABT 1 minute
- Dimension : 300(W)*360(D)*125(H)mm
- Weight : ABT 1.4kg
A film available
Coating film, Metalized film, Laminated film on thermo-plastice film and Aluminum film, Foils or varnish film, wax coating film and so on.
Features
- It can be used at any place easily and it is handy to carry.
- It can seal a film regardless of its volume or size.
- With special materials for heating wire in heating jaws, the life of heating wire is much longer than other machines.
- With adjuster for heat temperature, user can control heating temperature according to user,s taste.
- With light material for sealing jaws, it is easy to carry it anywhere and to use in narrow place.
- With coating of special strong hardness for sealing jaws, it would not change in appearance for long thime using.
- It can seal special material like Aluminum film whose apperance will not be changed for long thime, and thick film which is impossible to be sealed by impulse sealer.

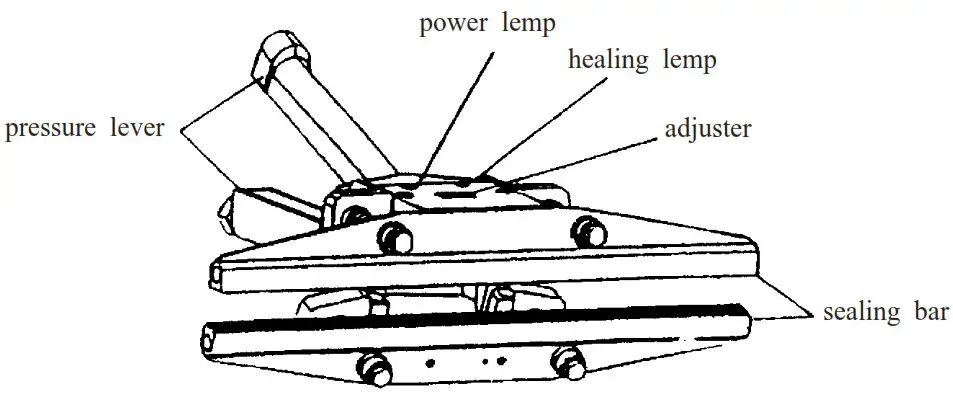

Title of parts

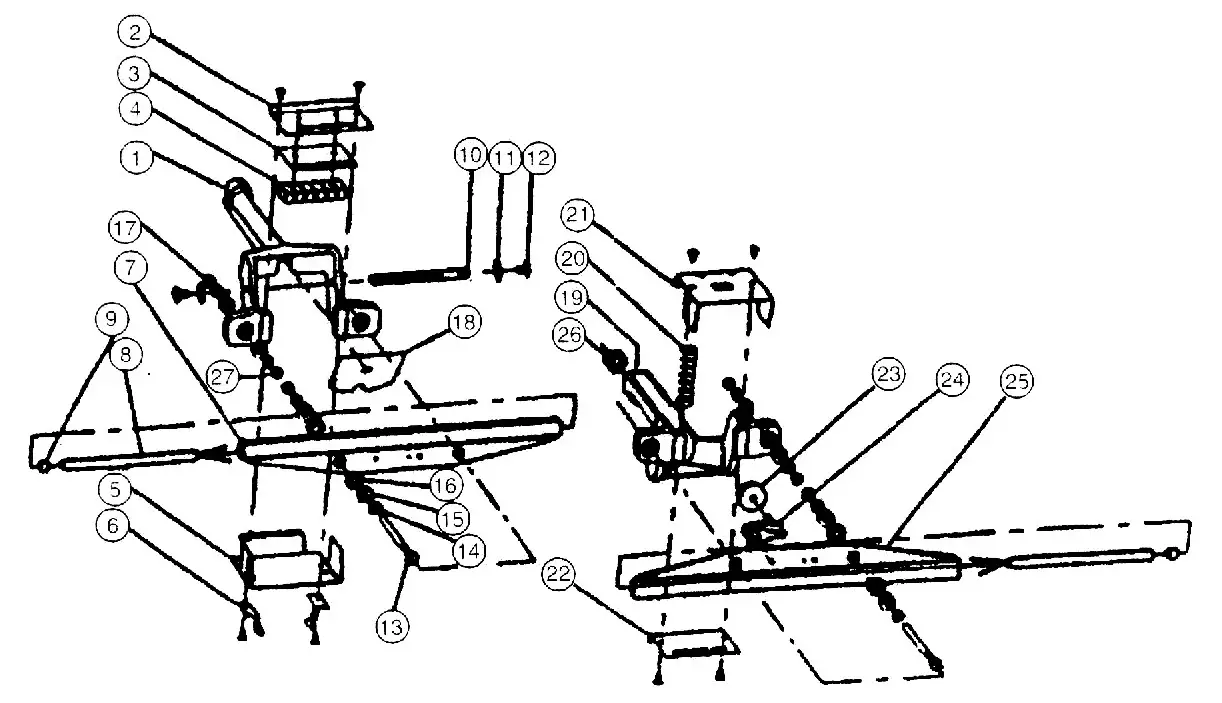

Disassemble
Part List
| NO | Name | Ouantity | Standard | NO | Name | Ouantity | Standard |
| 1 | Lever(up) | 1 | 15 | Epoxy washer | 16 | ||
| 2 | Lever cover(up) | 1 | 16 | Aluminum | 8 | ||
| 3 | Insulation plate | 1 | 17 | Nylon nut | 4 | ||
| 4 | Circuit set | 1 | 18 | Insulation cover | 1 | ||
| 5 | Below board | 1 | 19 | Lever(down) | 1 | ||
| 6 | Supporter | 2 | 20 | Spring | 1 | ||
| 7 | Heating bar(down) | 1 | 21 | Plate board | 1 | ||
| 8 | Heater | 4 | 22 | Lever cover | 1 | ||
| 9 | M10 Bolt | 4 | 23 | Volume | 1 | ||
| 10 | Shaft | 1 | 24 | Bimetal | 1 | ||
| 11 | Plain washer | 2 | 25 | Heating bar(up) | I | ||
| 12 | M6 Bolt | 2 | 26 | Code rock | 1 | ||
| 13 | Stainless bolt | 4 | 27 | Stainless nut | 8 | ||
| 14 | Plain washer(SUS) | 16 | 28 |
Troubles
| Trouble | Reason | Remark |
| No power and no heating | Disconnection of wire | |
| Power on but no heating | Cable of the heating part broken or heater broken | |
| Bad sealing | Uneven sealing bar | |
| Weak sealing | Low heating temperature, Low pressurization. Short pressing time | |
| Unable to control heat | Defected heat odjuster |
