Sealevel Ab1258.v4 Space Warmer User Manual

SPACE WARMER® KEROSENE/DIESEL
HEATERS WITH WHEELS
MODEL NO: AB1008.V4, AB1258.V4, AB1758.V4

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble-free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT IS CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

	Refer to instructions
	Warning! automatic start-up
	Warning! Hot surfaces
	Warning!

SAFETY

1.1. ELECTRICAL SAFETY

WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets, and any other connectors for wear or damage. You must ensure that the risk of electric shock is minimized by the installation of appropriate safety devices. A Residual Current Circuit Breaker (RCCB) should be incorporated into the main distribution board. You must also read and understand the following instructions concerning electrical safety.
Ensure that cables are always protected against short circuits and overload.
Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that none are loose.
Ensure that the voltage marked on the appliance matches the power supply to be used and that the plug is fitted with the correct fuse – see fuse rating at right.
DO NOT use worn or damaged cables, plugs, or connectors. Has any faulty item been repaired or replaced immediately by a competent electrician?
It is recommended that this heater is wired directly to a fused isolator switch. If, however, a plug is fitted, the following applies:
Fit a new plug according to the following instructions (the UK only).

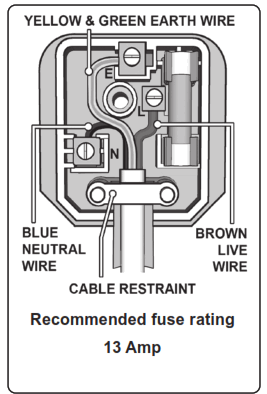

a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, and that the cable restraint is tight.

1.2. GENERAL SAFETY Read instructions carefully. Read and follow all instructions. Place instructions in a safe place for future reference.
DO NOT allow anyone who has not read these instructions to assemble, light, adjust or operate the heater.
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life.
Check that the heater is in sound condition and in good working order. Servicing must be performed by qualified operatives only. Take immediate action to repair or replace damaged parts. Use recommended parts only. Unapproved parts may be dangerous and will invalidate the warranty.
Only use clean kerosene or diesel (NOT BIO-DIESEL) to fuel your heater, in accordance with instructions contained in this manual.
‰ WARNING! Only use the heater in well-ventilated areas. Ensure continuous ventilation from outside of the building is provided to the heater operating area. Refer to 5.2 installations Maximum Opening Size. Unvented portable heaters use air (oxygen) from the area in which it is used. Adequate combustion and ventilation air must be provided.
‰ WARNING! DO NOT store or use compressed air cylinders, petrol, or other flammable liquids/gases in the vicinity of this or any other appliance.
‰ WARNING! fire, burning, and inhalation hazards. Keep solid combustibles such as building materials, paper, and cardboard away from the heater. Never use the heater in places that do or may contain volatile or airborne products such as petrol, solvents, paint thinner, dust particles, or unknown chemicals.
‰ WARNING! Direct-fired heaters may cause carbon monoxide (CO) poisoning when incorrectly used e.g. indoors without adequate air circulation, or if not working properly. CO poisoning may lead to death.
DO NOT use the heater in closed rooms, living areas, basements, or below ground level.
DO NOT allow untrained persons to operate the heater and DO NOT operate the heater without the cover.
DO NOT move or handle the heater when hot.
DO NOT leave the heater unattended when in use. Switch the heater off and unplug from the mains before leaving the work area.
DO NOT fill the fuel tank whilst the heater is running or still hot.
DO NOT overfill the fuel container. Wipe up any spilled fuel immediately.
DO NOT obstruct the air inlet (rear) and air outlet (front) of the heater. DO NOT use ductwork in front or at the rear of the heater.
DO NOT look into the exhaust end of the heater.
DO NOT allow children or animals near the heater when in use, or while hot.
‰ WARNING! not for recreational vehicle use.
▲ DANGER! the front outlet is very hot during operation. DO NOT touch the danger of burning.
‰ WARNING! RISK OF ELECTRIC SHOCK. DO NOT expose the heater to water spray, rain, dripping water, or wind.
DO NOT operate the heater when you are tired or under the influence of alcohol, drugs, or intoxicating medication.
DO NOT touch the heater outlet or dome when first switched off as these are very hot and will take time to cool.
Ensure that the heater is correctly turned off when not in use and stored in a safe, dry area, out of reach of children.
DO NOT unplug the heater to switch it off. Use the ON/OFF switch.
‰ WARNING! Improper maintenance can lead to poor combustion and soot production
‰ WARNING! IF YOU NEED ASSISTANCE OR HEATER INFORMATION SUCH AS AN INSTRUCTIONS MANUAL, LABELS, ETC. CONTACT THE MANUFACTURER.
NOTE: This appliance is not intended for persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

INTRODUCTION

35,000Btu/hr, 70,000Btu/hr Heat output Clean burning and proven pump system can operate with either kerosene or diesel. Stainless steel combustion chamber. Dual LED Display for ambient and thermostatically controlled desired temperature. Fitted with safety cut-outs and fuel gauge. Complies with rigorous standards.

SPECIFICATION

ASSEMBLY

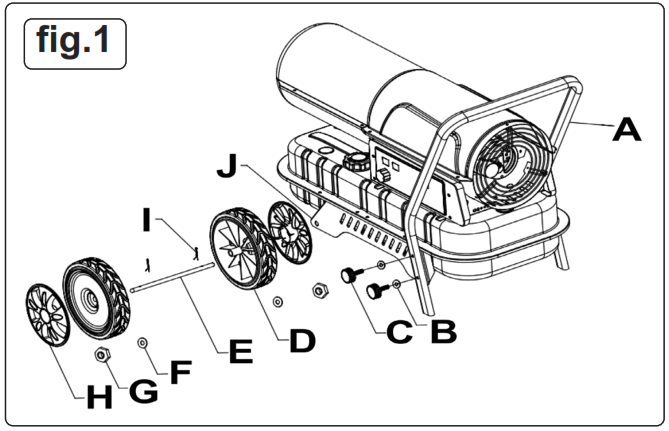

4.1. To assemble the heater, proceed as follows (see Fig.1):
4.2. Insert the wheel shaft E into the corresponding hole of the caster fixing plate J, insert the cotter I to the corresponding holes of the wheel shaft; put plain washer F to the  two sides of the shaft, and slide the wheel D over the wheel shaft E, screw the nut G to fix the wheel on the shaft
4.3. Install the wheel cover H.
4.4. Use the clamping screw C and Plain washer ø6 B to install the Handle A into the corresponding hole of the caster fixing plate J.

INSTALLATION

5.1. Position the heater on a flat, level, non-flammable, solid surface.
5.2. Direct-fired heaters are intended for use in outdoor open areas or in indoor well-ventilated areas. For indoor use, provide permanent ventilation openings of at At least 25  m²/kW, equally distributed between the floor and high level, with a minimum of 250 cm².
Maximum Opening Size:
AB1008 – 800cm
AB1258, AB1758 – 1250cm 2
Only install the heater in a normal upright position.
DO NOT place the heater near walls, corners, or low ceilings.
DO NOT place the heater below a socket outlet.
DO NOT place the heater on moving vehicles or where it can tip over.
Keep the heater away from flammable, combustible, explosive, or corrosive materials.
Keep the heater away from curtains or similar materials that could block the air inlet and outlet.
Never block or restrict the air inlet and outlet for any reason.
Keep the power cable away from heat sources, sharp edges, cutting, and moving parts.
DO NOT expose directly to the weather or to excessive humidity.
DO NOT place the heater in the immediate surroundings of a bath, shower, or swimming pool.
5.3. Follow general and special fire safety regulations in force in all fields of applications. In any case, ensure the following minimum safety clearances from materials or objects in the surroundings of the heater: Side: 0.6 m Air inlet side: 1 m Top: 1.5 m Hot air outlet side: 3 m Floor: 0 m
5.4. Floors and ceilings must be made of fireproof materials in the place where the heater is operated.
DO NOT connect direct-fired heaters to air ducts

OPERATING CONDITIONS

6.1. KEROSENE AND DIESEL FUEL USAGE
These AB heaters are factory adjusted to give the most efficient burn on kerosene but will also burn diesel. Note that kerosene will tend to burn more cleanly than diesel. Care should be taken to provide at least the minimum amount of ventilation recommended when burning diesel.

6.2. STORAGE OF FUEL
Always store kerosene and diesel in a well-ventilated area well away from the general living space. Do not store in direct sunlight or near a source of heat or another source of ignition such as a torch or a portable generator. Do not use fuel that has been stored from one season to the next as it may have deteriorated and will not burn properly in the heater.  tore the fuel in a suitable container that complies with requirements set out in local authority regulations.
WARNING! Air contaminants taken into the heater may affect the heat output, damage the unit, and may cause health problems. Example: Bodyshop filler dust/paint overspray will damage the motor bearing, clog the filter and pump and contaminate the combustion chamber causing flame flutter and health hazards. Please note that any parts damaged by filler dust/paint overspray will not be covered by the warranty. Additionally, a cleaning charge will be made for any heaters damaged by filler dust.

OPERATION (REF. FIG.1A)

7.1. START UP
7.1.1. Fill tank with clean fuel. Only use Diesel or Kerosene. The fuel gauge on top of the tank allows for checking the fuel level.
7.1.2. Connect the power cord plug to an AC220-240V 50 Hz earthed electrical supply system. Earthing is mandatory.

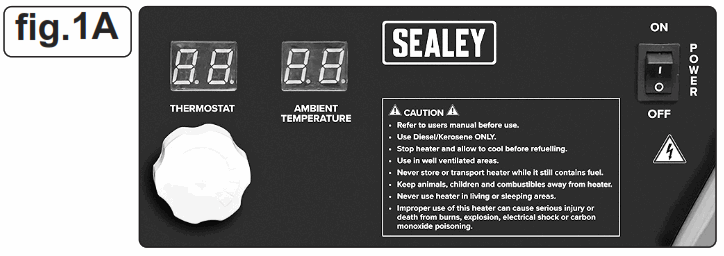

7.1.3. When complete “start-up” above, the left display window shows “–”, and the right display window shows ambient temperature value.
7.1.4. Push the power switch to the “ON”(1) position.
7.1.5. The default temperature setting is 20°C, shown on the left display window.
7.1.6. If the ambient temperature is lower than the default temperature, the electrodes start sparking, after 7 seconds, the heater starts.
7.1.7. If the ambient temperature is higher than the default temperature, turn the thermostat control knob to the desired temperature, and the electrodes start sparking, after 7 seconds, the heater starts.
7.2. COLD START-UP

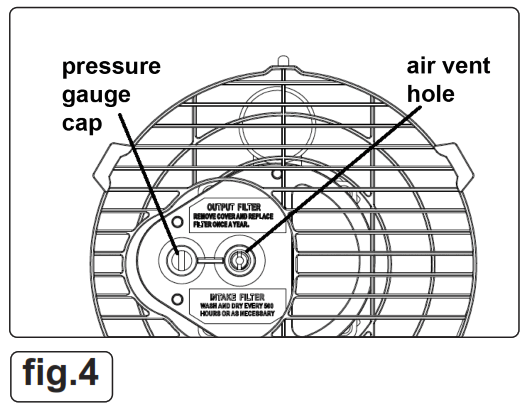

7.2.1. At low temperature keep the air vent hole fig.4 closed by a finger during ignition to make start-up easier.
7.2.2. ABNORMAL OPERATION: in case of malfunction (flame failure, reduced airflow, bad combustion, etc.) the heater stops and the indicator light starts FLASHING (THE LOCK-OUT MODE code will be shown on the display window).

7.3. MANUAL REST/RESTART
7.3.1. If the heater is in lock-out mode, check and remove the cause of lock-out before restarting the heater.
7.3.2. To reset, turn the ON/OFF switch to 0 and then again to me. In case of repeated malfunction, call technical service.
Turning the thermostat control knob will NOT reset the heater.

7.4. SHUT DOWN
7.4.1. Move the switch to the “OFF” (O) position. Unplug the unit when not used for a long time.
7.4.2. Never disconnect the heater from the mains to stop it while in operation. Always allow the cooling sequence to be completed, otherwise, the residual heat could damage internal components.
DO NOT cover the heater.
DO NOT block the air inlet and outlet.
‰ WARNING! The heater outlet is very hot during operation and after use. DO NOT TOUCH! Use personal protection equipment if needed.
‰ WARNING! Children should be supervised to ensure that they do not play with the appliance.
Note: The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
7.4.3. Unplug the heater before moving it. Never pull the cable to unplug or move the unit.
DO NOT leave the heater unattended when in use.
Never use the appliance with wet hands or when either the heater or the power cable is wet.
WARNING! If the supply cable is damaged, it must be replaced by the manufacturer, a service agent, or a similarly qualified person.

CLEANING & MAINTENANCE

‰ WARNING! Before starting any maintenance task, shut down, unplug and let the heater cool down for at least 15 minutes.
DO NOT attempt any electrical repair yourself. If the heater needs service or repair, contact a qualified technician.
DO NOT use a faulty unit unless a qualified technician has inspected and repaired it.
When cleaning, make sure that water does not enter the unit.
DO NOT open the enclosure to clean the inner parts. DO NOT spray water into the heater.
Never use solvents, gasoline, toluene, and similar aggressive chemicals to clean the heater.
8.1. Regularly wipe the enclosure using a soft sponge or cloth. For very dirty parts, use a sponge wetted with lukewarm water and a mild detergent, then dry using a clean cloth.
8.2. Keep air inlet and fan free from dust and dirt. To clean inner parts, gently blow compressed air through the air inlet.
8.3. Regularly inspect the power cable: if worn, cracked, or damaged have it replaced by technical service.
8.4. Before storing the heater, make sure it is perfectly cool and dry. Cover the unit with a plastic bag, put it in its packing box, and store it in a dry, ventilated place.

8.5. LONG-TERM STORAGE
If the heater is to be stored for a long period of time, drain the fuel through the fuel cap opening. Rinse and swirl a small amount of fuel within the tank and then empty it fully.  When you come to use the heater again do not use old fuel which has been stored from the previous season. The use of old fuel can damage your heater.
Although our heaters operate with diesel fuel, when the temperature is below 0°C diesel additives are required to maintain the diesel’s viscosity. Typically diesel can cloud in freezing conditions and will start to gel. You will need additives for your fuel in these conditions. Kerosene does not start to gel until the ambient temperature is around -40°C.

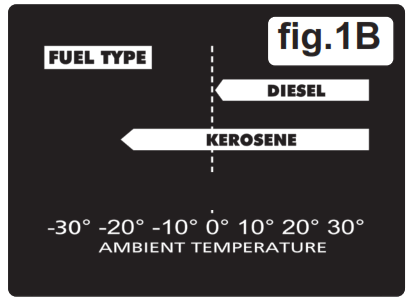

Refer to fig.1B.
DO NOT use paraffin in these heaters.
8.6. MAINTENANCE
The following checks BY QUALIFIED PERSONNEL ONLY are recommended before every seasonal use:
8.6.1. Nozzle
Carefully unscrew the nozzle from the nozzle fitting. Blow compressed air through a nozzle orifice to free it from dirt. Replace nozzle if necessary.
8.6.2. Air Filters

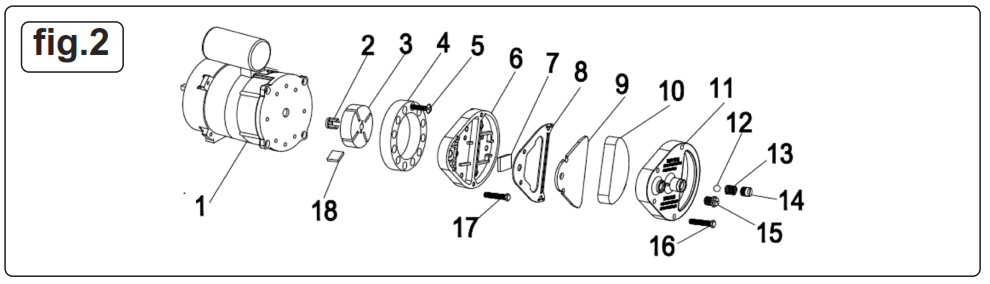

Clean air filters. Remove filter end cover (11), wash air intake filter (10) using a light detergent, and dry it thoroughly before re-installing. Replace the air delivery filter (9) once a year fig.2.

8.6.3. Ignition Electrodes fig.3
Clean and if necessary replace the ignition electrode. For electrode, gaps see fig.3.

8.6.4. Compressor Pressure Adjustment fig.4
‰ WARNING! The compressor pressure is factory set and must be checked by qualified technicians only. Tampering with the unit may be dangerous. Remove pressure gauge cap.  connect a pressure gauge to the pressure measuring port on the rear guard. Start the heater and read the air pressure value. If necessary adjust the pressure to the correct value y turning the adjusting screw (the air vent hole in the adjusting screw middle) clockwise to increase, and anticlockwise to decrease the pressure.

TROUBLESHOOTING

WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid waste authority for recycling information.

ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories, and packaging should be sorted, taken to a recycling center, and disposed of in a manner that is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications, and component parts without prior notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call our technical team at [email protected] or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

Information requirements for gaseous/liquid fuel local space heaters

Sealey Group, Kempson Way,
Suffolk Business Park, Bury St Edmunds,
Suffolk. IP32 7AR
01284 757500
01284 703534
[email protected]
www.sealey.co.uk
© Jack Sealey Limited
Original Language Version
AB1008.V4, AB1258.V4, AB1758.V4 Issue:1 05/04/22
