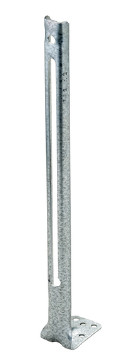

nVent FBS12 Footed Box Conduit Support 12
nVent FBS12 Footed Box Conduit Support 12
The nVent CADDY Footed Box/Conduit Supports (FBS) is a fast and secure method to address space constraint issues in overcrowded areas when installing in-deck conduit and in-wall electrical boxes. The FBS series is designed to provide positional flexibility in application with the added securement of nVent CADDY conduit fasteners. Increase installation efficiency when adding conduits and boxes to any concrete environment.
FEATURES
- Ideal securement for in-deck conduit routing or stub-up
- Supports electrical boxes from floor or concrete forms (12″ – 16″ heights)
- The stable footprint for concrete pours
- Provides a wide range of height adjustment
- Range of sizes available to accommodate multiple slab depths
- Combine with nVent CADDY strut or threaded rod to support multiple raceways into the load center
- Combine with nVent CADDY fasteners for efficient installations
PRODUCT ATTRIBUTES
- Material: Steel
- Finish: Pre-galvanized
- Height: 12″
- Hole Size 1: 3/16″
- Slot Size: 1/4″ x 8 1/4″
- Length: 2 1/16″
- Width: 1 1/4″

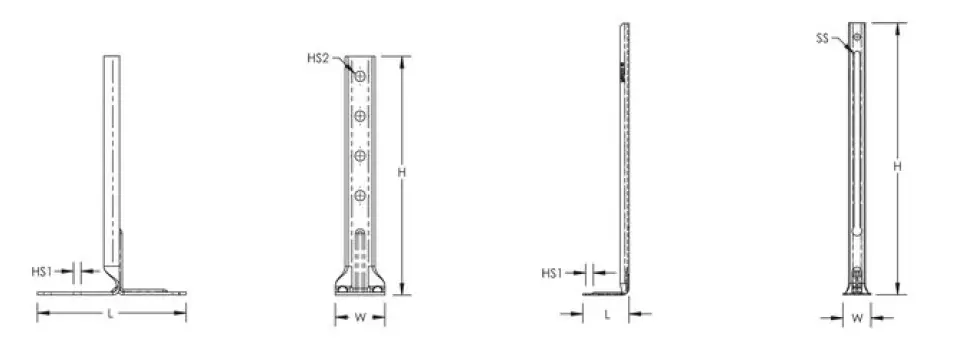

DIAGRAMS
WARNING
nVent products shall be installed and used only as indicated in nVent’s product instruction sheets and training materials. Instruction sheets are available at www.nvent.com and from your nVent customer service representative. Improper installation, misuse, misapplication, or another failure to completely follow nVent’s instructions and warnings may cause product malfunction, property damage, serious bodily injury, and death and/or void your warranty.
