INNOVATIVE PTS-FSB Freestanding Base Kit

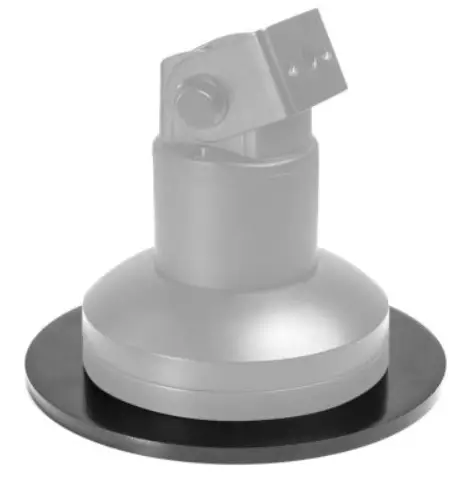

INNOVATIVE-PTS-FSB-Freestanding-Base-Kit-product

Installation Instructions

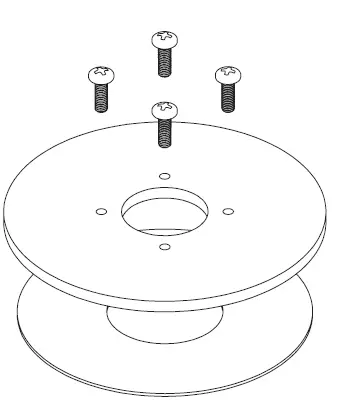

INNOVATIVE-PTS-FSB-Freestanding-Base-Kit-fig-1

Innovative Ergonomic Solutions 800 524 2744 [email protected] team-ies.com

  • M6-1 x 18 PhPHMS 4x 110470INNOVATIVE-PTS-FSB-Freestanding-Base-Kit-fig-2
  • Freestanding Steel Plate 1x 115001INNOVATIVE-PTS-FSB-Freestanding-Base-Kit-fig-3
  • Payment Terminal Stand Neoprene Disc 1x 115008INNOVATIVE-PTS-FSB-Freestanding-Base-Kit-fig-4

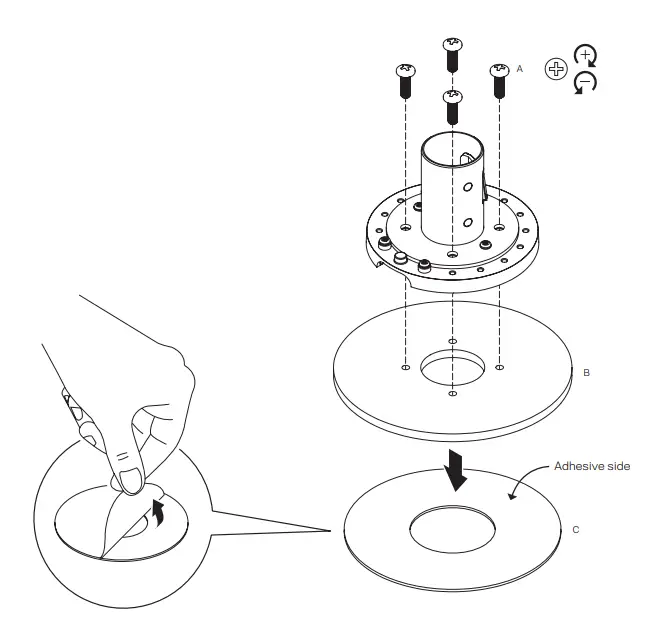

INNOVATIVE-PTS-FSB-Freestanding-Base-Kit-fig-5

To complete the mount installation, please refer to the payment terminal stand installation instructions.
