Three-Phase Transducer
BJ- QPAX / QPVX
User Manual
Version：1.3
Features
- AC Voltage Input: 110V,220V,380V optional
- AC Current Input: 0-5A, 5-10A, 0-10A optional
- Output: 0-5V,0-10V,4-20mA, 0-20mA optional
- RMS measurement and output
- 0.2 measurement accuracy
- 200ms response time
- 35mm Din rail mounting
- Support customized parameters
Technical parameters
| Power Supply | AC/DC 85-265VAC/DC (..Customer specified) |
| Signal input | Current(QPAX): 0-1A / 0-5A(..Customer specified) Voltage(QPVX): 0-100V / 0-400V(..Customer specified) |
| Output | DC 4 – 20 mA / 0-20mV / 0-5V / 0-10V |
| Accuracy | 5 ±0.5% |
| Accuracy drift | Annual Variation < 0.2% |
| Response time | 5 200 ms |
| Isolation | Input / output / power supply |
| Power consumption | DC —-. 3W, AC —-. 4VA |
| Case Material | ABS fireproof materials |
| Insulation Voltage | AC 2KV RMS / min |
| Weight | About 650g |
| Insulation Resistance | When DC 500V ,100 MO |
| Dimension | 120(L) X 110(W) X 75(H) mm |
| Installation | Fixed in a standard 35mm (1.38 inch) DIN rail or screwed on the cabinet |
| Working Condition | 0 – 50C/ less than 95% RH (Non-condensing) |
| Storage Conditions | -20 – 70C/ less than 70% RH (Non-condensing) |
Connection drawing

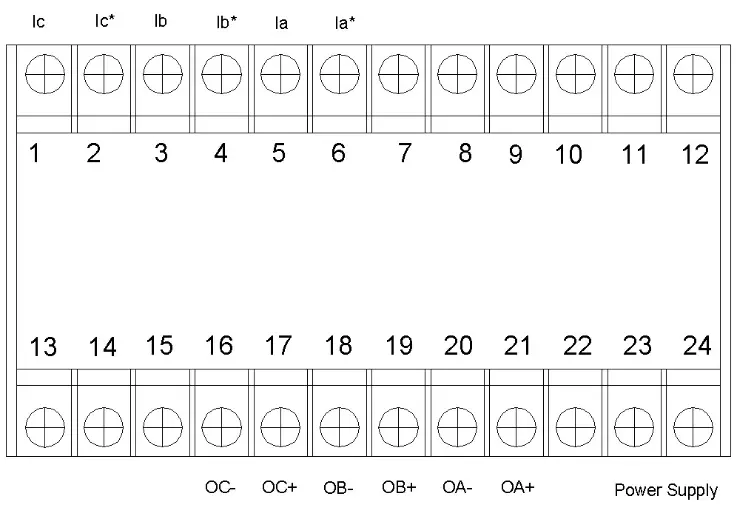

Current transducer
| (1) Current C-phase output (2) Current C-phase input (3) Current B-phase output (4) Current B-phase input (5) Current A-phase output (6) Current A-phase input | (16) C-phase output pin (-) (17) C-phase output pin (+) (18) B-phase output pin (-) (19) B-phase output pin (+) (20) A-phase output pin (-) (21) A-phase output pin (+) |

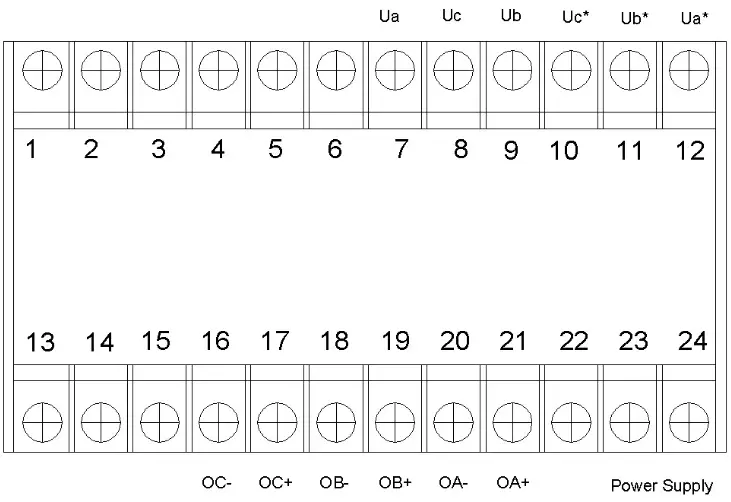

Voltage transducer
| (1) Voltage C-phase output (2) Voltage C-phase input (3) Voltage B-phase output (4) Voltage B-phase input (5) Voltage A-phase output (6) Voltage A-phase input | (16) C-phase output pin (-) (17) C-phase output pin (+) (18) B-phase output pin (-) (19) B-phase output pin (+) (20) A-phase output pin (-) (21) A-phase output pin (+) |
Power Supply : AC/DC 220V
Notes: Listed above picture is for reference!
Detail wiring instructions please refer to product label

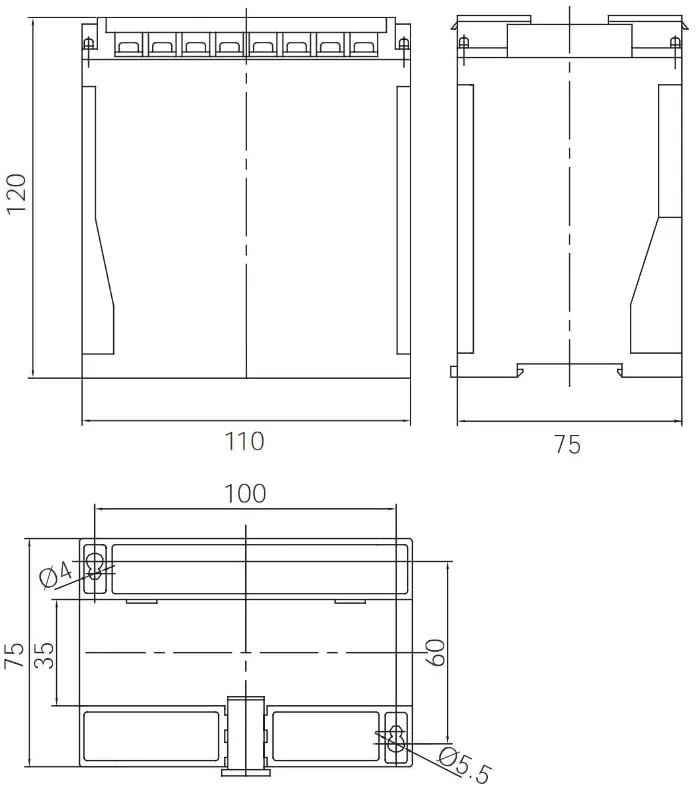

Dimension
Notes
- Please confirm the parameter on the label match the order specification
- Confirm the power supply, input current and voltage
- Transducer can connect to the CT / PT secondary side
For any inquiry about the instrument performance or whether any failure happens, contact to Blue Jay’s technical service.
Blue Jay – After-sales service
Building 13, 2-8, Jialing third village Pioneer Park, Jiangbei District , 400020 Chongqing
Tel – + 0086 023 86850812
Fax – + 0086 023 67636974
E-mail : [email protected]
Add: Building 13, 2-8, Jialing third village Pioneer Park, Jiangbei District, Chongqing
Blue Jay - Development, production and sales of power automation monitoring products and energy metering instruments.
