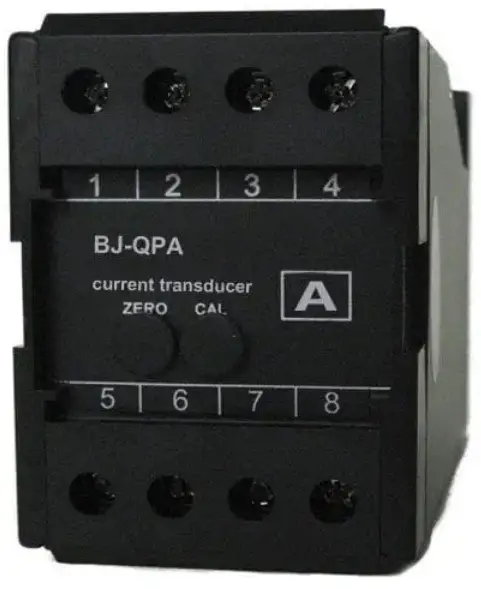

BLUE JAY BJ-QPA(T) Single Phase AC Transducer User Manual

Contents hide

1 Features:

2 Technical Parameters:

3 Documents / Resources

3.1 References

4 Related Posts

Features:

Accurate, reliable, current measurement
Measure Single-phase system
True RMS measurement, can work in harmonic electric grid
Input: AC voltage or current signal (Refer to instrument labels)
Output: DC 4 ~ 20 mA, Analog signal (Refer to instrument labels)
RS485 port optional

Technical Parameters:

Power Supply	AC 85~265V
Input	Current : 0~5A, 0~1A… Voltage: 0~100V, 0~400V…
Output	DC 4 ~ 20 mA, 0-20mA, 0-5V(refer to the label)
Accuracy	≤ ±0.5%
Accuracy drift	Annual Variation < 0.2%
Response time	≤ 400 ms
Isolation	Input / output / power supply
Power consumption	DC ≈ 3W, AC ≈ 4VA
Case Material	ABS fireproof materials
Insulation Voltage	AC 2KV RMS / min
Weight	About 250g
Insulation Resistance	Current output: 0＜Lr＜510Ω; Voltage output: Lr＞10KΩ

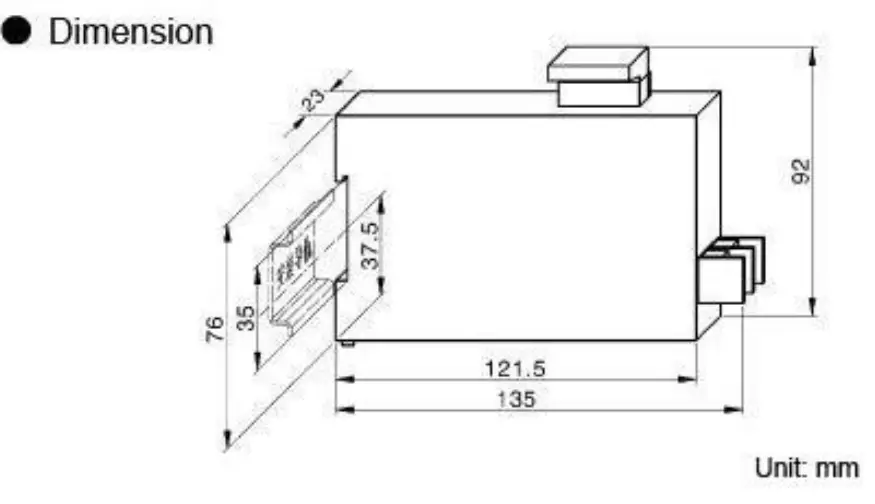

Dimension	135 (L) X 23(W) X 92(H) mm
Installation	Fixed in a standard 35mm (1.38 inch) DIN rail or screwed on the cabinet
Working Condition	0 ~ 50 ℃/ less than 95% RH (Non-condensing)
Storage Conditions	-20 ~ 70℃/ less than 70% RH (Non-condensing)

Notes

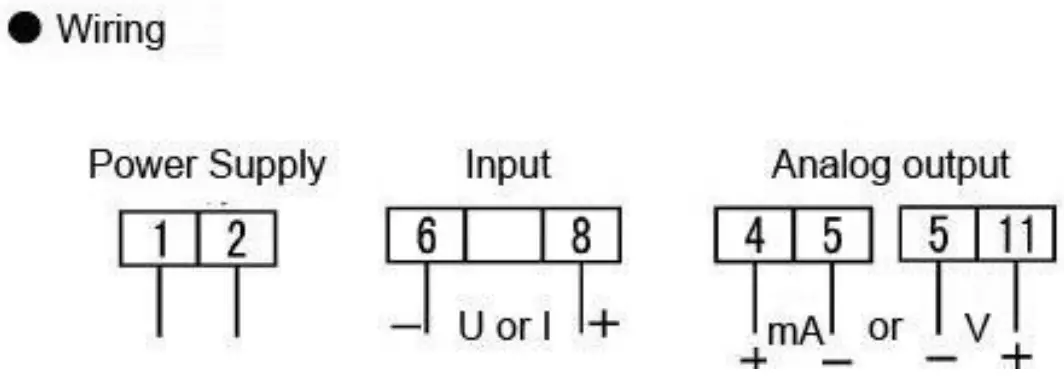

Pin 1,2 for power supply AC(DC)85-265V.
Pin 6,8 for measurement signal input, Make sure the product parameters on the label are the same to your order, if not, please contact BLUE JAY sales team, [email protected].
For input AC signal, there is no polarity difference. For input DC signal, Pin8 for positive (+); Pin 6 for negative (-).
Output signal for 4~20mA, access pin 4 for positive (+); Pin 5 for negative (-).
Output signal for 0~5V, access pin 11 for positive (+); Pin 5 for negative (-).

! Do read and full understanding of the controller wiring, if cannot sure the connection, please contact BLUE JAY technical support tech@cqbluejay.com for more help.

RS485 Communication

Code:	Meaning:	Description:
FUNCTION 03	Reading of n Words	This function permits to read all the electrical parameters of the BJ194…series.
FUNCTION 16	Preset Multiple Registers	Write value in to the relevant register


Address	Data	Description	Byte	Instruction
2	point	Decimal point position	4,5
3	SIGN	Sign bit	6,7	1 for negative, 0 for plus

0	U/I	L-N value	0,1
1	PR	Frequency	2,3
2	UC/UCA	C-phase volt	4,5

For any inquiry about the instrument performance or whether any failure
happens, contact to Blue Jay’s technical service.
Blue Jay – After-sales service
Building 13, 2-8, Jialing third village Pioneer Park,
Jiangbei District , 400020 Chongqing
Tel – + 0086 023 86850812
Fax – + 0086 023 67636974
E-mail : [email protected]
