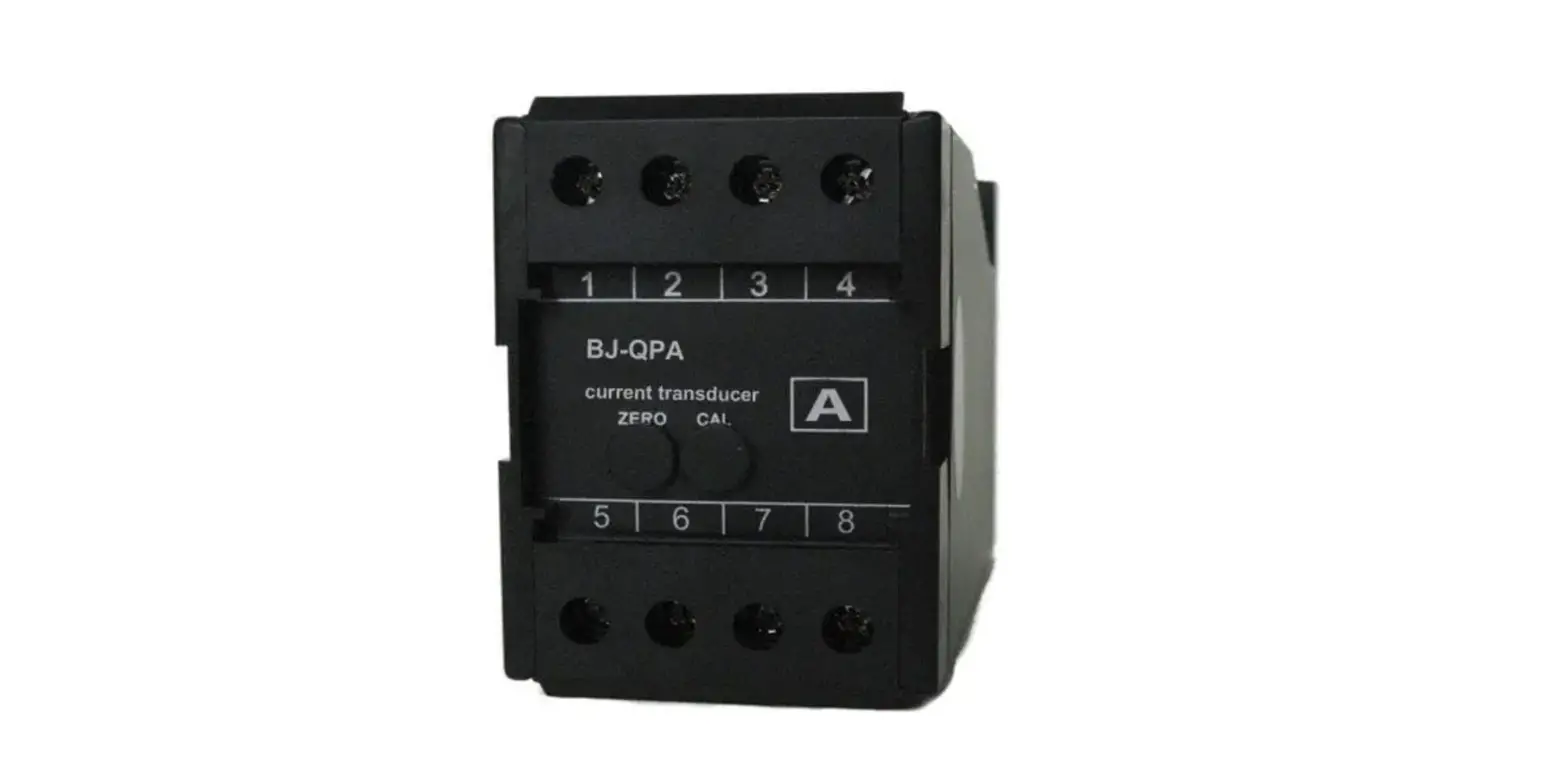

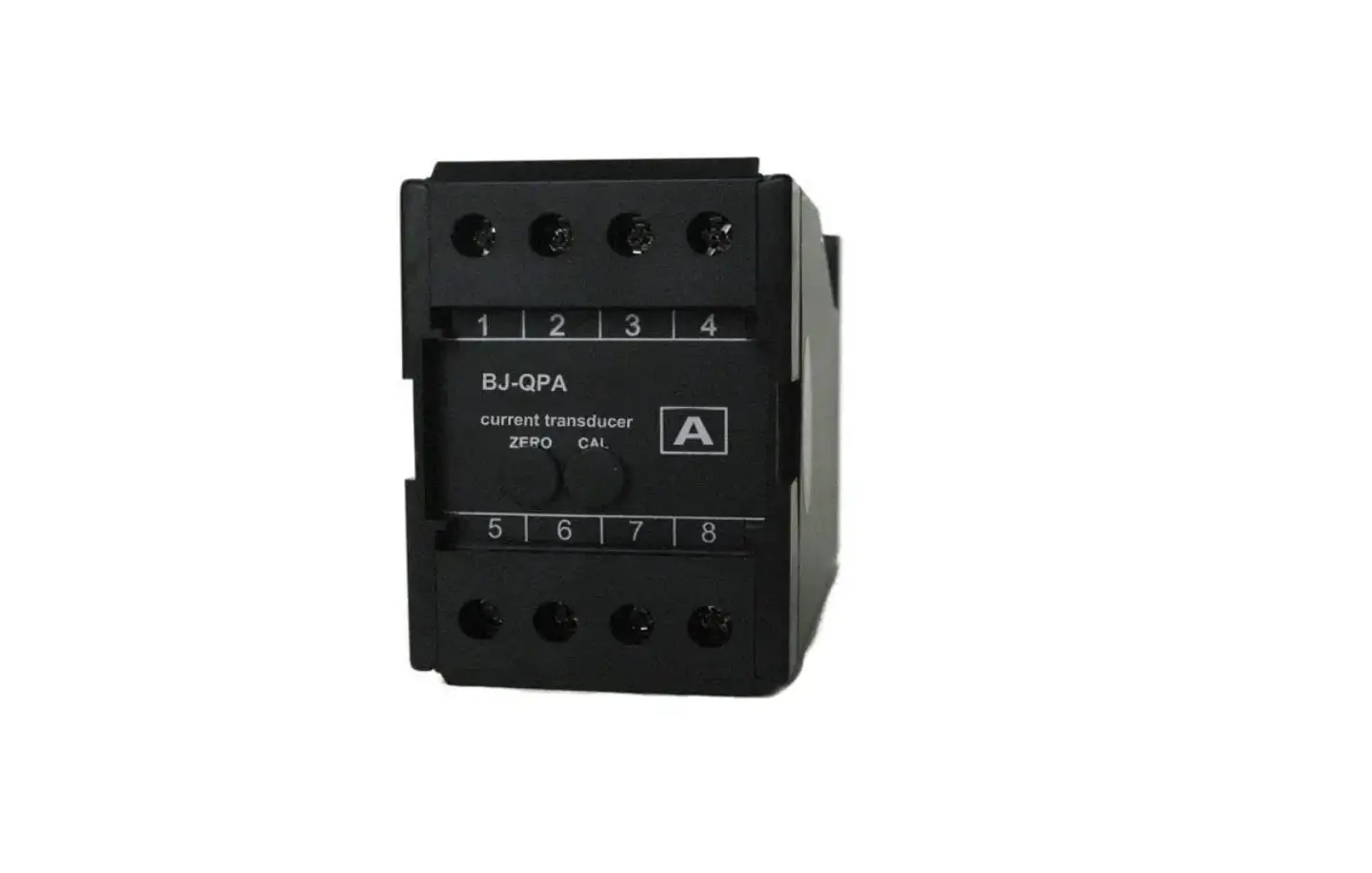

Blue Jay Bj-qpa Qpv Single Phase Transducer User Manual

1. Accurate, reliable, current measurement
2. Measure Single-phase system
3. Input : AC 0~5A (Refer to instrument labels)
4. Output: DC 4 ~ 20 mA , Analog signal (Refer to instrument labels)

Technical parameters

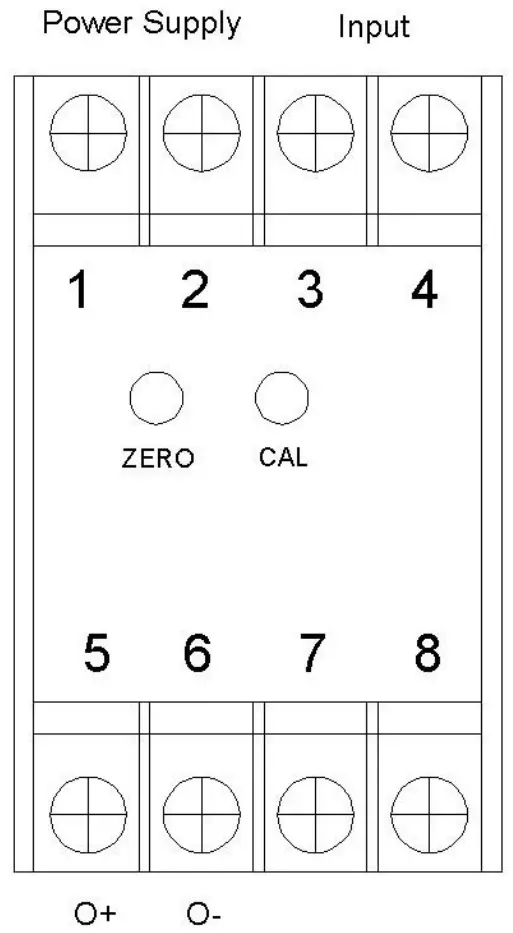

Connection drawing

1,2: Power Supply
3,4: The signal input terminal
5,6: DC Analog signal output terminal
ZERO: Zero potentiometer, set the output value 0/4mA;
CAL: Full-scale potentiometer ,set the output value is 20mA

Notes:

1. User need to identify the polarity of output pin,
2. Because different batches of product and customer requirements, please refer to product label

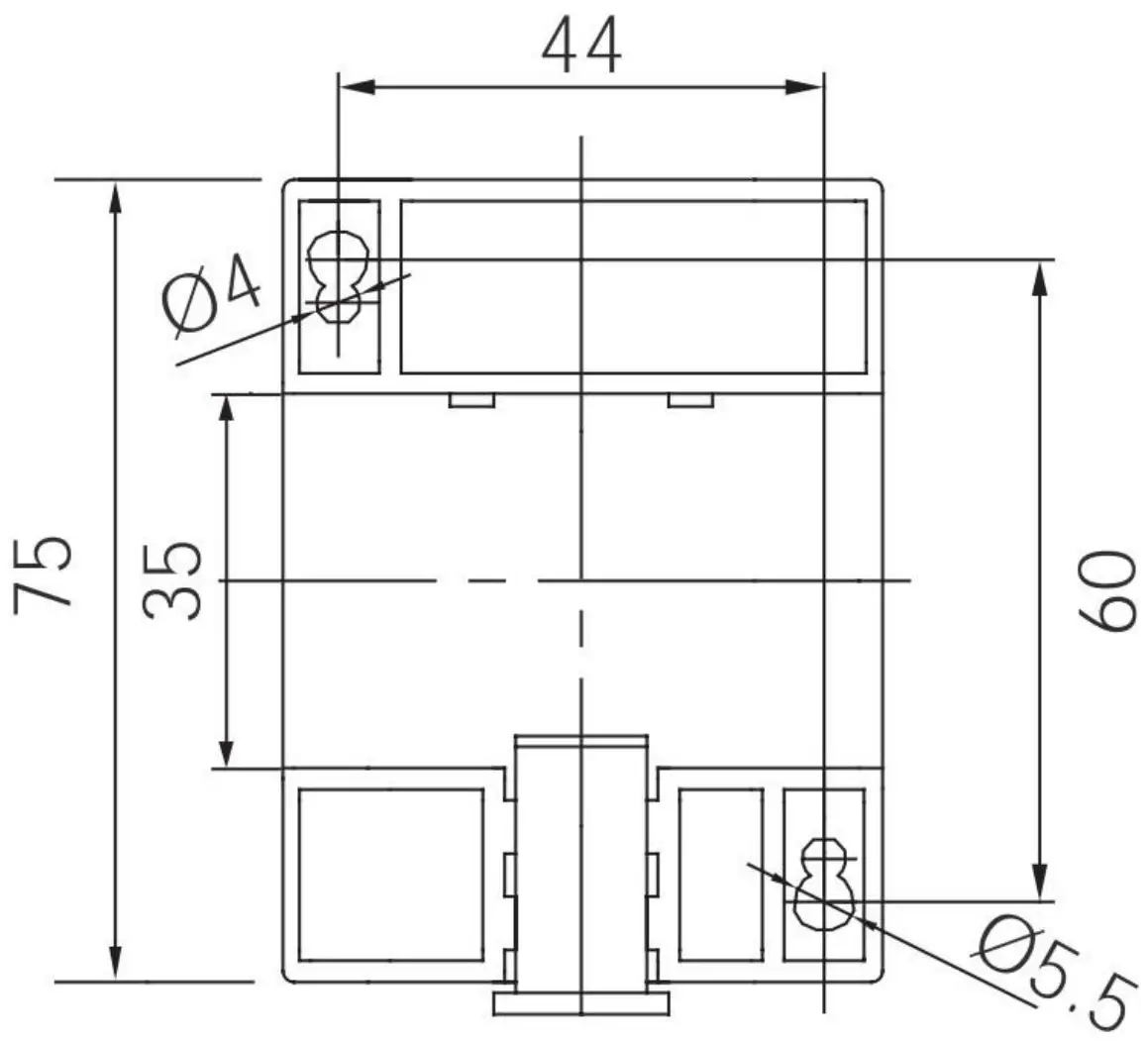

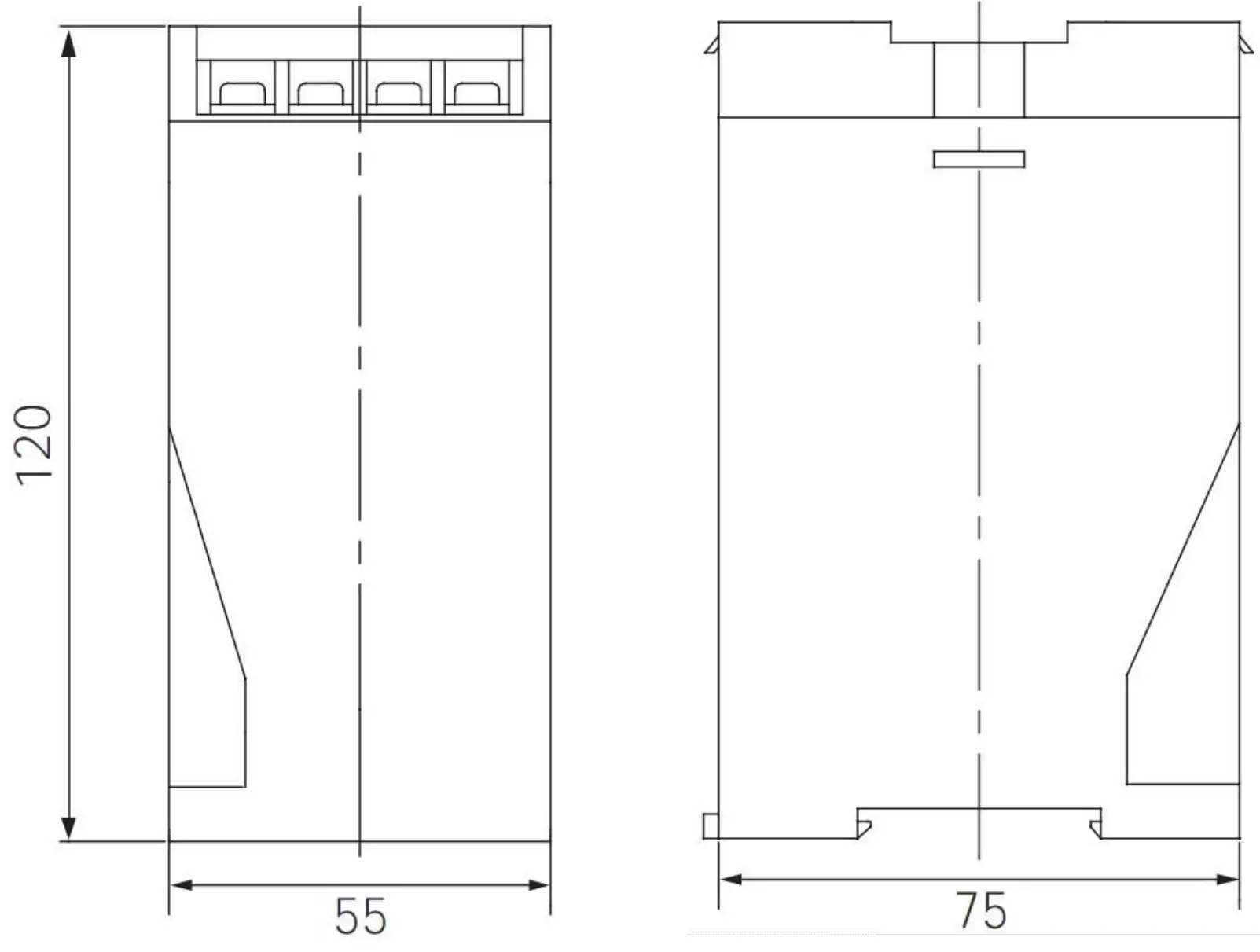

Dimension

Notes

1. Please confirm the parameter on the label match the order specification
2. Confirm the power supply, input current and voltage
3. Transducer can connect to the CT / PT secondary side

Support

For any inquiry about the instrument performance or whether any failure happens, contact to Blue Jay’s technical service.
