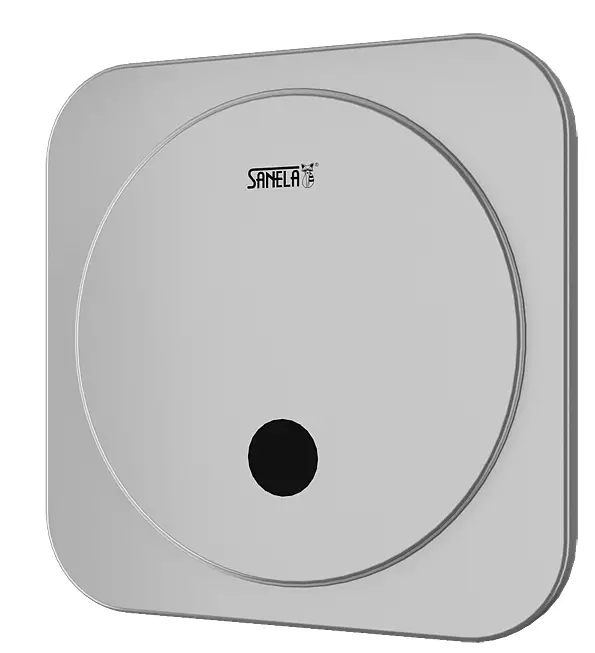

intra INU 02N Urinal Infrared Flushing Unit with Mounting Box
instructions for use
Mounting instructions

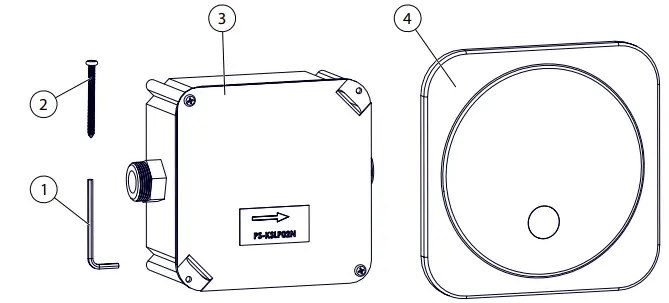

Position
- 45784: 1
- 44579: 4
- 45339: 1
- 46421: 1

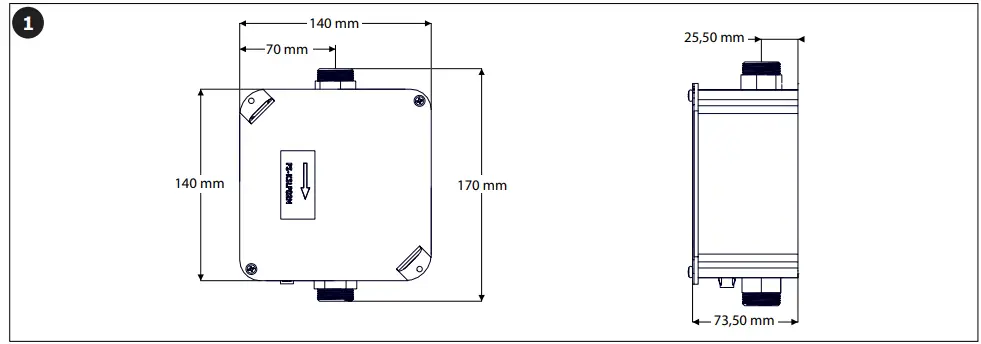

Dimension

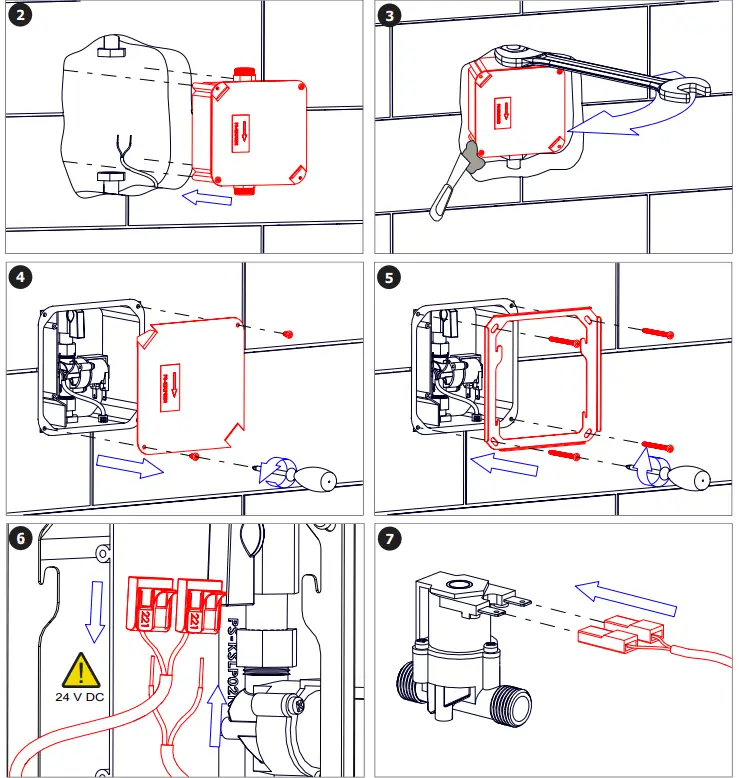

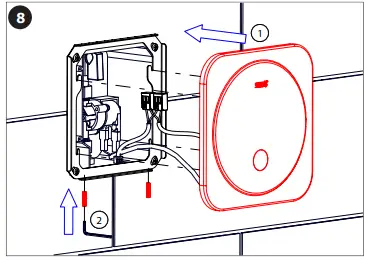

Installation
- It is necessary, for the proper function, to keep the unit under constant voltage
- (don´t connect the power supply unit behind the switch into the light circuit)!
Instructions for maintenance

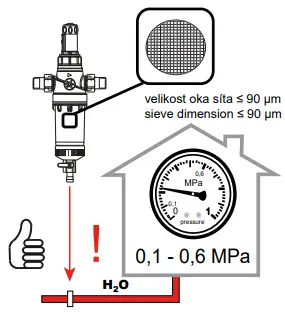

- It is recommend to check up the sifter of electromagnetic valve once a year, because of there is a possibility that valve could be fouled up.
- Checking of tightening of screw conections and connectors contact surfaces is also recommend once a year.
- It is necessary to proceed according to the law about packaging material after unpacking of the product.
- Producer assures that this product has declaration of conforminty in accordance with the regulation 73/023/EEC and 89/336/EEC.
Recommended accessories

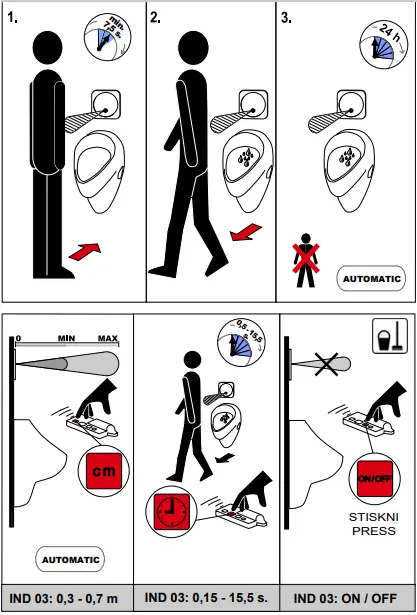

- IND 03 universal remote control for parameters adjustment
- INZ 01Y external power supply 24V DC for operating of max 5 pc. of flushing units
- INZ 01Z external power supply 24V DC for operating of max 9 pc. of flushing units
