Sloan 186-0.5 Dfb Urinal 0.5 Gpf Flushometer Instruction Manual

SLOAN® MANUAL FLUSHOMETER
SLOAN 186-0.5
CODE NUMBER
3782655

DESCRIPTION

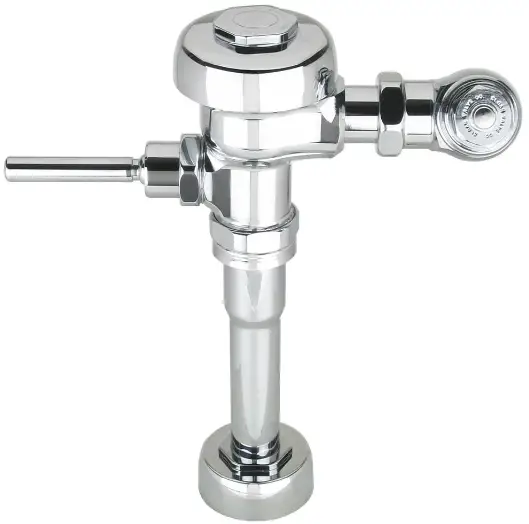

0.5 gpf, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Sloan® Exposed Manual Urinal Flushometer.

DETAILS

• Flush Volume: 0.5 gpf (1.9 Lpf)
• Finish: Polished Chrome (CP)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11 ½” (292mm)
• Spud Coupling: ¾” (19mm)
• Supply Pipe: ¾” (19mm)

FEATURES

Quiet, Exposed, Diaphragm Type, Chrome Plated High Efficiency Urinal

• 3⁄4” I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap
• Vacuum Breaker with Flush Connection
• Spud Coupling and Spud Flange for 3⁄4” Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange
• Non-Hold-Open Handle and No External Volume Adjustment to
• Ensure Water Conservation
• High Efficiency flush accuracy
• Diaphragm, Handle Packing and Vacuum Breaker Molded from
• PERMEX® Rubber Compound for Chloramine Resistance
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• WaterSense compliant when used with a 0.5 gpf WaterSense fixture

COMPLIANCES & CERTIFICATIONS

(ADA Compliant, BAA Compliant, BREEAM Materials Credit, BREEAM Water Credit, cUPC Certified, EPD, Green Globes Materials & Resources Credit, Green Globes Water Credit, HPD, LEED Materials & Resources EPD Credit, LEED Materials & Resources HPD Credit, LEED V4 Water Efficiency Credit, Satisfies LEED Credits, WaterSense Listed, WELL Building Standard)

RECOMMENDED SPECIFICATION
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable
sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure – consult manufacturer requirements.

DOWNLOADS

• Sloan Exposed Installation Instructions
• Sloan Exposed (Spanish) Installation Instructions
• Control Stop Repair and Maintenance Guide
• Flush Connections Flanges Repair and Maintenance Guide
• Tail Piece Repair and Maintenance Guide
• Sloan Flushometer Repair and Maintenance Guide
• Flushometer Pressure gauges
• Additional Downloads

NOTES
All information contained within this document subject to change without notice.
Looking for other variations of the SLOAN 186 product? View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.
WaterSense compliant when used with a 0.5 gpf (1.9 Lpf) WaterSense fixture

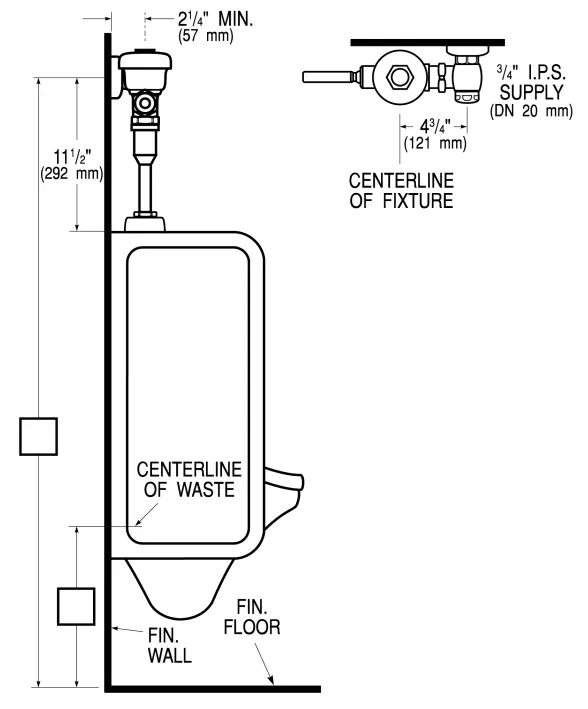

ROUGH-IN

Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839 • Fax: 800.447.8329 • sloan.com
Code 3782655 • Downloaded 01/31/23 • 06/03/22 • View Latest Version
