Sloan Royal 952-1.6-2-10-3-4-ldim Flushometer Instructions

ROYAL® MANUAL SPECIALTY FLUSHOMETER
ROYAL 952-1.6-2-10-3/4-LDIM
Instructions

CODE NUMBER
3914817

DESCRIPTION

1.6 gpf, Rough Brass Finish, Fixture Connection Rear Spud, Single Flush, 2-10.75 L Dimension, Royal® Concealed Manual Specialty Water Closet Hydraulic Flushometer.

DETAILS

• Flush Volume: 1.6 gpf (6.0 Lpf)
• Finish: Rough Brass (RB)
• Valve: Diaphragm
• Valve Body Material: Semi-red Brass
• Fixture Type: Water Closet
• Fixture Connection: Rear Spud
• Rough-In Dimension: 24″ (610mm)
• Spud Coupling: 1 ½” (38mm)
• L Dimension: 2″ – 10 ¾” (51 – 273mm) (2-10-3/4-LDIM)

FEATURES

• ADA Compliant Non-Hold-Open feature type Actuator (not included, order separately-specify Actuator type listed below)
• Double Slip Elbow Flush Connection
• Diaphragm Assembly, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine Resistance
• Dual Filtered Bypass Diaphragm
• 1” I.P.S. Wheel Handle Bak-Chek® Angle Stop

COMPLIANCES & CERTIFICATIONS

(ADA Compliant, cUPC Certified, BAA Compliant)

RECOMMENDED SPECIFICATION

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.
VALVE OPERATING PRESSURE (FLOWING)
15 – 80 PSI (103 – 552 kPa). Specific fixtures may require greater minimum flowing pressure – consult manufacturer requirements.
DOWNLOADS

• Royal/Regal Series 900 Hydraulic Installation Instructions
• Control Stop Repair and Maintenance Guide
• Flush Connections Flanges Repair and Maintenance Guide
• Tail Piece Repair and Maintenance Guide
• Series 900 Flushometers Repair and Maintenance Guide
• Royal Manual Diaphragm Flushometer Repair and
• Maintenance Guide
• Hydraulic Push Button Options
• Additional Downloads

NOTES
All information contained within this document subject to change without notice.
Looking for other variations of the ROYAL 952 product? View the general spec sheet with all options.
Find a compatible urinal for this flushometer.
Find a compatible water closet for this flushometer.

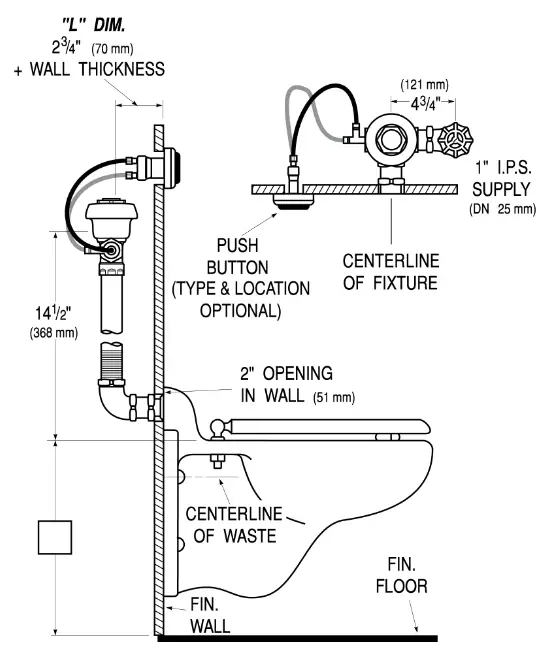

ROUGH-IN

Sloan 10500 Seymour Ave, Franklin Park, IL 60131
Phone: 800.982.5839
Fax: 800.447.8329
sloan.com
Code 3914817
Downloaded 01/27/23
06/03/22
View Latest Version
