SLOAN 3072622 GEM-2 Sensor Flushometer Instructions

COMPLIANCES & CERTIFICATIONS

(ADA Compliant, BAA Compliant, BREEAM Water Credit, cUPC Certiﬁed, cUPC Green Certiﬁed, Green Globes Water Credit, LEED V4 Water Eﬃciency Credit, Satisﬁes LEED Credits, WaterSense Listed)

RECOMMENDED SPECIFICATION

Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classiﬁcation for Semi- Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037 and ANSI/ASME 112.19.2.

ELECTRICAL SPECIFICATIONS

Battery Life: 3 years

VALVE OPERATING PRESSURE (FLOWING)

15 – 80 PSI (103 – 552 kPa). Speciﬁc ﬁxtures may require greater minimum ﬂowing pressure – consult manufacturer requirements.

DOWNLOADS

GEM/GEM 2 Piston Type Exposed Installation Instructions EL-700/750-A Installation Instructions
Control Stop Repair and Maintenance Guide
Flush Connections Flanges Repair and Maintenance Guide Tail Piece Repair and Maintenance Guide em 2 Repair and Maintenance Guide Additional Downloads

NOTES

All information contained within this document subject to change without notice.Looking for other variations of the GEM-2 186 SFSM product? View the general spec sheet with all options.Find a compatible urinal for this ﬂushometer.

CODE NUMBER

3072622

DESCRIPTION

0.125 gpf, XL Sweat Solder Adapter Kit, Polished Chrome Finish, Fixture Connection Top Spud, Single Flush, Battery, GEM-2® Exposed Sensor Urinal Flushometer.

DETAILS

Flush Volume: 0.125 gpf (0.5 Lpf) Finish: Polished Chrome (CP) Power Type: Battery ()
Battery Life: 3 years Valve: Piston
Valve Body Material: Semi-red Brass Fixture Type: Urinal
Fixture Connection: Top Spud

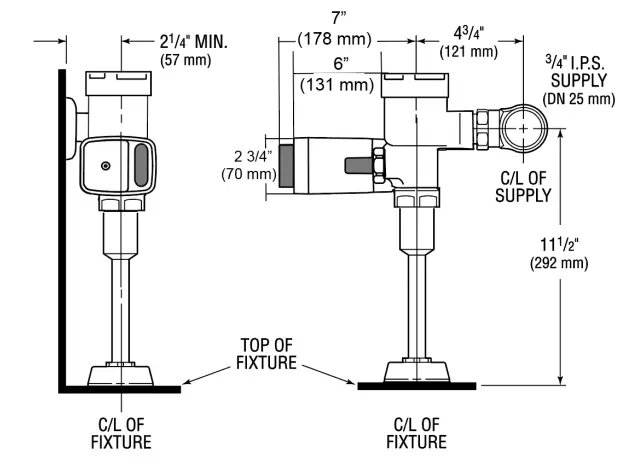

Rough-In Dimension: 11 ½” (292mm) Spud Coupling: ¾” (19mm)
Supply Pipe: ¾” (19mm)
Adapter: XL Sweat Solder Adapter Kit (XL)

FEATURES

Fixed Volume Piston with Filtered O-ring Bypass Four (4) size C batteries included
“Low Battery” Flashing LED “User in View” Flashing LED
No External Volume Adjustment to Ensure Water Conservation True Mechanical Override Flush Button
72-Hour Sentinel Flush
Sweat Solder Adapter w/Cover Tube and Cast Wall Flange with Set Screw
Packing, Stop Seat and Vacuum Breaker Molded from PERMEX® Rubber Compound for Chloramine resistance
3/4” IPS screwdriver Bak-Chek® angle stop with vandal resistant stop cap

Find a compatible water closet for this ﬂushometer.
WaterSense compliant when used with a WaterSense compliant ﬁxture
Battery life varies according to actual usage and restroom conditions.
