INSTALLATION GUIDE FOR
PCSMA2823WA and PCSMA2827WA
Released Date: 2021-07-07
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING
- RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.
CAUTION - For your safety, read the instructions completely before beginning installation.
- If in doubt about electrical installation, consult a licensed electrician.
TOOLS REQUIRED
| Ratings | 120Vac, 60Hz | |
| Model No. | Wattage | |
| PCSMA2823WA | 23W | |
| PCSMA2827WA | 23W | |
CARE AND MAINTENANCE
- Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage finish.
If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST), or visit us online at www.quoizel.com.

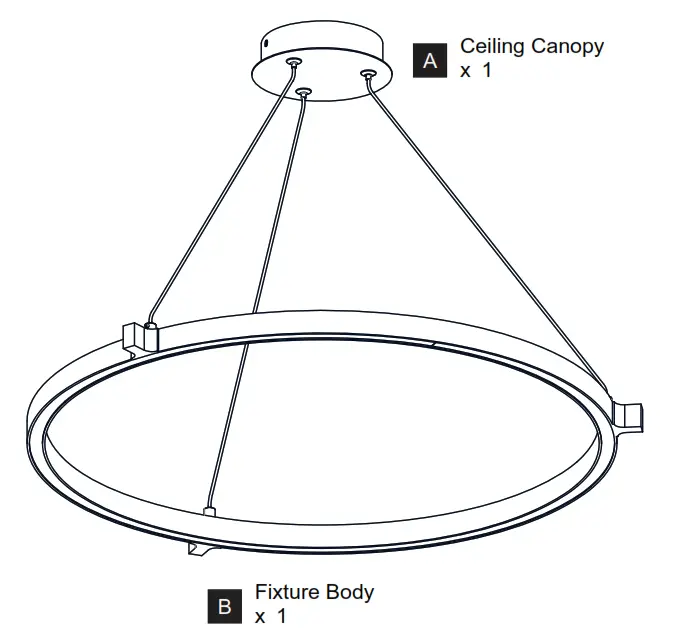

PACKAGE CONTENTS

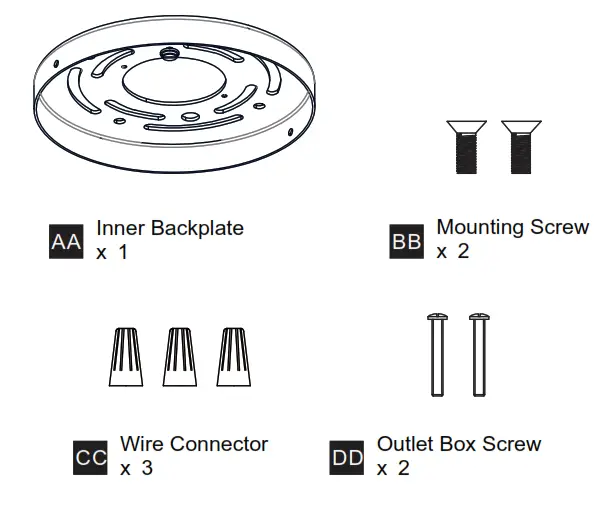

MOUNTING HARDWARE
INSTALLATION

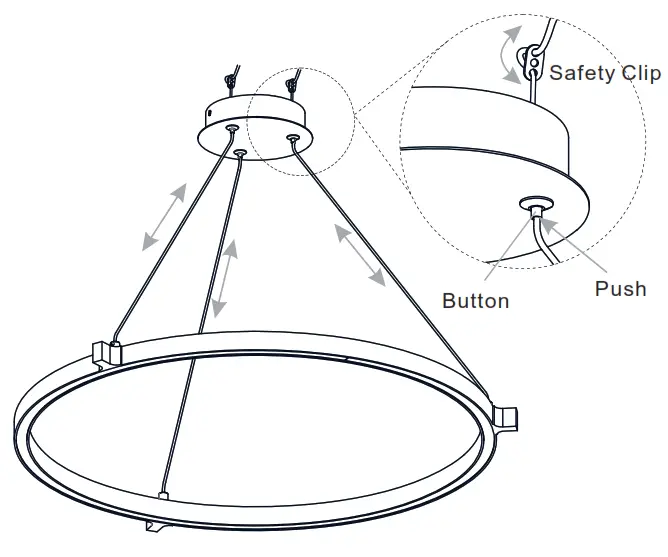

- Adjust Cord Length:
Fixture Height Adjustable ” to ”793
Push the button on the bottom of the ceiling canopy and slide the safety clip to adjust the cord length according to desired hanging height.

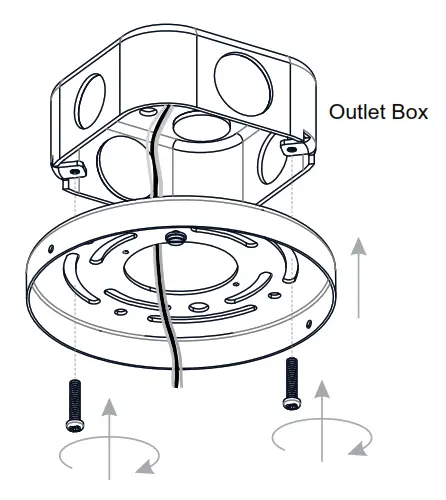

- Install Inner Backplate

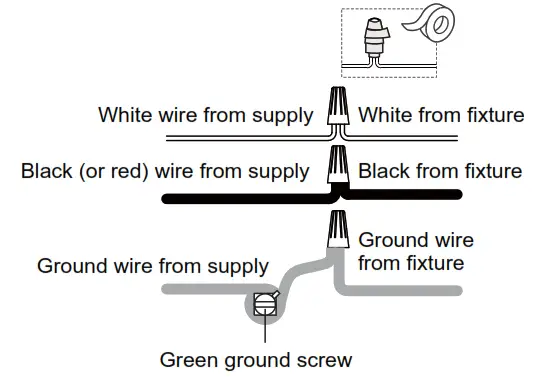

- Wiring

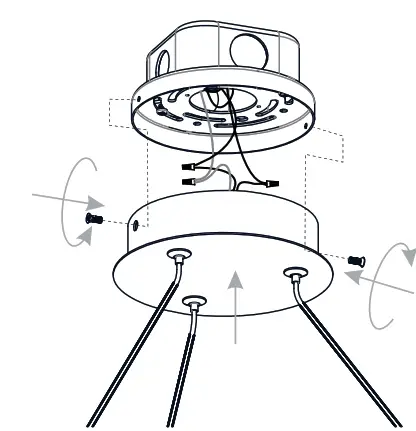

- Install Ceiling Canopy to Inner Backplate
Your installation is now complete! Restore electricity and save this sheet for future reference.
