INSTALLATION GUIDE FOR MCL1508EK
AND MCL1908EK
MCL1908EK McAlister 1-Light Earth Black Outdoor Pendant Light
Installation Guide

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.
WARNING

• RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse
• RISK OF FIRE – Use bulbs specified by the markings and/or labels on the fixture.

CAUTION

• For your safety, read the instructions completely before beginning installation.
• If in doubt about electrical installation, consult a licensed electrician.
• Turn off electricity to fixture before replacing the bulb(s).

TOOLS REQUIRED

CARE AND MAINTENANCE

• Wipe clean using a soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.
  If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00 am – 5:00 pm EST), or visit us online at www.quoizel.com.

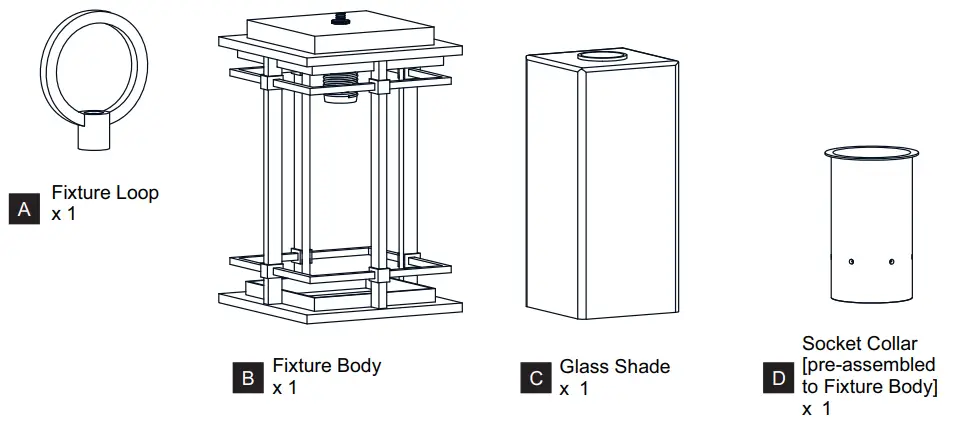

PACKAGE CONTENTS

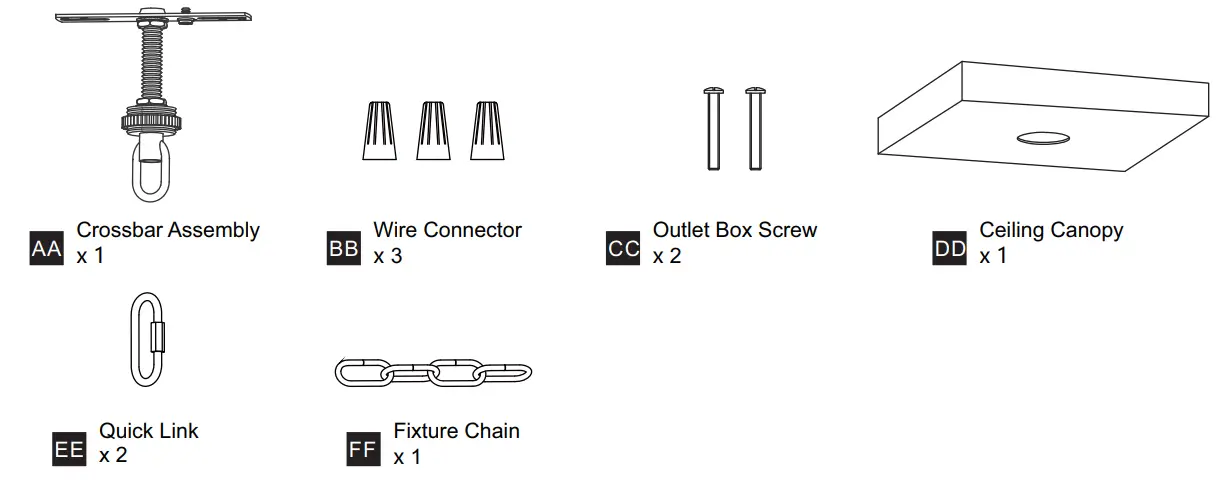

MOUNTING HARDWARE

INSTALLATION

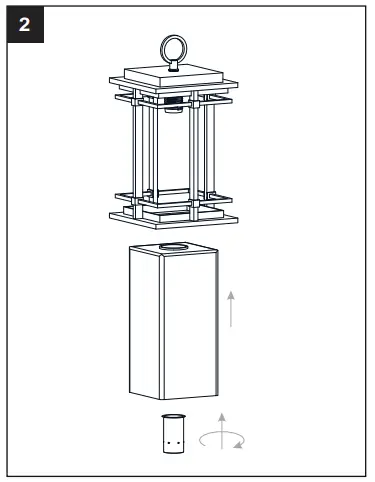

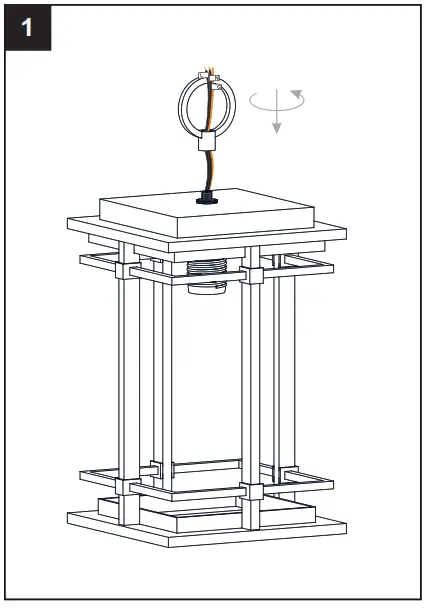

Install Fixture LoopInstall Shade

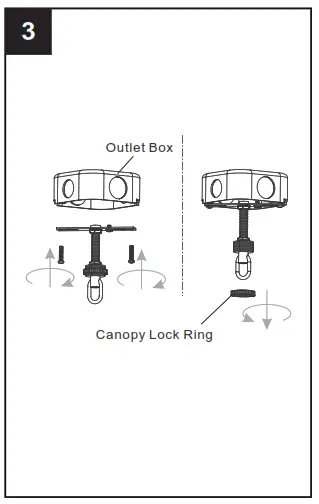

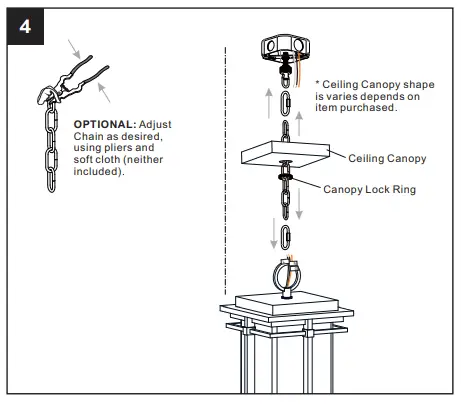

Install Crossbar AssemblyInstall Fixture Chain

Suggested chain length for Ceiling height: 8 feet ceiling: use links of 9 chain and 2 quick links 9 feet ceiling: use links of 19 chain and 2 quick links 10 feet ceiling: use links of
29 chains and 2 quick links.

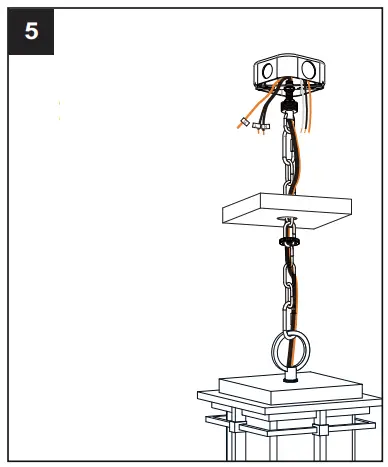

Pull Supply Wires
Pull the supply wires with ground wire through the chain alternate links.

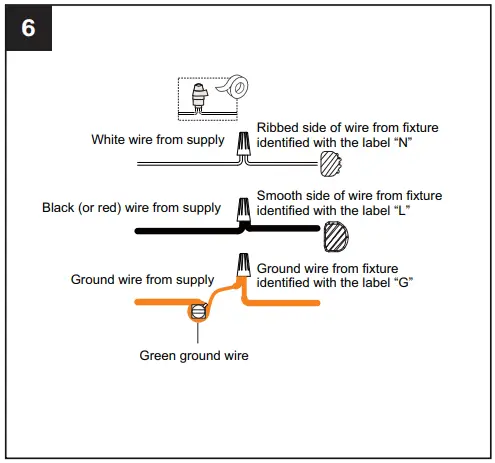

Wiring

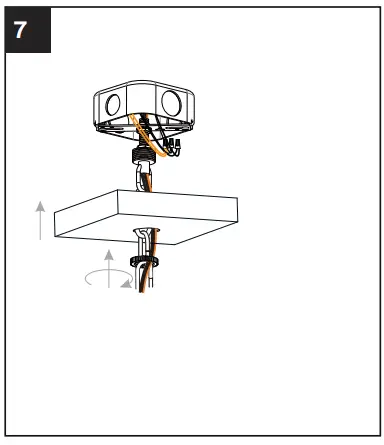

Install Ceiling Canopy

• The ceiling Canopy shape varies depending on the item purchased.

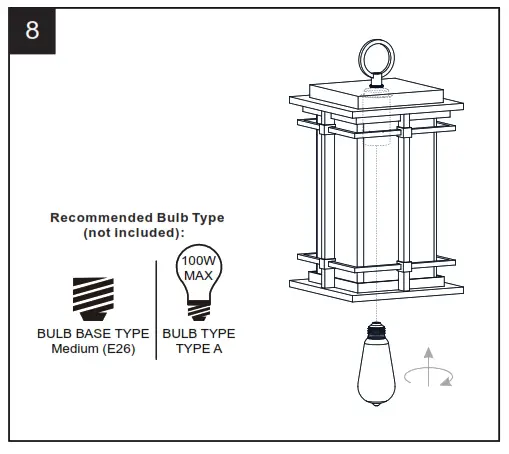

Install Bulb
Install one correct bulb referring to fixture markings and/or labels for maximum wattage.

Your installation is now complete!
Restore electricity and save this sheet for future reference.
