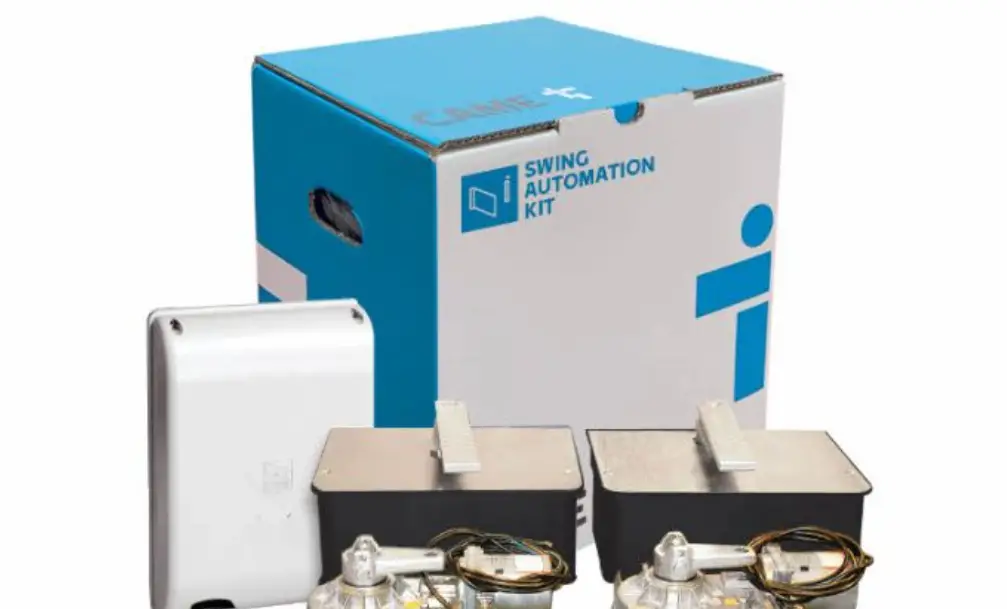

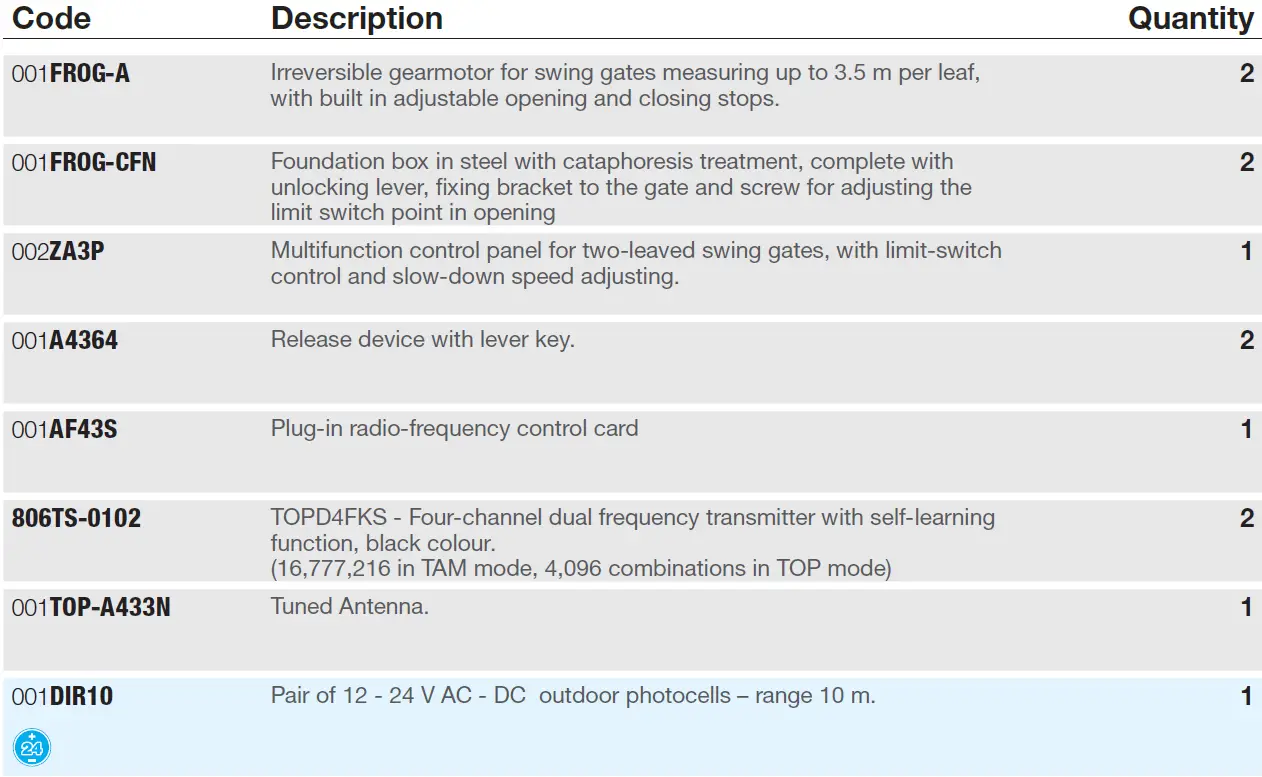

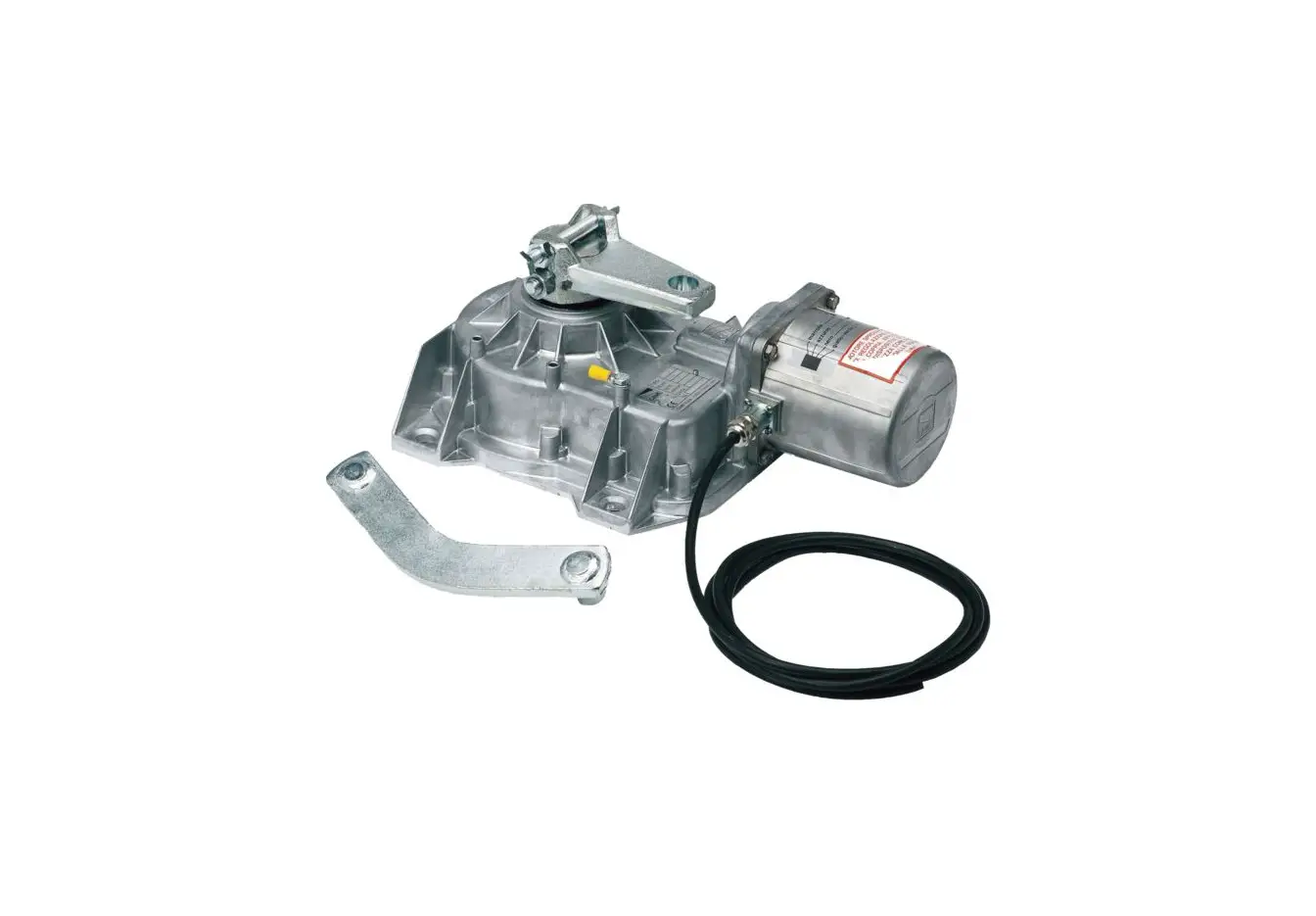

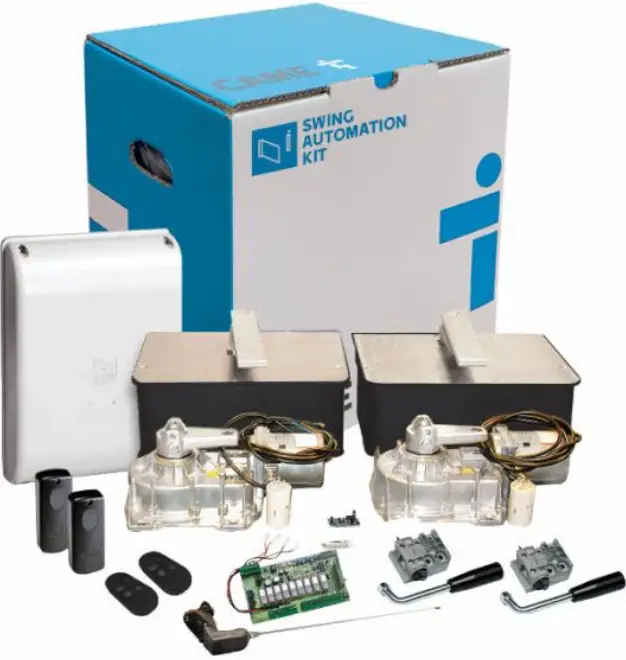

CAME FROG-P 230V Swing Gate Kit
- We would always advise you to spec your jobs with safety edges. When you see this symbol it is imperative that at least one is used.

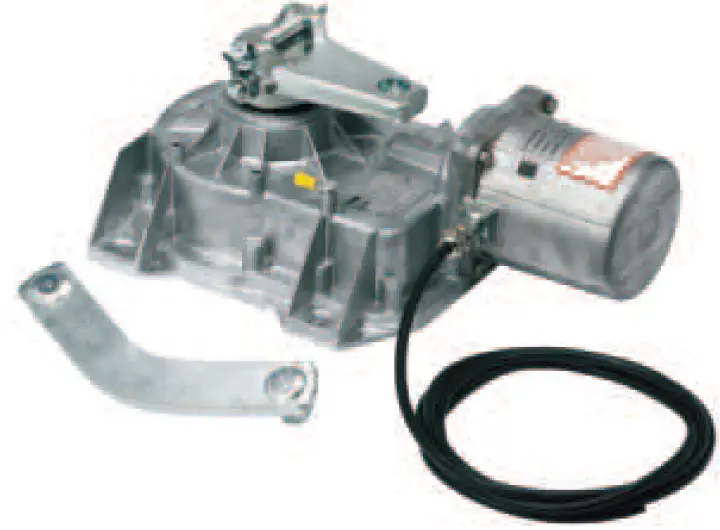

Below-ground solution suitable for fitting to gates in single homes and apartment buildings.
- The invisible solution to power your gate .
- High degree of protection against weathering (IP67).
- System automatically resets after the gate is manually released.
- Can open up to 180° (with the FL-180 accessory).
- Special steel foundation box with rustproof coating.
Adjustable built-in leaf stops.

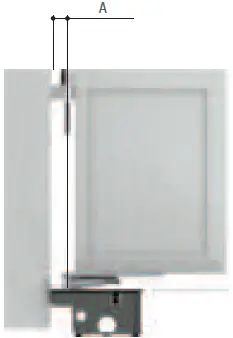

Dimensions (mm)
Operational limits
| MODEL | FROG-A | ||||
| Max. width of leaf (m) | *3,5 | *2,5 | 2 | – | |
| Max. weight of leaf (kg) | 400 | 600 | 800 | – | |
| NOTES: * We suggest fitting an electric lock onto the gate leaf. | |||||

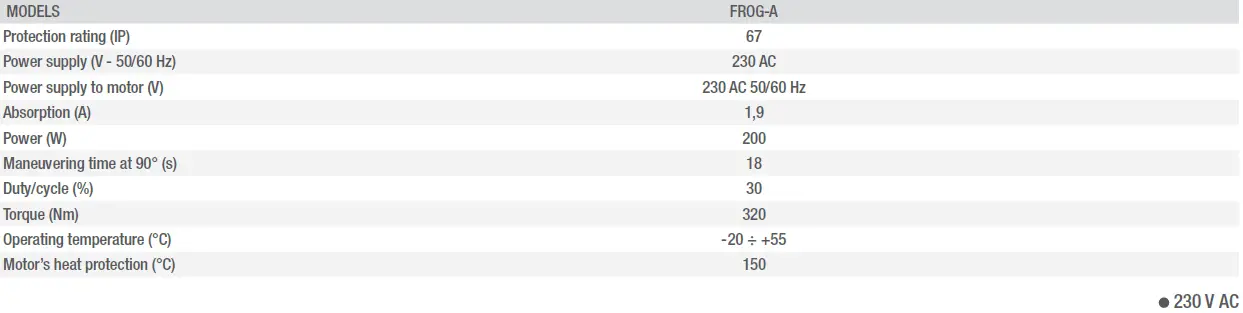

Technical characteristics

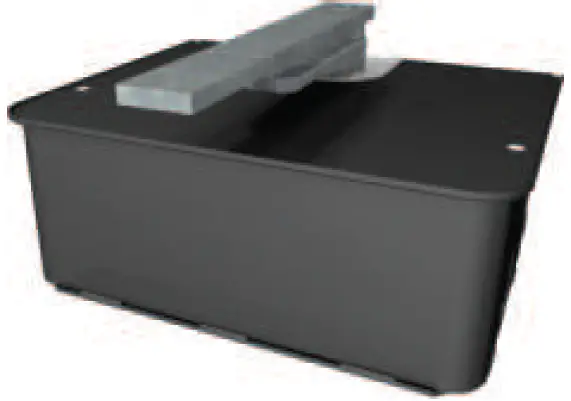

Foundation box in steel with cataphoresis treatment
- Complete with unlocking lever, fixing bracket to the gate and screw for adjusting the limit switch point in opening

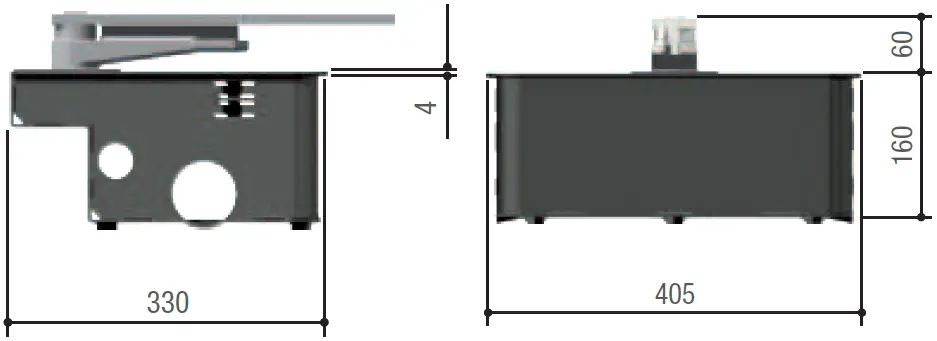

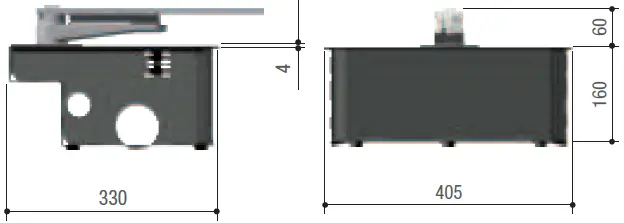

Dimensions (mm)

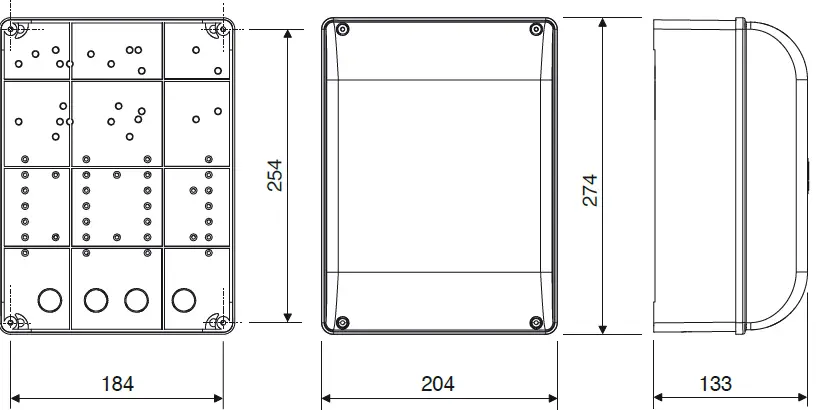

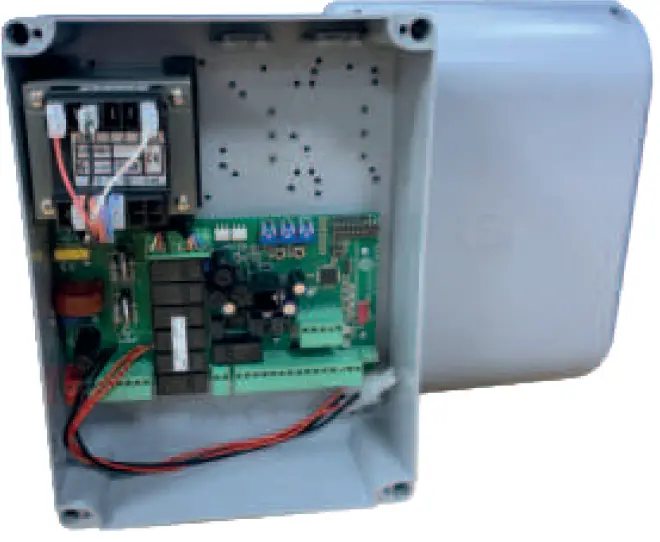

Control panel for 230V gearmotors
- Multi-feature control panel for swing gates, with manageable limit-switches and slow-down speed adjusting.
Dimensions (mm)
Technical characteristics
| MODEL | ZA3P |
| Protection rating (IP) | 54 |
| Power supply (V – 50/60 Hz) | 230 AC |
| Absorption when idle (mA) | 60 |
| Max. power* (W) | 600 |
| Casing material | ABS |
| Operating temperature (°C) | -20 to +55 |
| Insulation class |
Mechanical release device with lever key for Frog motor.
- Unlocking mechanism
- Release device lever key
- 4 M8 x 35 cheese headed hexagonal socket screws
- 4 safety lock washer
ACCESSORIES

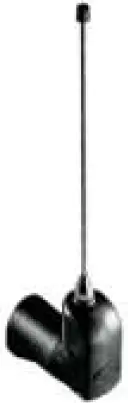

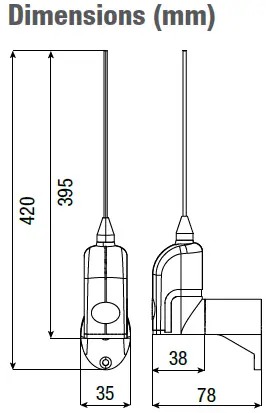

TOPA433N
Tuned Antenna for 433.92Mhz
Operational limits
Technical characteristics

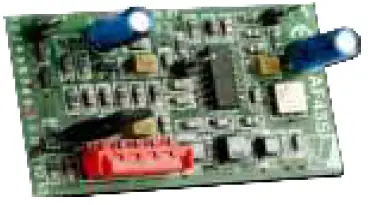

AF43S
Radio frequency control card 433.92MHz
- Dip-switches for code and function selection
- Function enabling button
- Red signalling LED
- Green signalling LED
- Backup board
- Plug-in connector on receivers

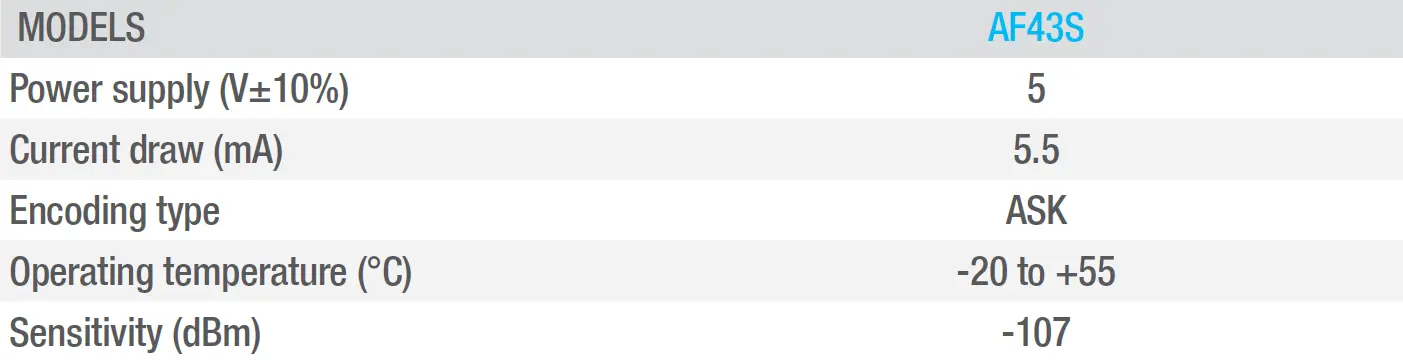

Technical characteristics

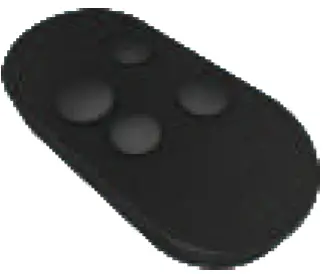

TOPD4FKS
Radio command at 433.92 and 868.35 Mhz fixed code
Dimensions (mm)
- Manages several operators on different frequencies.
- One device to manage two frequencies, that is, 433.92 MHz and 868.35 MHz.
- Uses only one CR2032 battery.
- Flat battery alert
- No setting required when selecting the frequency
- Comes in two-channel and four-channel versions.
- Available in six different colours.
- Surface-mounted receiver modules 806RV-0010 and 806RV-0020 – CAME KEY compatible.

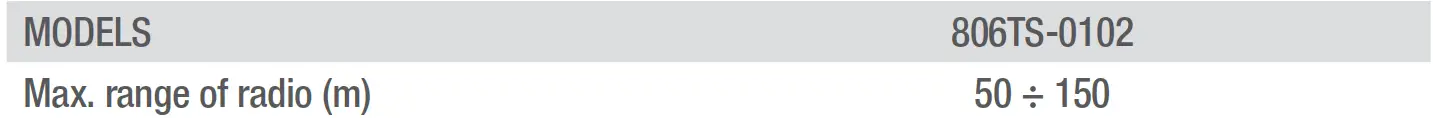

Operational limits

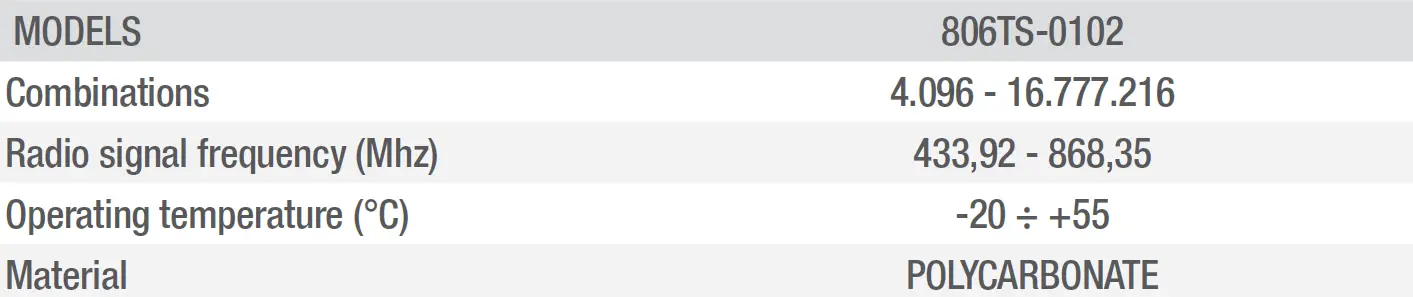

Technical characteristics
DIR10
Photocells
- Control the gate’s area of movement
- Infrared beam, even synchronized, to prevent any external signal disturbances.
- For the DIR series photocells, there is a double-height post, and a new PVC version of the post, for installing in entry and exit points where heavy vehicles drive through.
- High degree of protection against weathering.
Dimensions (mm)

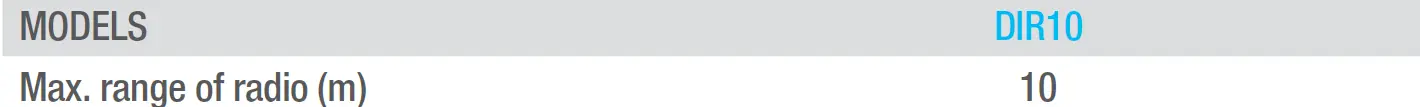

Operational limits

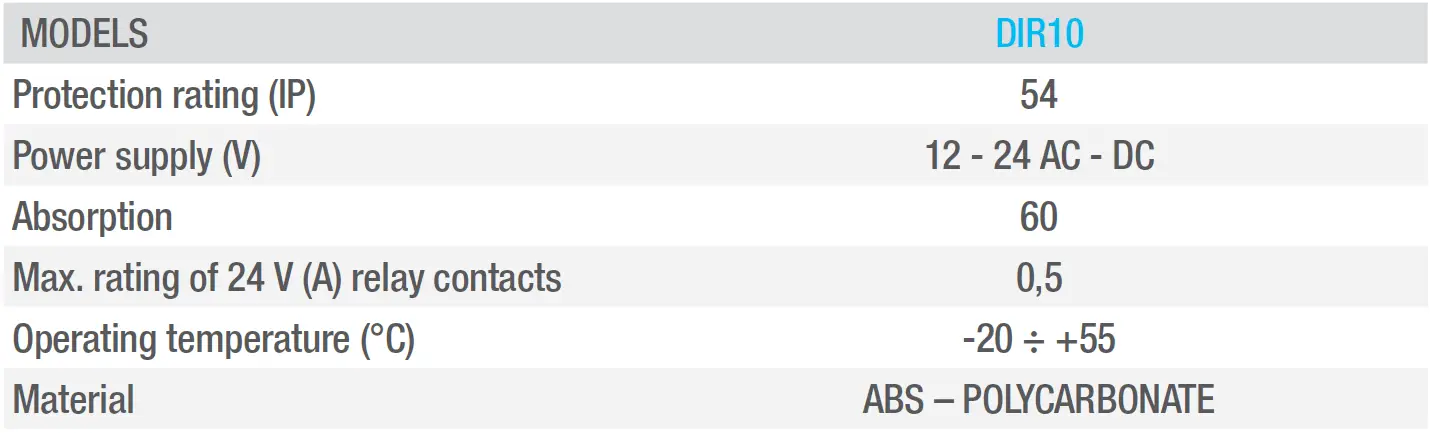

Technical characteristics
