Came Frogae-p 230v Swing Gate Kit Instructions

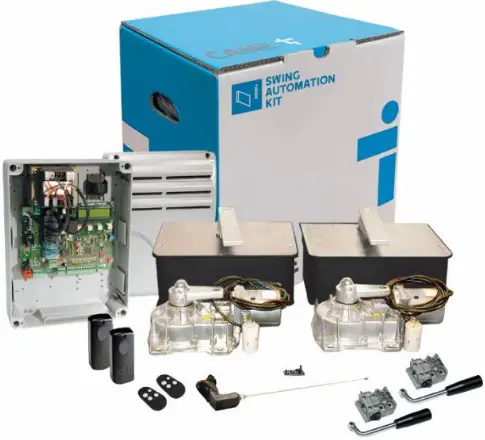

CAME FROGAE-P 230V Swing Gate Kit

We would always advise you to spec your jobs with safety edges. When you see this symbol it is imperative that at least one is used.

Code	Description	Quantity

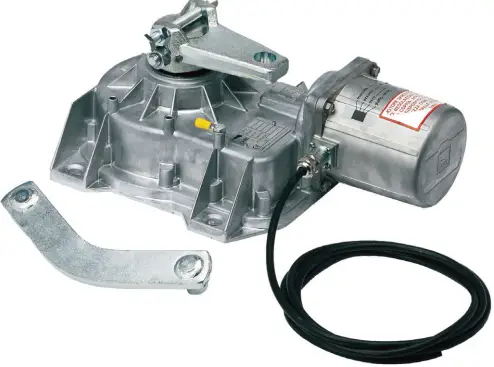

001FROG-AE	Irreversible gearmotor for swing gates of up to 3.5 m per leaf, with built in adjustable opening and closing stops.	2
001FROG-CFN	Foundation box in steel with cataphoresis treatment, complete with unlocking lever, fixing bracket to the gate and screw for adjusting the limit switch point in opening	2
002ZM3EZ	Multifunction control panel for swing gates with two leaves, graphic alerts display, testing of safety circuits for CAT 2 safety products and on-board radio programming.	1
001A4364	Release device with lever key.	2
001AF43S	Plug-in radio-frequency control card	1
806TS-0122	TOPD4RKS – Double frequency 4-button rolling code transmitter, black colour. 4,294,967,896 combinations.	2
001TOP-A433N	Tuned Antenna.	1
001DIR10	Pair of 12 – 24 V AC – DC outdoor photocells – range 10 m.	1

Below-ground solution suitable for fi tting to gates in single homes and apartment buildings

• The invisible solution to power your gate .
• High degree of protection against weathering (IP67).
• System automatically resets after the gate is manually released.
• Can open up to 180° (with the FL-180 accessory).
• FROG-AE and FROG-A24E with encoder technology, tested in compliance with current regulatory standards.
• Special steel foundation box with rustproof coating. Adjustable built-in leaf stops.

Dimensions (mm)

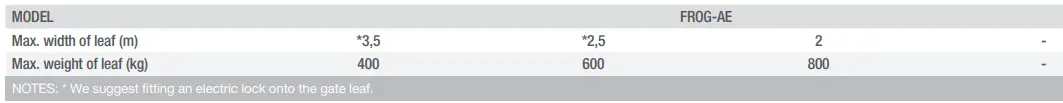

Operational limits

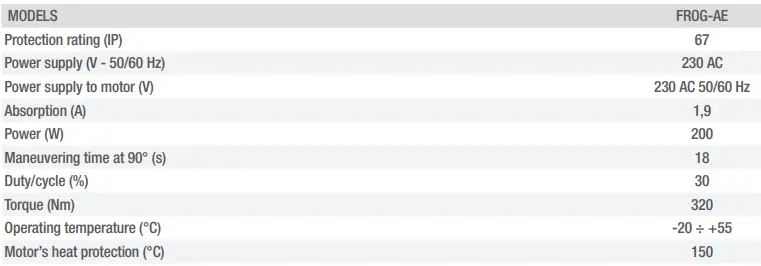

Technical characteristics

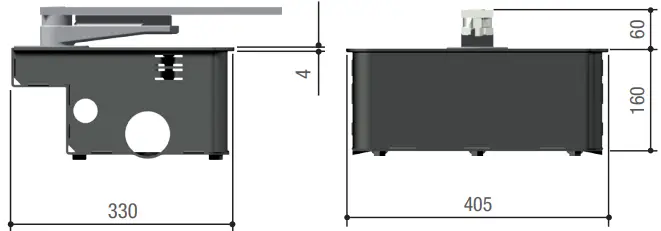

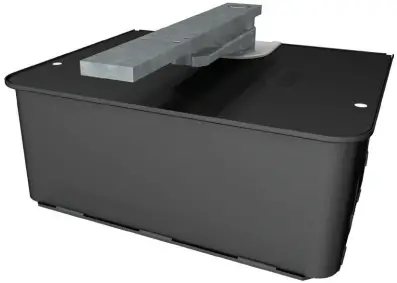

Foundation box in steel with cataphoresis treatment

Complete with unlocking lever, fi xing bracket to the gate and screw for adjusting the limit switch point in opening

Dimensions (mm)

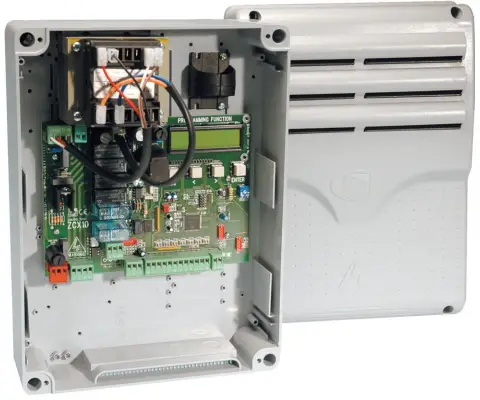

Control panel for 230V gearmotors

Multi-feature control panel for swing gates, with manageable limit-switches and slow-down speed adjusting.

Dimensions (mm)

Technical characteristics

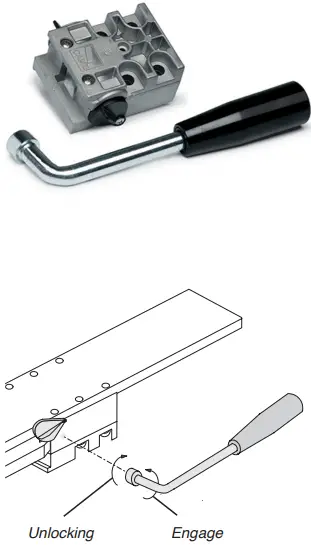

Mechanical release device with lever key for Frog motor

• Unlocking mechanism
• Release device lever key
• 4 M8 x 35 cheese headed hexagonal socket screws
• 4 safety lock washer

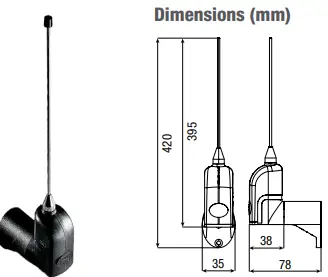

TOPA433N

Tuned Antenna for 433.92Mhz

Operational limits

• MODELS: TA433N
• Max. range of radio (m): 50 ÷ 150

Technical characteristics

• MODELS: TA433N
• Radio signal frequency (Mhz): 433.92Mhz

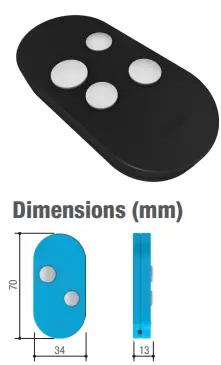

TOPD4RKS

Rolling code 433.92 and 868.35 Mhz radio control

• Manages several operators on different frequencies.
• One device manages two frequencies, that is, 433.92 MHz and 868.35 MHz.
• More secure thanks to the dynamic code.
• Uses only one CR2032 battery.
• Flat battery alert
• No setting required when selecting the frequency
• Comes in two-channel and four-channel versions.
• Available in six diffevent colors.
• Surface-mounted receiver modules 806RV-0010 and 806RV-0020
• CAME KEY compatible.

Operational limits

• MODELS: 806TS-0122
• Max. range of radio (m): 50 ÷ 150

technical characteristics

• MODELS 806TS-0122
• Combinations 4.294.967.896
• Radio signal frequency (Mhz) 433,92 – 868,35
• Operating temperature (°C) -20 ÷ +55
• Material POLYCARBONATE

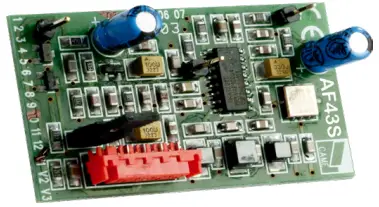

AF43S

Radio frequency control card 433.92MHz

• Dip-switches for code and function selection
• Function enabling button
• Red signalling LED
• Green signalling LED
• Backup board
• Plug-in connector on receivers

Technical characteristics

• MODELSAF43S
• Power supply (V±10%)5
• Current draw (mA)5.5
• Encoding typeASK
• Operating temperature (°C)-20 to +55
• Sensitivity (dBm)-107

Photocells

• Control the gate’s area of movement
• Infrared beam, even synchronised,to prevent any external signal disturbances.
• For the DIR series photocells, there is a double-height post, and a new PVC version of the post, for installing in entry and exit points where heavy vehicles drive through.
• High degree of protection against weathering.

Operational limits

• MODELS DIR10
• Max. range of radio (m) 10

Technical characteristics

• MODELS DIR10
• Protection rating (IP) 54
• Power supply (V) 12 – 24 AC – DC
• Absorption 60
• Max. rating of 24 V (A) relay contacts 0,5
• Operating temperature (°C) -20 ÷ +55
• Material ABS – POLYCARBONATE
