sOmfy IXENGO JS 230V Swinging Gates Instruction Manual
Instructions
Fix&GO

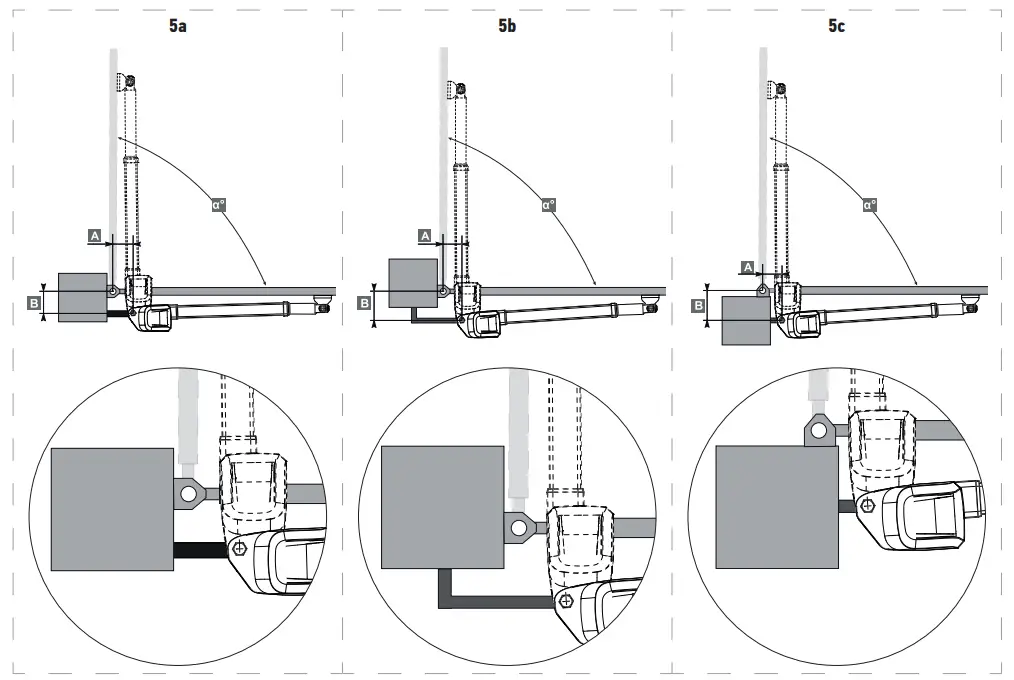

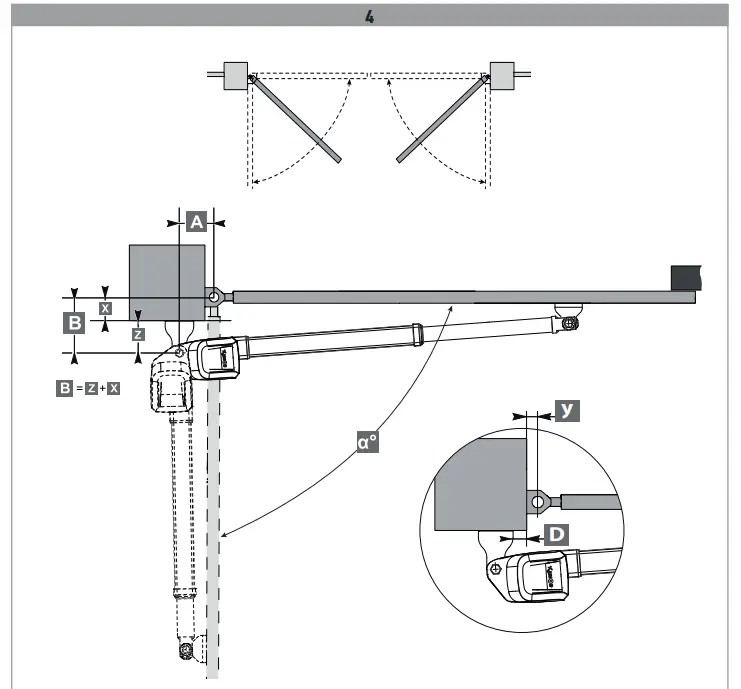

| α° | X (mm) | B (mm) | A max speed | A recommended | A max |
| α° ≤ 90 ° | 20 | 95 | 83 | 103 | 203 |
| 40 | 115 | 83 | 106 | 183 | |
| 60 | 135 | 83 | 143 | 163 | |
| 80 | 155 | 83 | 143 | 143 | |
| 100 | 175 | 83 | 123 | 123 | |
| 120 | 195 | 83 | 83 | 83 | |
| α° ≤ 115 ° | 20 | 95 | 103 | 143 | 143 |
| 40 | 115 | 123 | 123 | 123 | |
| α°≤ 125 ° | 20 | 95 | 123 | 123 | 123 |
| α° | B (mm) | A (mm) |
 | ||
| α° ≤ 90 ° | 130 | 100 ≤ A ≤ 220 |
| 150 | ||
| 170 | ||
| 190 | ||
| 210 | ||
| 230 | ||
| 250 | ||
