OWNER’S MANUAL
T10-343 TRAILER HITCH MOUNT
MONTAGE D’ATTELAGE DE REMORQUE

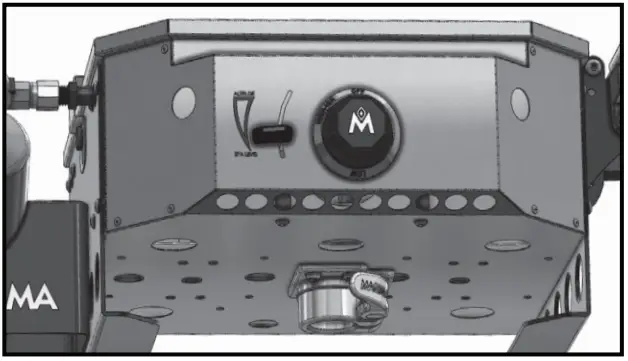

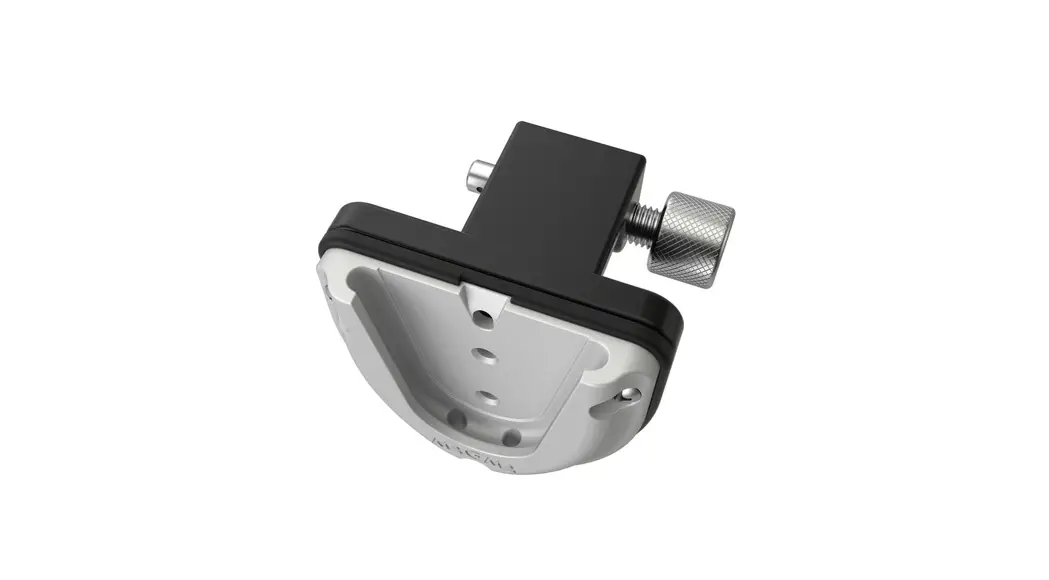

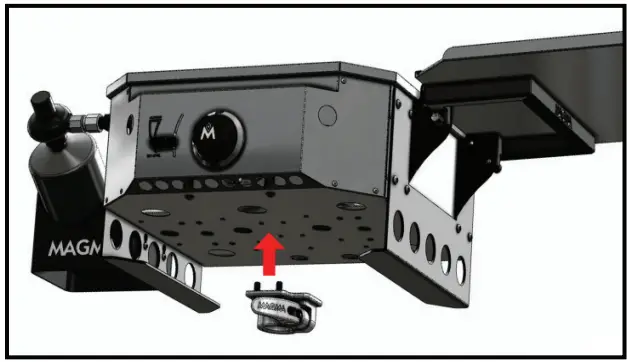

- Align the bracket with 4 fasteners to the hole pattern on the bottom center of the Firebox or Grill.
- Secure the fasteners and bracket to the Firebox or Grill.

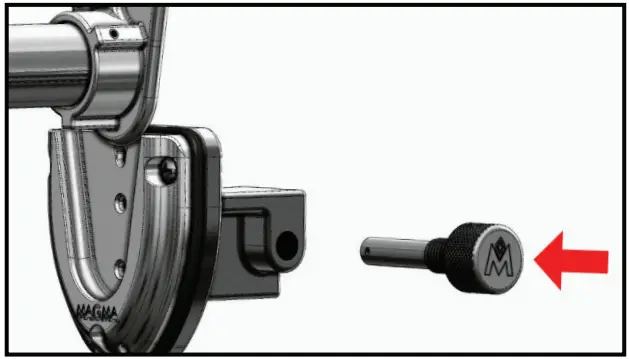

- Insert the receiver bracket into the trailer hitch and secure by pushing the bolt completely through the hitch receiver.

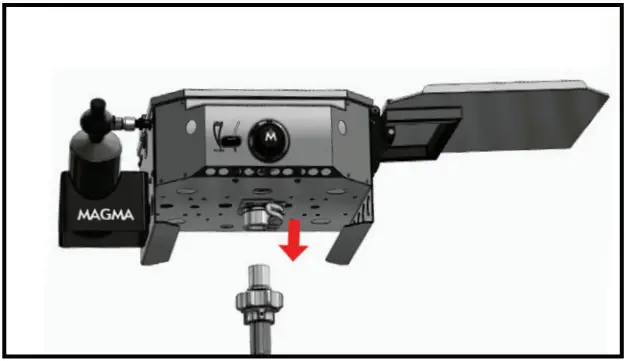

- Slide the mount arm into the receiver bracket until it locks into place.

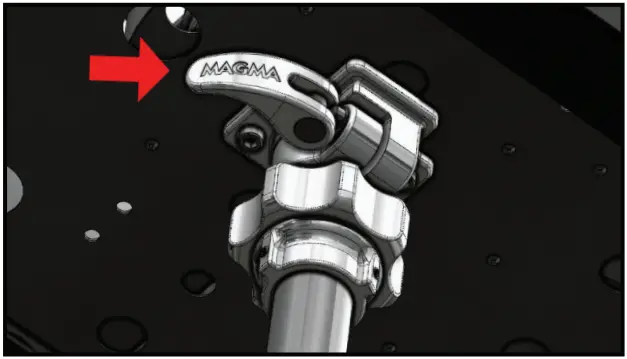

- Secure and tighten the bracket to the mounting arm with the quick release lever. To release the grill from the mount, release the lever and pull the grill off the mounting arm.

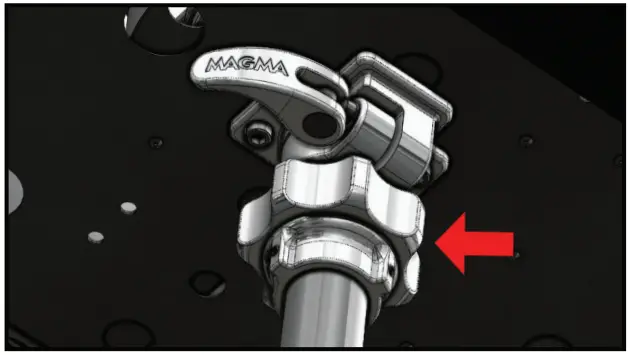

- To make any leveling adjustments, loosen the knob, level the grill, and then retighten the knob.
NOTE: To remove the mounting arm from the receiver bracket, pull the pin at the top to release the arm and pull the arm up.
