Magma T10-348 Quad Pod Mount Stand Owner's Manual

T10-348 Quad Pod Mount Stand
Owner’s Manual

OWNER’S MANUAL
T10-348 QUAD POD MOUNT

T10-348 Quad Pod Mount Stand

T10-348 Quad Pod Mount Manuel

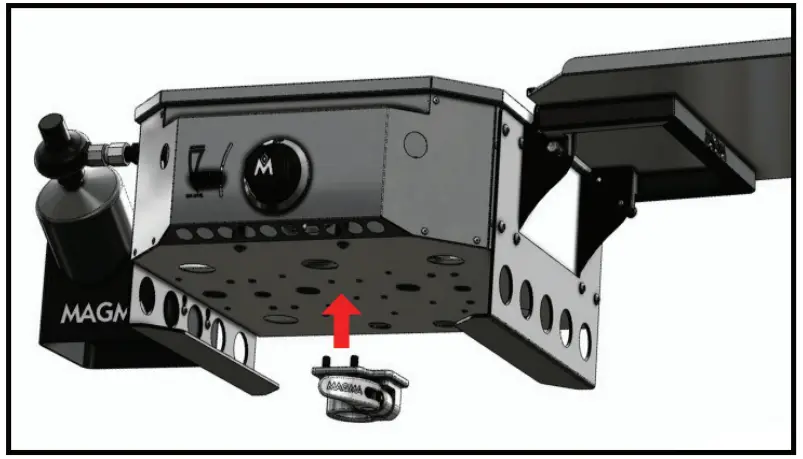

1. Align the bracket with 4 fasteners to the hole pattern on the bottom center of the Firebox or Grill.

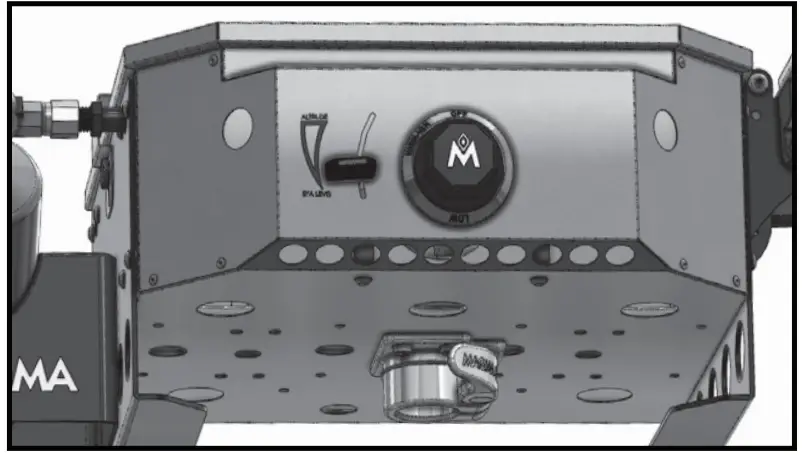

2. Secure the fasteners and bracket to the Firebox or Grill

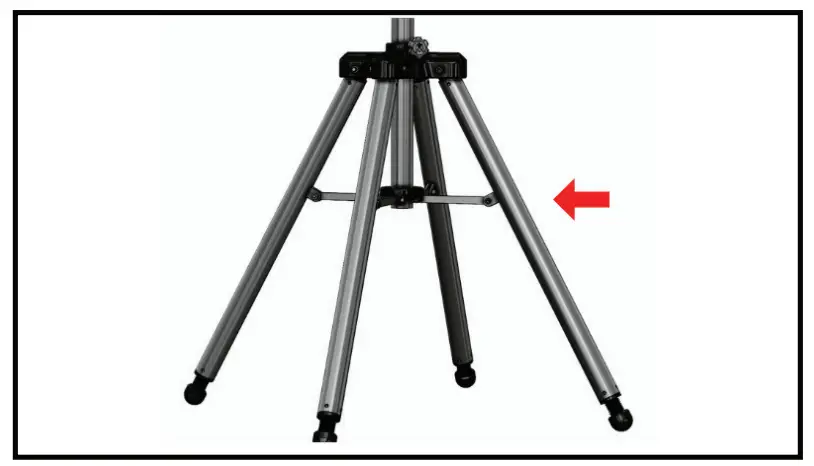

3. Open legs of quad pod stand, until center pole locks into place.

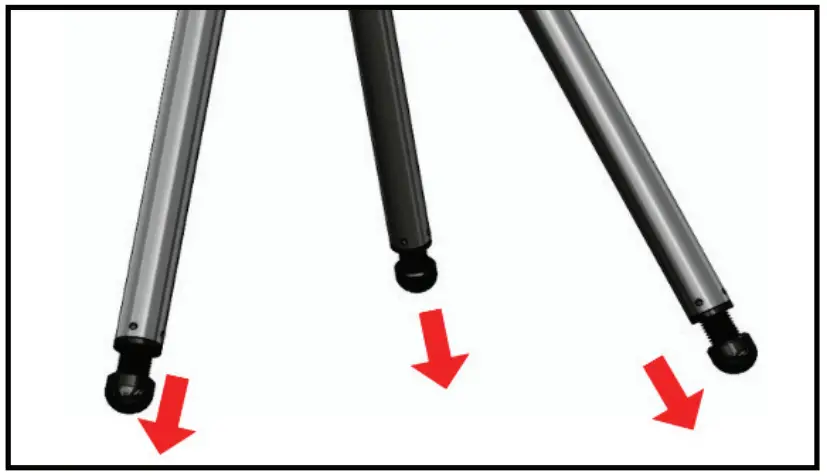

4. Turn black knobs at the bottom of legs to provide leveling up to 5 inches.

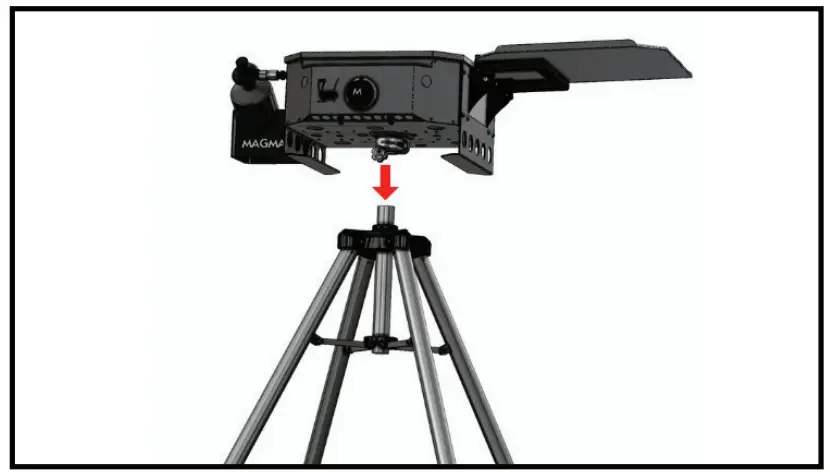

5. With the quick release in the open position, place the Firebox or Grill onto the Quad Pod stand.

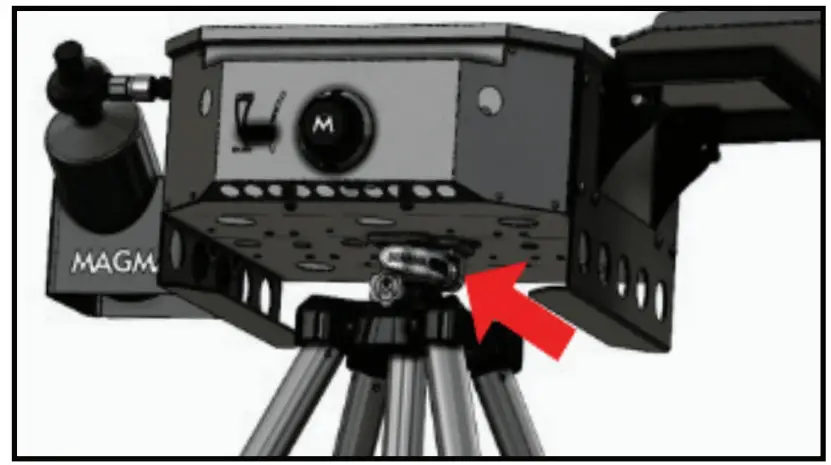

6. Secure and tighten the bracket to the mounting arm with the quick release lever. To release the grill from the mount, release the lever and pull the grill off the mounting arm.

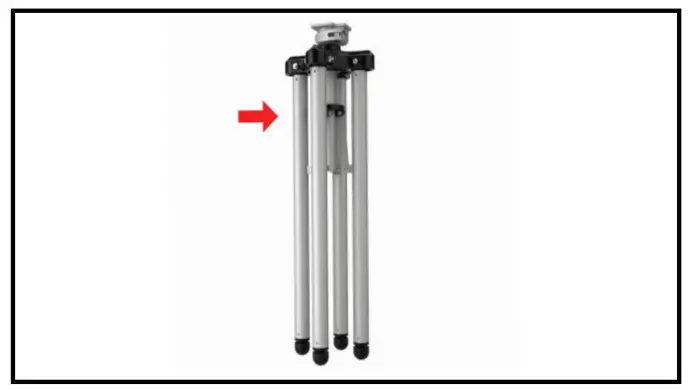

NOTE: To close the Quad Pod, pull the black collar on the center pole up until the legs pull in. off the mounting arm.

Magma Products, LLC
3940 Pixie Avenue, Lakewood,
CA 90712 USA 562-627-0500
[email protected]
magmaproducts.com
