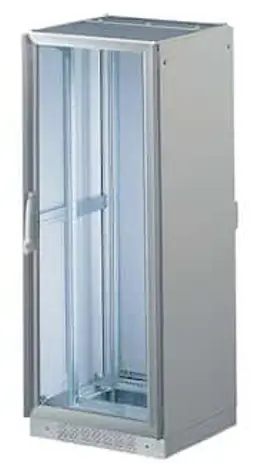

TE7000 19 Inch Network Rack
Instructions
State: 24/09/2022 (Source: rittal.com/au-en)
TE7000 19 Inch Network Rack
TE 7000.580 – Network racks TE 7000
TE 7000 IT enclosure, prepared for the individual interior installation.
Features
| Model No. | TE 7000.580 |
| Benefits | No frame structure Optimum accessibility Readily dismantled and therefore easily installed |
| Material | Sheet steel Glazed door: Single-pane safety glass, 4 mm |
| Surface finish | Mounting frame: Dipcoat-primed Enclosure panels: Powder-coated |
| Colour | RAL 7035 |
| Supply includes | Self-supporting 482.6 mm (19″) mounting frames, front and rear, depth-variable Glazed door at the front, incl. 130° hinge, recessed handle and security lock 3524 E Sheet steel door at the rear, including 130° hinge, security lock 3524 E Side panels, lockable, including security lock 3524 E Base frame with maximum cut-out (for optional population with module plates) Roof plate including brush strip for cable entry and concealed cutout for optional fan. 4 levelling feet, M12, including base/plinth adaptor (supplied loose) Spacers, 20 mm (supplied loose) to raise the roof |
| Dimensions | Width: 800 mm Height: 2,200 mm Depth: 600 mm |
| Units | 47 U |
| Distance between levels as delivered | 495 mm |
| Basic material | Sheet steel |
| Packs of | 1 pc(s). |
| Weight/pack | 120.2 kg |
| Copper weight (kg per piece) | 0 |
| EAN | 4.02818E+12 |
| ETIM 7.0 | EC002499 |
| ECLASS 8.0 | 27180207 |
Tender text
Network enclosure TE 7000
Screw-fastened, dismantling enclosure construction based on a self-supporting 482.6 mm (19.) mounting profile which also acts as the enclosure frame.
Modular roof and bottom frame connected to a supporting rack via imperial mounting frames. Plug-type, lockable side panels including security lock 3524E.
Glazed door at the front, with 4 mm safety glass, sheet steel door at the rear. Both including two-point locking rod, handle tray, safety lock 3524E, may be replaced by an Ergofrom-S handle for optionally integrating a semi-cylinder. Door hinges may be swapped, door opening angle 130°. Roof plate with integral brush strip, fan unit ready for connection including thermostat control may be retrofitted optionally.
Interior installation is via two depth-adjustable 482.6 mm (19.) mounting frames with integral 25 mm system holes. The distance between the 482.6 (19.) angles is freely selectable.
Maximum load capacity of one mounting level is 200 kg, i.e. max. 400 kg for each rack.
The enclosure is bayable. A base/plinth may be mounted optionally.
Supply includes: enclosure including levelling feet and spacers for raising the roof.
Material: sheet steel
Surface finish: powder-coated in RAL 7035
Dimensions: WxHxD: 800x2200x600 mm
Available mounting height: 47 U
Protection category: IP 20
