D800T4F Powerful plus Compact
Air Compressors
Owner’s Manual

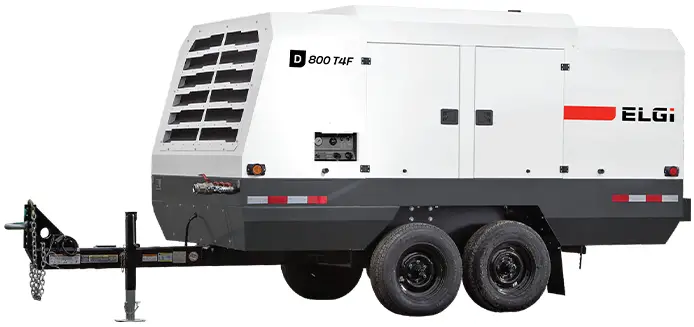

D800T4F Powerful plus Compact Air Compressors
The D800T4F gets the job done whether you are using it for abrasive blasting, industrial backup, or utility work. The powerful FPT engine and efficient ELGi airend reduce ownership costs.
- Powered by an FPT NEF 67 Tier 4 Final turbocharged diesel engine
- 5-Year/Unlimited Hour Airend Warranty
- Operates at 150psi / 800cfm
- The Intelligent Start/Stop System prevents cold-starting and blowback
- 3 x 3/4″ and 1 x 2″ service valves gives you the flexibility needed to handle any job
- Tandem axles with electric brakes provide safe and reliable towing
OPTIONS
Aftercooler / Cold Weather Package / Skid / Less Running Gear / Telematics
COMPRESSOR
| Operating Pressure | 150 psi |
| Free Air Delivery | 800 cfm |
| Minimum Working Pressure | 73 psi |
| Drive System Engine-Airend | Direct Drive |
| Compressor Cooling System | Air /Oil |
| Oil Cooling Capacity | 14.53 gal |
| Air Outlet Temperature | 105°F + Ambient Temperature |
| Outlet Valves | 3 x 3/4″+ 1 x 2• |
| Battery Capacity | 2 x 12V 132Ah 950A |
| Fuel Tank Capacity | 100 gal |
| Fuel Consumption | 8.7 gph |
| Dimensions with Running Gear | 1-201″ W-77″ H-93″ |
| Dry Weight with Running Gear | 8,175 lbs |
DIESEL ENGINE / ENVIRONMENTAL CONDITIONS
| Engine Make | FPT |
| Engine Type | NEF 67 |
| Engine System | 4 Strokes – Turbo Intercooler Common Rail |
| Displacement | 6700 cc |
| N. Cylinders | 6 |
| Aspiration | Turbo Intercooler |
| Max Engine Power © 2200 rpm | 254 HP |
| Max Engine Speed | 2100 RPM |
| Min Engine Speed | 1400 RPM |
| Cooling System | Water |
| Cooling System Capacity | 8.98 gal |
| Lubrication System | Oil |
| Lubrication System Capacity | 4.75 gal |
| Max Ambient Temperature | 122°F |
| Min Working Temperature | 14°F |
SERVICE + SUPPORT
> 5-Year/Unlimited Hour Airend Warranty
>1-Year/2,000-Hour FPT Engine Warranty
> 1-Year/2000-Hour Full Machine Warranty
> Parts + Service Help: 7014-523-4123 or [email protected]
