D425T4F
POWERFUL +COMPACT

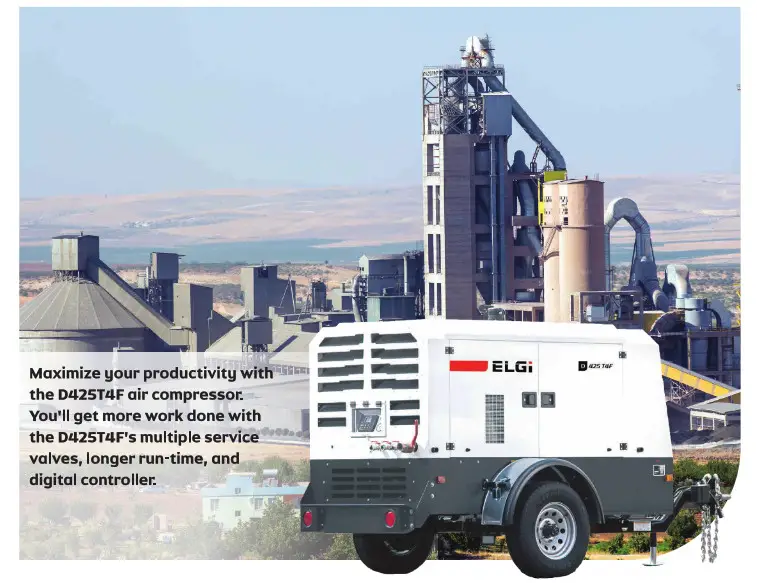

D425T4F Air Compressor
5-Year/Unlimited Hour Airend Warranty
> 2x 3/4″ and 1x 2″ service outlets are placed at the rear of the machine with the digital controller for operator safety
> The Intelligent Start/Stop System prevents cold-starting and blowback > Cummins’ quiet and efficient engine provides 11-hours of runtime
> Large, double-doors on both sides of the D425T4F allow for easy access to the spin-on filters and the oversized coolers for fast cleaning
OPTIONS
JS Aftercooler | Cold Weather Package | Skid | Telematics
| COMPRESSOR | |
| Operating Pressure | 100 -125 psi (Adjustable) |
| Free Air Delivery | 425 cfm |
| Minimum Working Pressure | 73 psi |
| Drive System Engine-Airend | Direct Drive, Twin Screw Rotors |
| Compressor Cooling System | Air/Oil |
| Oil Cooling Capacity | 7.79 gal |
| Air Outlet Temperature | 105°F + Ambient temperature |
| Outlet Valves | 3 x 3/4″+ 1 X 2″ |
| Battery Capacity | 2 x 12V 74 Ah 680A |
| Fuel Tank Capacity | 53 gal |
| Consumes | 4 gph |
| Dimensions with Running Gear (Skid Configuration) | L-168″ W- 76″ H-78″ (Skid L-112″ W- 54″ H- 72″) |
| Dry Weight with Running Gear (Skid Configuration) | 4,950 lbs (Skid 4,345 lbs) |
| DIESEL ENGINE | |
| Engine Make | CUMMINS |
| Engine Type | QSF 3.8 DOC-SCR, DEF |
| Engine System | 4 Strokes – Turbo Intercooler Common Rail |
| Displacement | 3800 cc |
| N. Cylinders | 4 |
| Aspiration | Turbo Intercooler |
| Max Engine Power | 130 HP |
| Max Engine Speed | 2200 RPM |
| Min Engine Speed | 1200 RPM |
| Cooling System | Water |
| Cooling System Capacity | 5.81 gal |
| Lubrication System | Oil |
| Lubrication System Capacity | 4.12 gal |
| Max Ambient Temperature | 122°F |
| Min Working Temperature | 14°F |
SERVICE + SUPPORT
5-Year/Unlimited Hour Airend Warranty
2-Year/4000-Hour Cummins Engine Warranty
1-Year/2000-Hour Full Machine Warranty
> Parts + Service Help: 704-523-4123 or [email protected]
