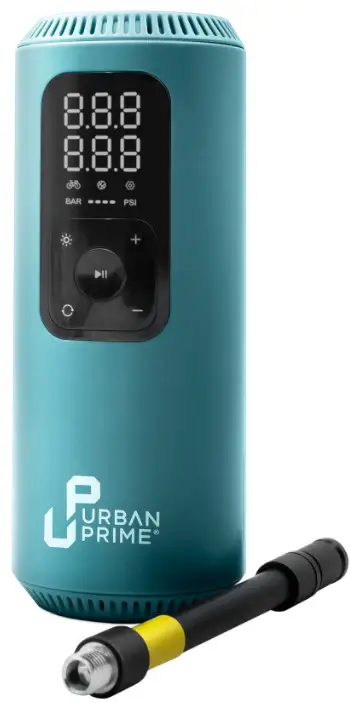

Portable electric air compressor

Thank you for purchasing mini electric air pump. Please read this user manual carefully before using the product and keep it properly for reference.

Attention

1. Do not leave away from the product during inflating.
2. Keep away from combustible and explosives.
3. Avoid moisture, sand and prevent from falling.
4. Do not store the product in a place that is too cold or hot.
5. Since the inflator is equipped with lithium battery, do not put it into fire or discard casually.
6. Keep it away from children.

Packing list

1x Mini electric air pump
1x Storage bag for mini electric air pump
1x Presta adapter valve
1x Type-C cable
1x Schrader valve
1x Inflating needle

Specification

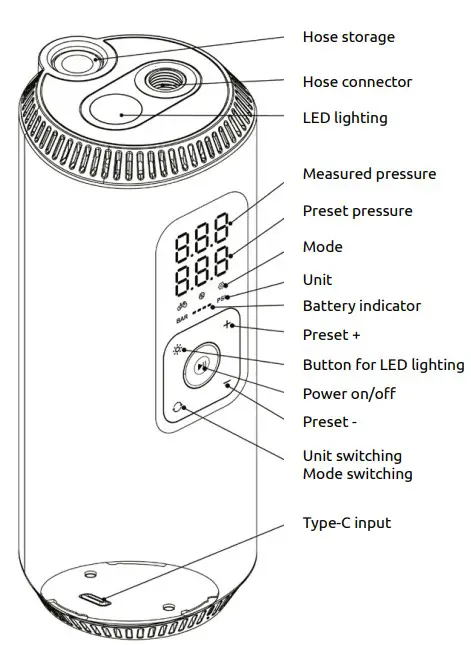

Instruction

1. Turn on/off

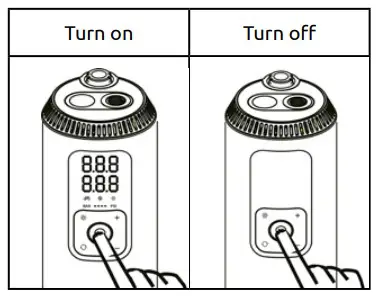

   Press and hold the on/off button for 3 seconds, as shown in the picture.
   Turn on successfully Press and hold the on/off button for 3 seconds, as shown in the figure. Turn off successfully.
   In the power-on state, short press the start-stop button to start the inflation and automatically stop the inflation when the preset air pressure value is reached.
   The pump will automatically shut down after no operation in 3 minutes. When the battery is low, the automatic protection shutdown.

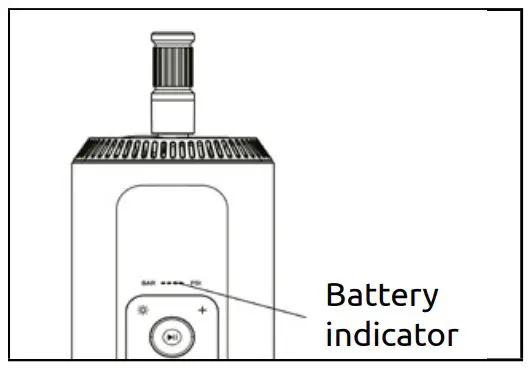

2. Battery indicator

   4 bars of battery and are constant on: 100%
   3 bars of battery and are constant on: 60%
   2 bars of battery and are constant on: 30% 1 bar of battery left and flashes anxiously: 5% (Battery is low and need to be charged)
3. Hose storage

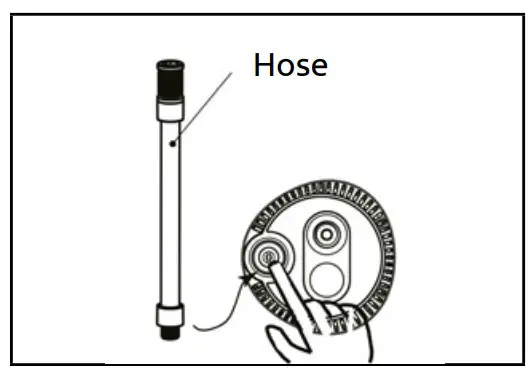

   The hose can be stored in the product storage hole, as shown on the left. Insert the threaded side of hose into the storage hole.
4. Charging method

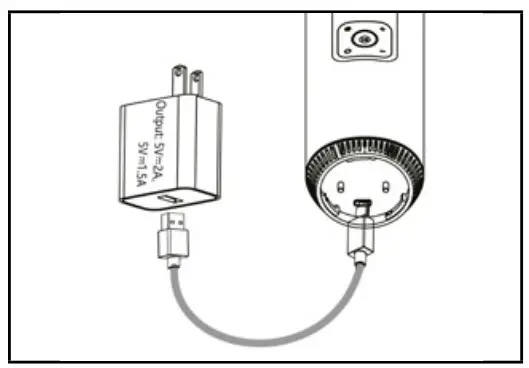

   To charge, please connect the Type-C charging cable (included) to a power adapter (not included) of about 5V/1,5A. State of battery indicator:
   Flashes: charging Continuous light: full.
   Note: the air pump cannot be used during charging.
5. Connection Shrader valve

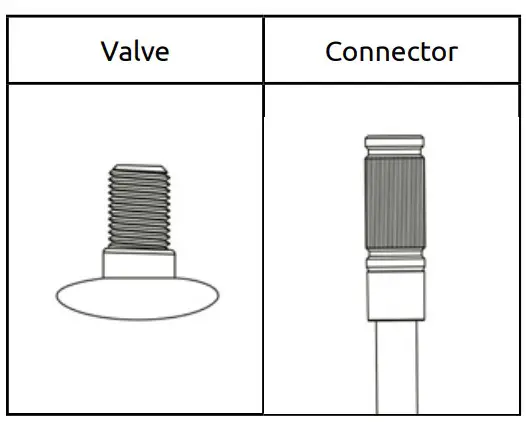

   Mountain cycling, electrical bike, motorbike, and car, are equipped with Schrader valve. Inflation: connect Schrader valve with the connector to start inflation.
   Deflation: press the inner needle of valve with proper tool, such as Allen wrench.
   Presta adapter valve

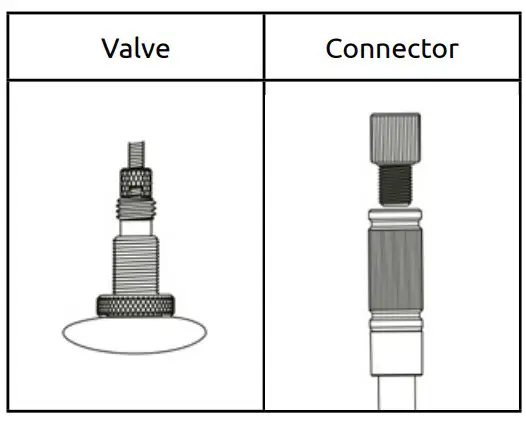

   Road cycling and mountain cycling may need to use the adapter for Presta valve. Inflation:
   1. Connect Presta valve to the adapter.
   2. Unscrew the Presta valve of tire.
   3. Connect Presta valve with the adapter to start inflation.
      Deflation: Unscrew the screw of Presta valve and press the valve to start deflation.
      Inflating needle

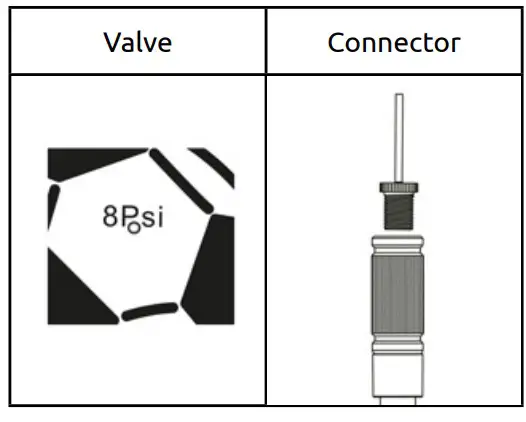

      Basketball and football need to use inflating needle for inflation.
      Inflation: connect inflating needle with Shrader valve and insert the needle into the valve of ball.

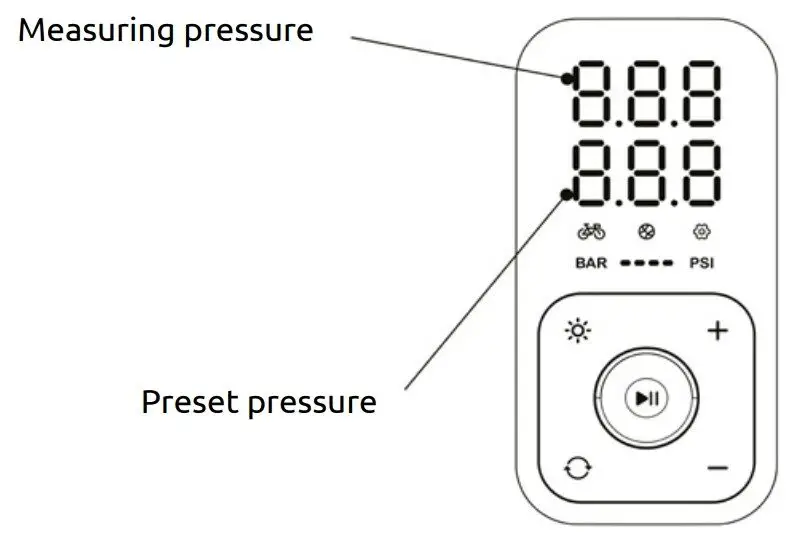

6. Measuring pressure

7. Mode switching
   Press to select different modes:

   Scene mode	Reference value	Adjustable range
   Bicycle mode	38PSI	0~150PSI/0~10.3BAR
   Custom mode	100PSI	0~150PSI/0~10.3BAR
   Ball mode	8PSI	0~150PSI

8. Unit switching
   Long press  to select different units. The unit formula is shown below:
   1BAR = 14.5PSI
9. Preset pressure
   Press: adjust the preset measure value.
   Long press: quickly adjust the preset pressure value.
   Note: the mode and preset pressure value are automatically saved by the inflator. You only need to switch the mode for the next use, and the preset pressure will be automatically set.
10. LED lighting
    Pressto turn on LED light. Press it again to turn off.
11. Reset pressure value
    Turn the power on, when the measured pressure value is not  zero, long pressfor 3 seconds to enter automatically reset.
    Do not connect the product to any inflatables when resetting.
    Note: The product has been calibrated from the factory. When the difference in altitude or the sensor tolerance shows that the measured pressure is not zero, manual reset can improve the accuracy of pressure detection. It is not recommended to do reset in a high temperature.
    Warm tips:
    1. The electric air pump can only be used for replenishing car tires in a emergency. Do not use it for a long time inflation.
    2. The mini pump doesn’t auto. stop when inflating balloon or toy ball of which the air pressure value is too small to be sensored.

12. Look up the pressure value of object
    To guarantee safe operation, please look up the pressure value of the object you want to inflate, preventing from explosion accident caused by excessive inflation.
    Bicycle tire

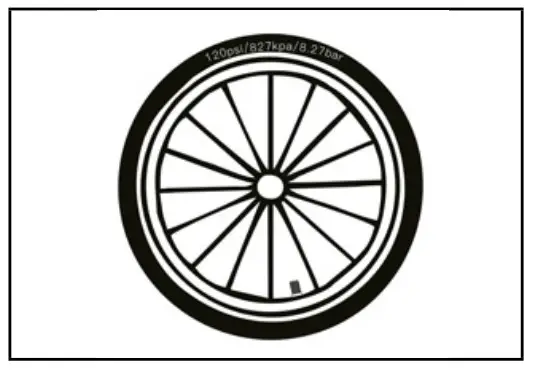

    The pressure range of bicycle tire is marked in its side.
    The load weight is related to inflation pressure.
    For more details, please check out user manual for your bike.
    Balls

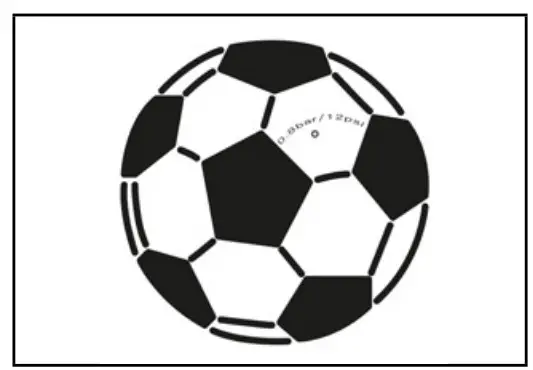

    The pressure range of balls is marked inside of inflation port. The load weight is related to inflation pressure. For more details, please check out user manual for your balls.

Caution

The hose will be overheated after working for a long time. Do not touch the hose and the connector by hands immediately.

Pressure value of common inflatables

Troubleshooting
