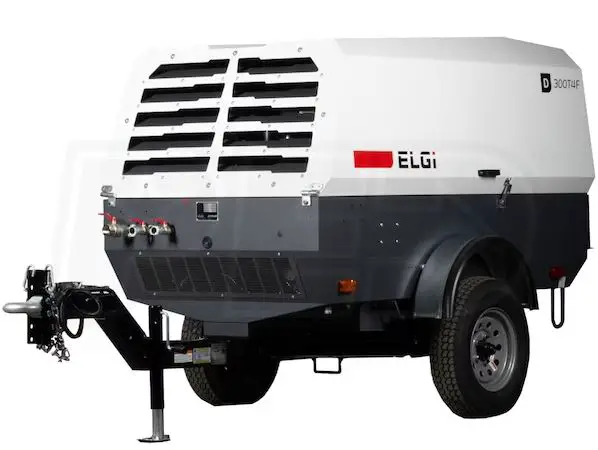

ELGi D300T4F Trailer Mounted Diesel Rotary Screw Air Compressor
ELGi D300T4F Trailer Mounted Diesel Rotary Screw Air Compressor
SPECIFICATION
- The 74 HP engine & dual-pressure system allows the D300 to be used on job sites where larger compressors are traditionally used
- Kohler’s quiet and efficient engine operates without DEF or a DPF
- 5-Year/Unlimited Hour Airend Warranty
- Built to last with a metal enclosure, user-friendly controls, and reliable running gear
- The Intelligent Start/Stop System prevents cold-starting and blowback
- The open-canopy design allows easy access to the spin-on filters and oversized coolers for fast cleaning
| COMPRESSOR | |
| Capacity – Pressure (psi) | 100 psi (Optional 150psi) |
| Capacity – Volume (cfm) | 290 cfm (220 cfm with High Pressure Option) |
| Minimum Working Pressure | 73 psi |
| Drive System Engine-Airend | Direct Drive, Twin Screw Rotors |
| Compressor Cooling System | Air/Oil |
| Oil Cooling Capacity | 4.27 gal |
| Air Outlet Temperature | 105°F + Ambient temperature |
| Outlet Valves | 2 X 3/4″+ 1 X 1″ |
| Battery Capacity | 12V 132Ah 950A |
| Fuel Tank Capacity | 24gal |
| Fuel Consumption | 2.45 gph |
| Dimensions with Running Gear | L- 144″ W- 66″ H- 67″ |
| Dry Weight with Running Gear | 3,395 lbs |
| DIESEL ENGINE | |
| Engine Make | KOHLER |
| Engine Type | KDI 2504-TCR, DOC Only |
| Engine System | Lt- Strokes – Turbo lntercooler Common Rail |
| Displacement | 2482 cc |
| N. Cylinders | |
| Aspiration | Turbo lntercooler |
| Max Engine Power @2600 RPM | 73.6 HP |
| Max Engine Speed | 2600 RPM |
| Min Engine Speed | 1600 RPM |
| Cooling System | Water |
| Cooling System Capacity | 4.49 gal |
| Lubrication System | Oil |
| Lubrication System Capacity | 2.64 gal |
| Max Ambient Temperature | |
| Min Working Temperature | |
SERVICE+ SUPPORT
- 5-Year/Unlimited Hour Airend Warranty
- 3-Year/4000-Hour Kohler Engine warranty
- 1-Year/2000-Hour Full Machine Warranty
- Parts+ Service Help: 704-523-4123 or [email protected]
OPTIONS
- Dual Pressure System
- Cold Weather Package
- Skid
- Telematics
- Dual Hose Reel
