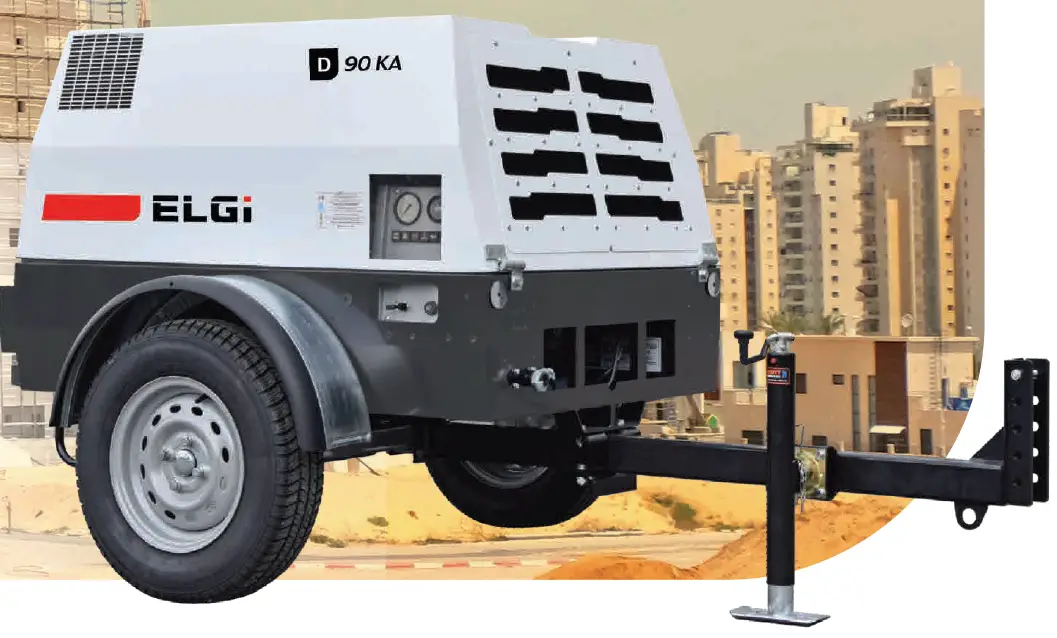

ELGi D90KA Trailer Mounted Diesel Rotary Screw Air Compressor
The D90KA is built to work as hara as you do. This 90cfm/100psi air 1 compressor has more standard features than other models in-·t-s class. You don’t need to sacrifice performance in order to have a smaller compressor.
- 5-Year/Unlimited Hour Airend Warranty
- Built to last with a metal enclosure, user-friendly controls, and reliable running gear
- The only 90cfm/100psi compressor to offer a standard toolbox
- Kubota’s D1105 T/.l.F diesel engine is the reliable workhorse of the construction industry and powers the D90KA.
- The open-canopy design allows easy access to the spin-on filters and oversized cooler for cleaning.
D90KA TECHNICAL DATA
| COMPRESSOR | |
| Capacity – Pressure (psi) | 100 psi |
| Capacity – Volume (cfm) | 90cfm |
| Minimum Working Pressure | 73psi |
| Drive System Engine-Airend | Belt Driven , Twin Screw Rotors |
| Compressor Cooling System | Air/Oil |
| Oil Cooling Capacity | 1.59 gal |
| Air Outlet Temperature | 105°F + Ambient temperature |
| Outlet Valves | 2 X3/4″ |
| Battery Capacity | 12V 74Ah 680A |
| Fuel Tank Capacity | 7.9gal |
| Fuel Consumption | 1 gph |
| Dimensions with Running Gear (Skid Configuration) | L-112″ W-56″ H-49″ (Skid L-48″ W-48″ H-48″) |
| Dry Weight with Running Gear (Skid Configuration) | 1,520 lbs (Skid 1,410 lbs) |
| DIESEL ENGINE | |
| Engine Make | KUBOTA |
| Engine Type | D1105-E4B |
| Engine System | 4 Strokes – lnline Direct Injection |
| Displacement | 1123 cc |
| N. Cylinders | 3 |
| Aspiration | Natural |
| Max Engine Power @3000 RPM | 25.0 HP |
| Max Engine Speed | 3000 RPM |
| Min Engine Speed | 1900 RPM |
| Cooling System | Water |
| Cooling System Capacity | 1.05 gal |
| Lubrication System | Oil |
| Lubrication System Capacity | l.35gal |
| Max Ambient Temperature | |
| Min Working Temperature | |
SERVICE+ SUPPORT
- 5-Year/Unlimited Hour Airend Warranty
- -Year/L.l-,000-Hour Kubota Engine warranty
- 1-Year/2000-Hour Full Machine Warranty
- Parts+ Service Help: 704-523-Ll-123 or [email protected]
