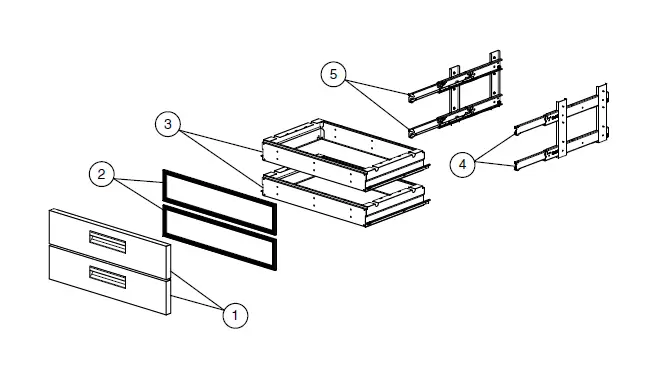

4 Drawer Assembly

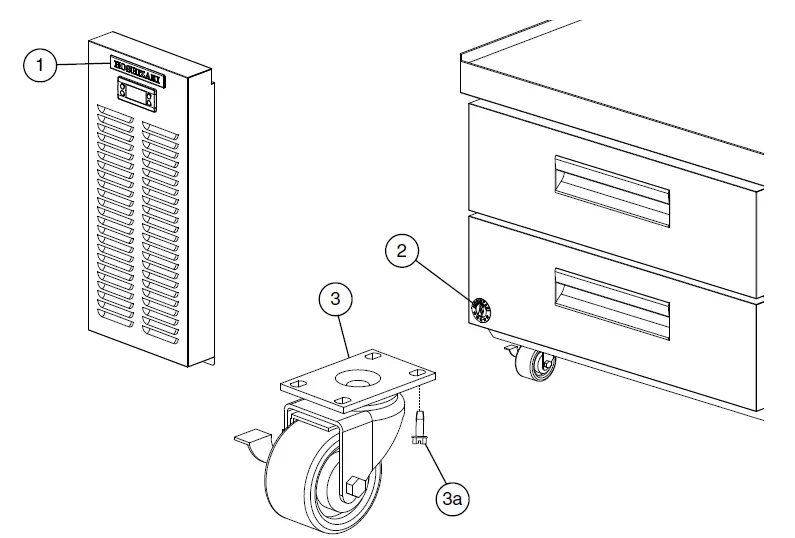

5 Accessories & Labels

6 Documents / Resources

6.1 References

7 Related Posts

HOSHIZAKI CR36A Refrigerated Equipment Stand

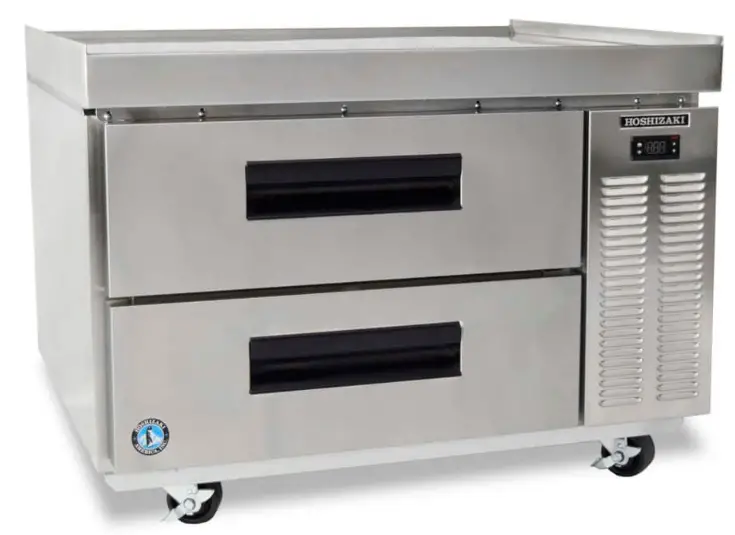

HOSHIZAKI-CR36A-Refrigerated-Equipment-Stand-product

Models
Refrigerated Equipment Stand CR36A

CR49A
CR60A
CR72A
CR85A
CR98A

Auxiliary Codes

CR36A
- H-6 November 2018
- J-5 January 2019
- J-6 October 2019
- K-5 January 2020
- K-7 September 2020
- L-5 January 2021
- L-6 October 2021
- M-5 February 2022
CR49A
- H-6 November 2018
- J-5 January 2019
- J-6 October 2019
- K-5 January 2020
- K-7 July 2020
- L-5 January 2021
- L-6 October 2021
- M-5 January 2022
CR60A
- H-6 December 2018
- J-5 January 2019
- J-6 September 2019
- K-5 January 2020
- K-7 July 2020
- L-5 January 2021
- L-6 September 2021
- L-7 December 2021
- M-5 January 2022
CR72A
- H-6 October 2018
- J-5 January 2019
- J-6 October 2019
- K-5 January 2020
- K-7 July 2020
- L-5 January 2021
- L-6 October 2021
- M-5 January 2022
CR85A
- H-6 November 2018
- J-5 January 2019
- J-6 November 2019
- K-5 January 2020
- K-6 June 2020
- K-7 July 2020
- L-5 January 2021
- L-6 October 2021
- M-5 January 2022
CR98A
- H-6 November 2018
- J-5 January 2019
- J-6 October 2019
- K-5 January 2020
- L-5 February 2021
- L-6 October 2021
- M-5 January 2022
CR110A
- J-5 January 2019
- L-5 May 2021
- L-6 September 2021

Auxiliary Code Breakdown

The auxiliary code is the first two characters in the serial number. The first character indicates the year. Years progress or regress in alphabetical order. The series runs from “A” through “V” and the letters “I” and “O” are skipped. The second character indicates significant part changes within a year. Base is “5” and this number advances for each change. In cases where there is a letter in parentheses, this designates the month. This is the last character in the serial number. The series runs from “(A)” through “(M)” and the letter “(I)” is skipped. This designation is only included when identifying a parts change within an auxiliary code.

Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally must be ordered separately.

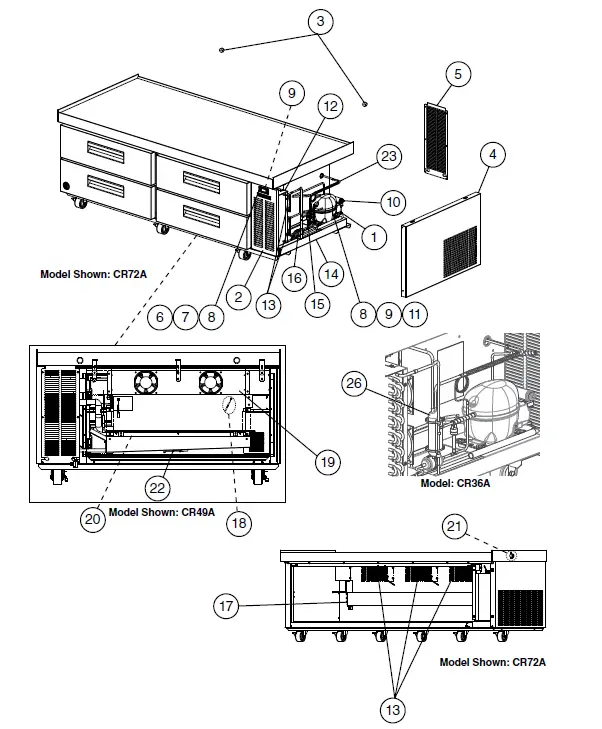

Main Assembly & Refrigeration Circuit

CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A H- 6 to M-5

Title: A. Main Assembly & Refrigeration Circuit Models: CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A
Index No.	Description	Material or Model Number	Part Number	Required Number
Index No.	Description	Material or Model Number	Part Number	H-5 to K-5	K-7 to L-5(G)	L-5(H) to L-5(M)	L-6 M-5
Main Assembly
1	Power Cord		4A5718-01	1	1	1	1
2	Front Panel	CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	2A8532-01	1	1	–
2	Front Panel	CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	2B0133-01			1	1
3	Bumper		3A6696-01	2	2	2	2
4	Right Side Panel		2A7682-01	1	1	1	1
5	Rear Louver Panel		3A8279-01	1	1	1	1
6	Control Module	CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	4A5915G01	1	1	–
6	Control Module	CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	4A7082-02			1	1
7	Gasket	CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	4A7127-01			1	1
8	Retainer Clip	CCR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	4A5502-01	2	2	–
8	Retainer Clip	CCR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	4A7085-01			2	2
9	Deflector		3A9649-01	1	1	1	1
10	Wire Harness	CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	4A6901-01		1	–
10	Wire Harness	CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A	4A7108-01			1	1

Refrigeration Circuit
10	Compressor (includes items 11 through 13)		3A9870-01	1	1	1	1
11	Compressor Overload		3A9475-01	1	1	1	1
12	Run Capacitor	12MFD 250V	3A9477-01	1	1	1	1
13	PTC Start Relay (8EA14C3 – 115-127V -3Term)		3A9476-01	1	1	1	1
14	Condenser		2A7544-01	1	1	1	1
15	Evaporator/Condenser Fan Motor	CR36A	4A5343-01	3	3	3	3
		CR49A CR60A		4	4	4	4
		CR72A CR85A CR98A CR110A		5	5	5	5
16	Condensate Pan		2A7315-01	1	1	1	1
17	High-Pressure Switch		4A6039-01	1	1	1	1
18	Drier		4A1113-01	1	1	1	1

Title: A. Main Assembly & Refrigeration Circuit Models: CR36A, CR49A, CR60A, CR72A, CR85A, CR98A, CR110A
Index No.	Description	Material or Model Number	Part Number	Required Number
Index No.	Description	Material or Model Number	Part Number	H-5 to K-5	K-7 to L-5(G)	L-5(H) to L-5(M)	L-6 M-5
19	Evaporator	CR36A	2A8513-01	1	1	1	1
		CR49A CR60A	2A8513-02	1	1	1	1
		CR72A CR85A CR98A CR110A	2A8513-04	1	1	1	1
20	Defrost Thermistor	CR36A, CR72A, CR85A,CR98A, CR110A	4A4865-03	1	1	–
		CR36A, CR72A, CR85A,CR98A, CR110A	4A7083-02			1	1
		CR49A, CR60A	4A4865-03	1	1	1	–
		CR49A, CR60A	4A7083-02				1
21	Defrost Thermistor Access Panel		4A5829-01	1	1	1	1
22	Defrost Heater	CR36A	3A6443-05	1	1	1	1
		CR49A CR60A	3A6443-04	1	1	1	1
		CR72A CR85A CR98A CR110A	3A6443-07	1	1	1	1
23	Defrost Safety Thermostat		4A0954-02	1	1	1	1
24	Cabinet Thermistor	CR36A, CR72A, CR85A,CR98A, CR110A	4A4864-02	1	1	–
		CR36A, CR72A, CR85A,CR98A, CR110A	4A7084-02			1	1
		CR49A, CR60A	4A4864-02	1	1	1	–
		CR49A, CR60A	4A7084-02				1
25	Heat Exchanger		3A8623G01	1	1	1	1
26	Accumulator	CR36A	4A6455-01	1	1	1	1
